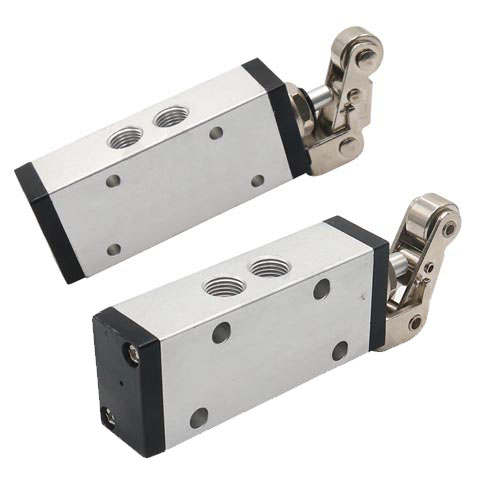

XQ Series Air Toggle Switch Toggle Valve 2 Position 5 Way

XQ Series Air Toggle Switch Toggle Valve 2 Position 5 Way

Name: XQ Series Air Toggle Switch Toggle Valve 2 Position 5 Way
Brand: NEU-MASTER
Rating: 5.0 (51 reviews)

●XQ Series Air Toggle Switch Toggle Valve
●Aluminum alloy valve body
●Two position Three way and Two position Five way
●Port size G1/8”,G1/4”
●Various actuator model for slection
●Compact design,Flexible application
●Air toggle switch, air toggle switch 1/8, air toggle switch 1/4, pneumatic toggle valve, air toggle switch valve

Model:
XQ Series Air Toggle Switch Toggle Valve
Brand:
NEU-MASTER
Code:
XQ250422/230622/230421/230412/230612

Availability:



Inquire Add to Basket

Product Description

XQ Series Air Toggle Switch Toggle Valve 2 Position 5 Way,2 Position 3 Way 1/8 Inch 1/4 Inch

●XQ Series Air Toggle Switch Toggle Valve

●Aluminum alloy valve body

●Two position Three way and Two position Five way

●Port size G1/8”,G1/4”

●Various actuator model for slection

●Compact design,Flexible application

●Air toggle switch, air toggle switch 1/8, air toggle switch 1/4, pneumatic toggle valve, air toggle switch valve

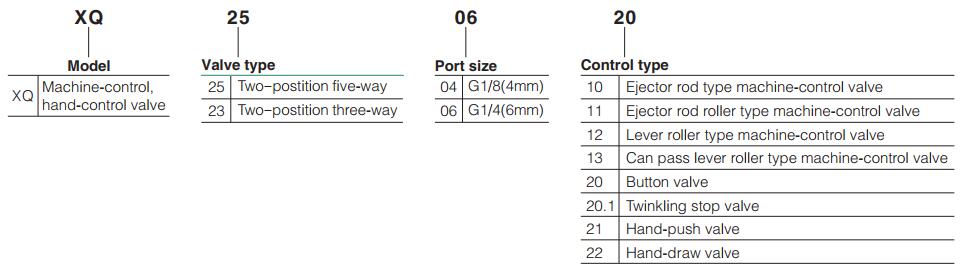

XQ Series Air Toggle Switch Toggle Valve Ordering Code:

Catalog: XQ Machine-control Hand Control Valve.pdf

XQ□□□□10: Ejector rod type air toggle switch valve

XQ□□□□11: Ejector rod roller type air toggle switch valve

XQ□□□□12: Lever roller type air toggle switch valve

XQ□□□□13: Can pass lever roller type air toggle switch valve

XQ□□□□20: Pneumatic push Button valve

XQ□□□□20.1: Twinkling stop air toggle switch valve

XQ□□□□21: Pneumatic hand push valve

XQ□□□□22: Hand draw valve

XQ Series Air Toggle Switch Toggle Valve

Air toggle switch	XQ2304□□	XQ2504□□	XQ2306□□	XQ2506□□
Medium	Compressed Air (Filtered By 40μm Filter Element)
Pipe Size	Inlet=Outlet=1/8"		Inlet=Outlet=1/4"
Valve Type	Two postion three-way	Two postion five-way	Two postion three-way	Two postion five-way
Pressure Range	0∽0.80Mpa ; Proof Pressure: 1.2Mpa
Lubrication	Not Required
Temperature	-5∽60℃
Orifice Size	14m㎡ CV=0.78		25m㎡ CV=1.39

PT thread ,G thread, NPT thread are available

Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the XQ air toggle switch valve ,delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Air toggle switch, air toggle switch 1/8, air toggle switch 1/4, pneumatic toggle valve, air toggle switch valveare for the air flow control.
