HSV Series Hand Slide Valve 2 Position 3 Way 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch 3/4 Inch 1 Inch ●HSV Series Hand Slide Valve 2 Position 3 Way ●There are several ways of internal and external thread connection ●Suitable for the application in the different pipeline systems ●The direction-change slides smoothly and has a good hand feeling ●There is a large effective circulating area ●The valve spool surface is treated with acid washing passivation, and the surface of the valve body is oxidized to keep the color for a long time HSV Series Hand Slide Valve Symbol:

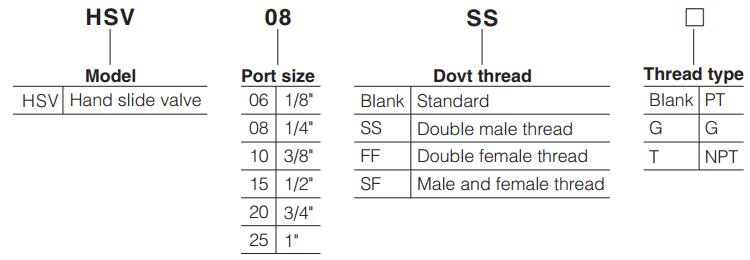

HSV Series Hand Slide Valve Ordering Code:
|
Catalog:  HSV Hand slide valve.pdf |
HSV Series Hand Slide Valve Parameter
| Hand Slide Valve | HSV-06 | HSV-08 | HSV-10 | HSV-15 | HSV-20 | HSV-25 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||||
| Operating Type | Manual Control -Direct Acting Type | |||||
| Orifice Size | 23.0m㎡ CV=1.28 | 40.0m㎡ CV=2.20 | 62.0m㎡ CV=3.50 | 140.0m㎡ CV=7.8 | 250.0m㎡ CV=13.8 | 392.0m㎡ CV=2178 |
| Pipe Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1/2" |
| Valve Type | Two postion three-way | |||||
| Pressure Range | 0∽1.0Mpa(0-145Psi) ; Proof Pressure: 1.5Mpa (215Psi) | |||||
| Lubrication | Not Required | |||||
| Temperature | -20∽70℃ | |||||
| Body Material | Aluminium Alloy | |||||
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the HSV Series Hand Slide Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: hand slide valve, hand slide valve 1/8", hand slide valve 1/4", hand slide valve 3/8", hand slide valve 1/2" are for the air flow control.
