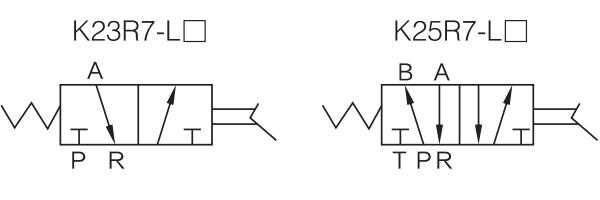

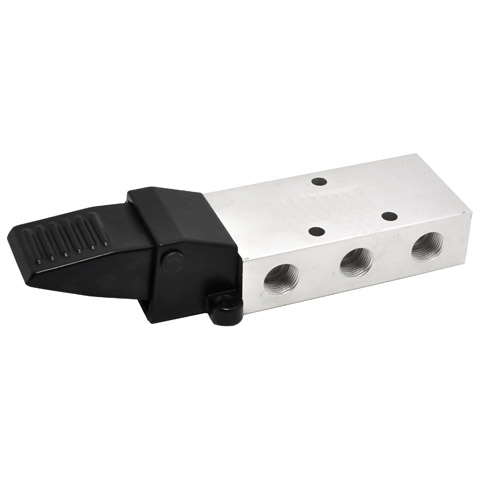

K Sereis Pneumatic Foot Switch Port Size 1/8" 1/4",5 Way 2 Position And 3 Way 2 Position ●K Series directional control pneumatic foot switch are 5-port or 3-port valves ●K Series pedal valve with 1/4",1/8" pipe size 5 way,two position or 3 way two position ●Ideal for non-electrical operator control applications. Steel valve body . ●Available in NPT, G,PT thread ●These air valve are also referred to as: Foot Pedal Valve, Foot Valve, Pedal Valve, Pneumatic Directional Control Manual Air Valves ect. K Sereis Pneumatic Foot Switch Symbol:

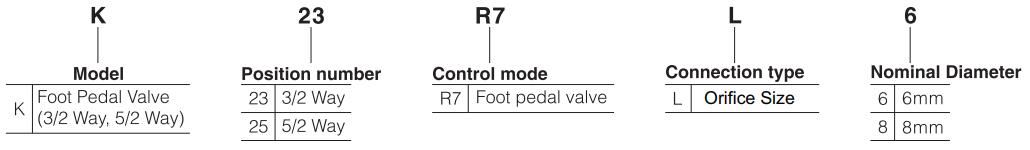

K Sereis Pneumatic Foot Switch Ordering Code:
|
Catalog:  K Foot Pedal Valve(3-2way;5-2way).pdf |
| Pneumatic Foot Switch Model | K23R7-L6 | K25R7-L6 | K23R7-L8 | K25R7-L8 |
| Nominal Diameter | 6mm | 8mm | ||
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
| Operating | Controlled by Foot, Directing Type | |||
| Pipe Size | 06:1/8"PT ; 08 1/4"PT | |||
| Pressure Range | 0.05∽0.85Mpa | |||
| Ambient Temperature | -5∽50℃ | |||
| Medium Temperature | -10∽55℃ | |||
| Lubrication | Not Required | |||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of theK Sereis Pneumatic Foot Switch ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: pneumatic foot switch, pneumatic foot switch 5/2way, pneumatic foot switch 3/2way, pneumatic foot switch 1/4", foot pedal valve are for the air flow control.
