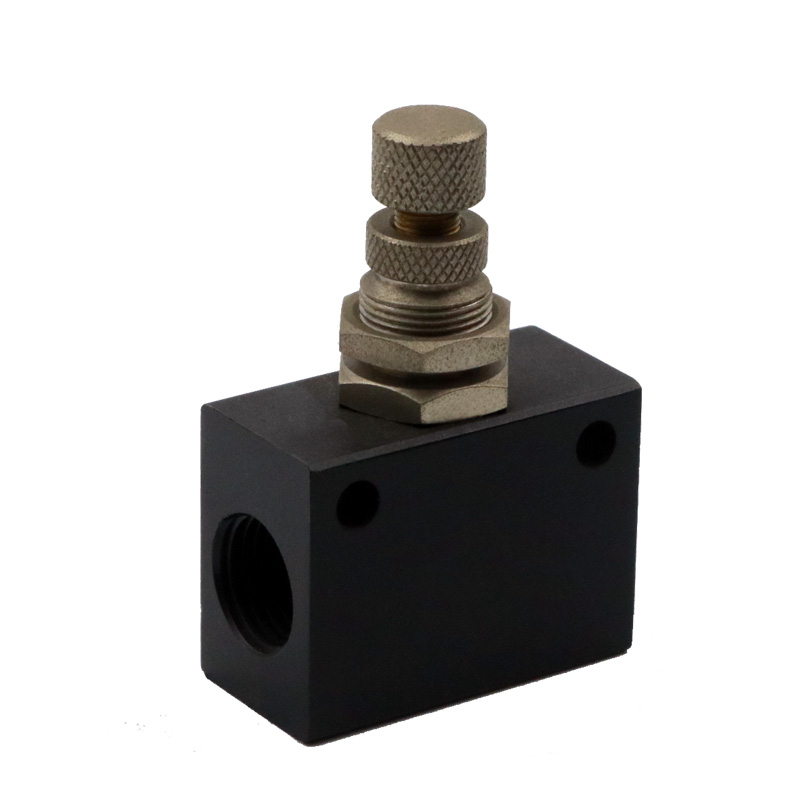

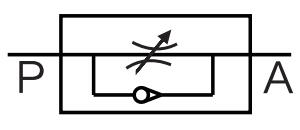

ASC Series Air Flow Control Valve 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch ●ASC Series air flow control throttle check valve ●Body Material Aluminum Alloy ●Port Size G1/8”,G1/4”,G3/8,G1/2” ●Compact design,small volume,light weight ●Easy operation,sensitive of Respond ●Flow direction one way type ASC Series Air Flow Control Valve Symbol:
ASC Series Air Flow Control Valve Ordering Code:
|
Catalog:  ASC Flow Control Valve.pdf |
Small and compact structure.
Allows air to exhaust and cut off air flow,the adjustment screw is both sensitive and precise
Can be mounted in various position to faciliate installation and application.
ASC Series Air Flow Control Valve Data Sheet
| Air Flow Control Valves | ASC100-06 | ASC200-08 | ASC300-10 | ASC300-15 | |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | ||||
| Pressure Range | 0.05∽0.95Mpa(7∽135Psi) ,Proof Pressure :1.5Mpa | ||||
| Temperature | -20∽70℃ | ||||
| Material Body | Aluminum Alloy | ||||
Flow (L/Min) | Control Flow | 200 | 450 | 1250 | 1650 |
| Free Flow | 400 | 800 | 1500 | 2500 | |
| Pipe Size | 1/8" | 1/4" | 3/8" | 1/2" | |
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the ASC Series air flow control Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air flow control valves, air flow control valve 1/8, air flow control valves 1/4, air flow control valves 3/8, air flow control valves 1/2 are for the air flow control.
