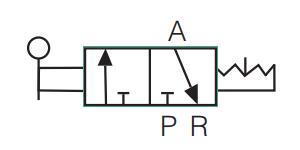

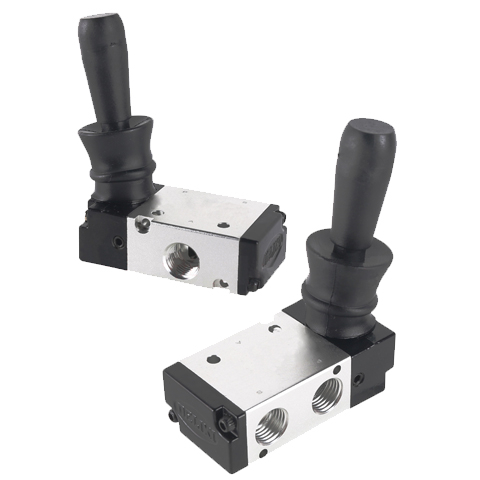

3H Pneumatic hand lever valve 1/8" 1/4" 3/8" 1/2" 3 Way 2 Position ●Instead of Airtac hand lever valve for pneumatic directional control. ●3-port (3-way), 2-position, optional manifold mounting. ●1/8 inch to 1/2” NPT ports, CV=0.78 to CV=2.79 toggle style lever ●Hand lever operation, smooth actuation, and exact and reliable orientation. ●Sliding column structure has good tightness and light weight and is easy to install and dismount. ●Internal hole adopts special processing technology, long service life. ●No need to add oil for lubrication.Once lubricated air is used,please ISOVG32 lubricant or same grade. ●PT thread ,NPT thread,and G thread are available. 3H Pneumatic hand lever valve Symbol:

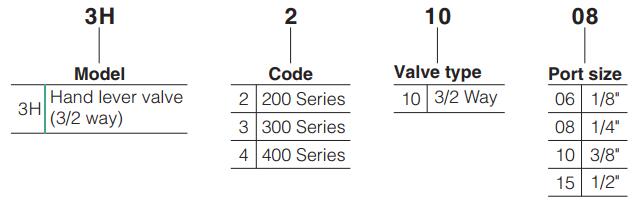

3H Pneumatic hand lever valve Ordering Code:
|
Catalog:  3H Manual Control Hand Lever Valve.pdf |
3H Pneumatic hand lever valve Parameter:
| Pneumatic Foot Switch Model | 3H210-06 | 3H210-08 | 3H310-08 | 3H310-10 | 3H310-15 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | ||||
| Operating | Manual Control;Direct acting type | ||||
| Pipe Size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Orifice Size | 14.00m㎡ Cv=0.78 | 16.00m㎡ Cv=0.89 | 25.00m㎡ Cv=1.39 | 30.00m㎡ Cv=1.67 | 50.00m㎡ Cv=2.79 |
| Valve Type | 3/2 Way | ||||
| Lubrication | Not Required | ||||
| Pressure Range | 0∽1.0Mpa(0∽145Psi) | ||||
| Proof Pressure | 1.2Mpa(170Psi) | ||||
| Temperature | -20∽70℃ | ||||
| Body Material | Aluminum Alloy | ||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Hand lever valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:hand lever valve, hand lever valve 3/2way, hand lever valve 1/8, hand lever valve 1/4, hand lever valve 3/8 are for the air flow control.
