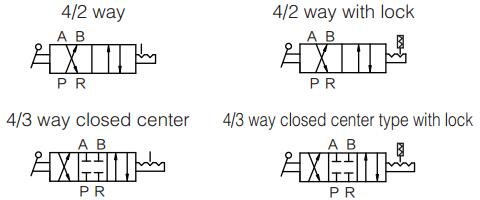

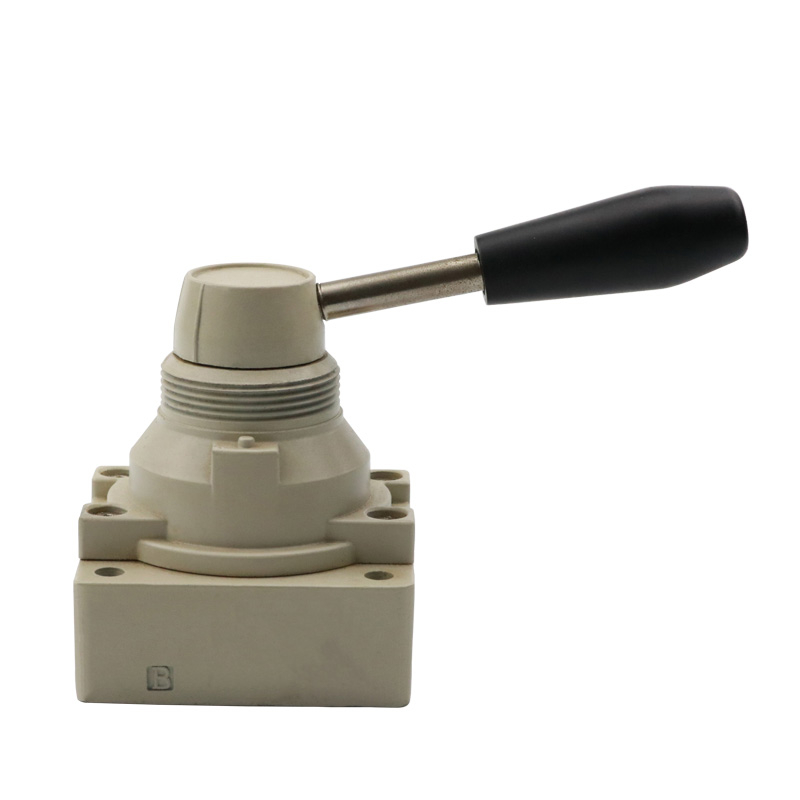

4HV/4HVL Rotary Manual Operated Valve Hand Lever Valve 1/4"-3/4" Pipe Size 4/2 Way 4/3 Way ●4HV series of manual operated valve, rotary style pneumatic directional control valve is manual operated. ●Available in 4/2 way or 4/3 way. Choose from multiple port sizes and thread types. ●4/3-way hand lever valve has three central functions for your choice ●The direction change turns lightly with good hand feeling and exact orientation ●Large effective circulating area leads to little pressure loss ●Panel and body installation are optional. The panel installation can be attached with installing nut. 4HV/4HVL Manual Operated Valve Symbol:

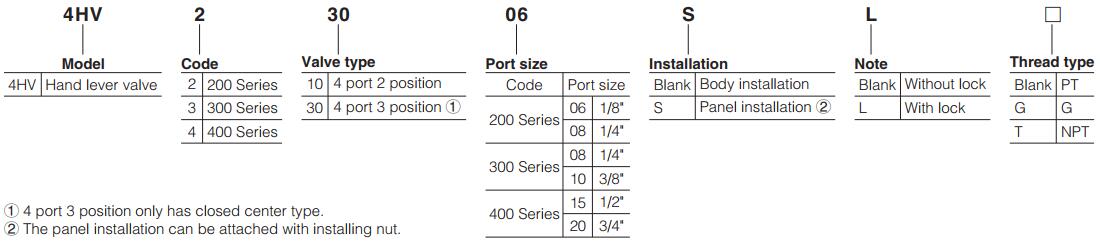

4HV/4HVL Manual Operated Valve Code:
|
Catalog:  4HV-4HVL-Manual Control Hand Lever Valve.pdf |
1.The direction-change turns lightly with good hand feeling and exact orientation
2.Large eficetive circulating area leads to little pressure loss.
3.Panel and body installation are optional,the panel installation can be attached with installing nut
4.PT thread ,G thread, NPT thread are available
5.Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade.
4HV/4HVL Manual Operated Valve Parameter:
| 4HV Manual Operated Valve | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||||
| Operating | Manual Operated;Direct acting type | |||||
| Pipe Size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | 3/4" |
| Orifice Size | 14m㎡ Cv=0.78 | 16m㎡ Cv=0.89 | 30m㎡ Cv=1.67 | 33m㎡ Cv=1.83 | 88.m㎡ Cv=4.89 | 95m㎡ Cv=5.27 |
| Valve Type | 4/2 Way;4/3 Way | |||||
| Lubrication | Not Required | |||||
| Temperature | -20∽70℃ | |||||
| Pressure Range | 0∽1.0Mpa | |||||
| Proof Pressure | 1.5Mpa(215Psi) | |||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the 4HV series of manual operated valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Manual Pneumatic Valve, Manual Pneumatic Valve 4/2way, Manual Pneumatic Valve 4/3way, Manual Pneumatic Valve 1/4", manual pneumatic valve are for the air flow control.
