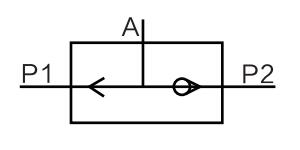

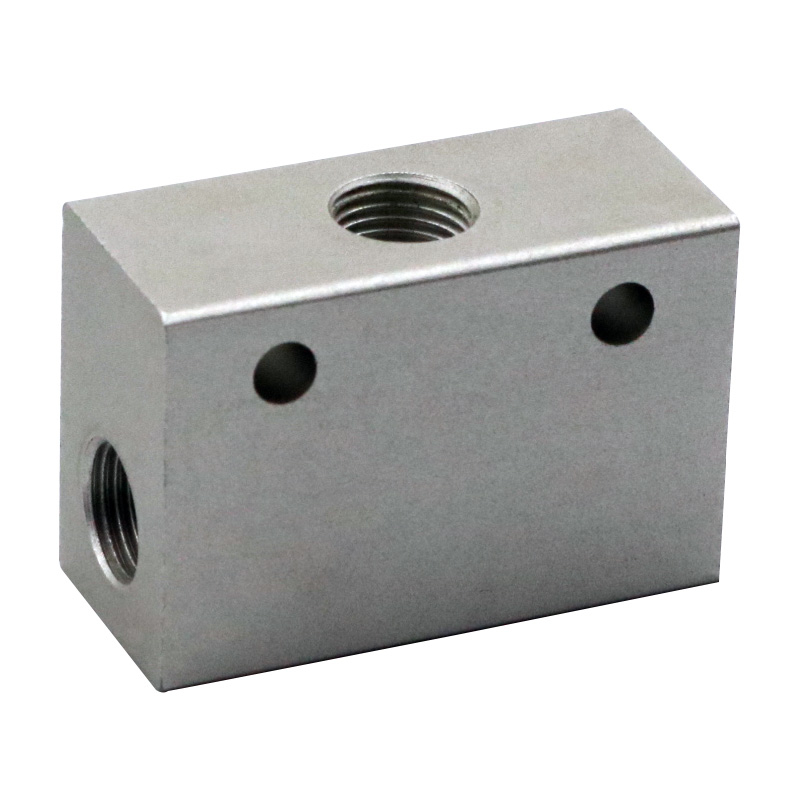

T Series Pneumatic Shuttle Valve 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch 3/4 Inch 1 Inch Pneumatic Shuttle Valve has three connecting ports: two pressure ports (P1 & P2), one on each end of the valve, and an outlet port (A) on the top of the valve. An internal check valve piston moves freely between the two ends of the valve. When air pressure is applied to one of the pressure ports (e.g., P1), it pushes the piston towards the opposite end of the valve. This prevents the air from exiting through the opposite pressure port (e.g., P2), but allows air to flow through the outlet port (A). The Shuttle Air Valve is designed to allow two different air pressure sources (P1 & P2) to be alternately shuttled to a single outlet (A), while preventing back flow from one pressure source to the other. ST Series Pneumatic Shuttle Valve Symbol:

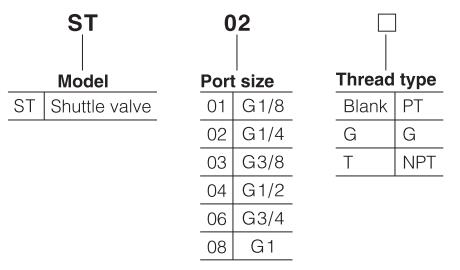

ST Series Pneumatic Shuttle Valve Ordering Code:
|
Catalog:  ST Shuttle Valve.pdf |
ST Series Pneumatic Shuttle Valve Parameter
| Shuttle Valve | ST-01 | ST-02 | ST-03 | ST-04 | ST-06 | ST-08 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||||
| Orifice Size | 7.5m㎡ | 21m㎡ | 40m㎡ | 60m㎡ | 110m㎡ | 190m㎡ |
| Pipe Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1/2" |
| Pressure Range | 0∽0.95Mpa(0-135Psi) ; Proof Pressure: 1.5Mpa (215Psi) | |||||
| Temperature | -5∽60℃(28∽140°F) | |||||
| Body Material | Aluminium Alloy | |||||
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the ST Series Pneumatic Shuttle Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Pneumatic shuttle valve, pneumatic shuttle valve 1/8", pneumatic shuttle valve 1/4", pneumatic shuttle valve 3/8", pneumatic shuttle valve 1/2" are for the air flow control.
