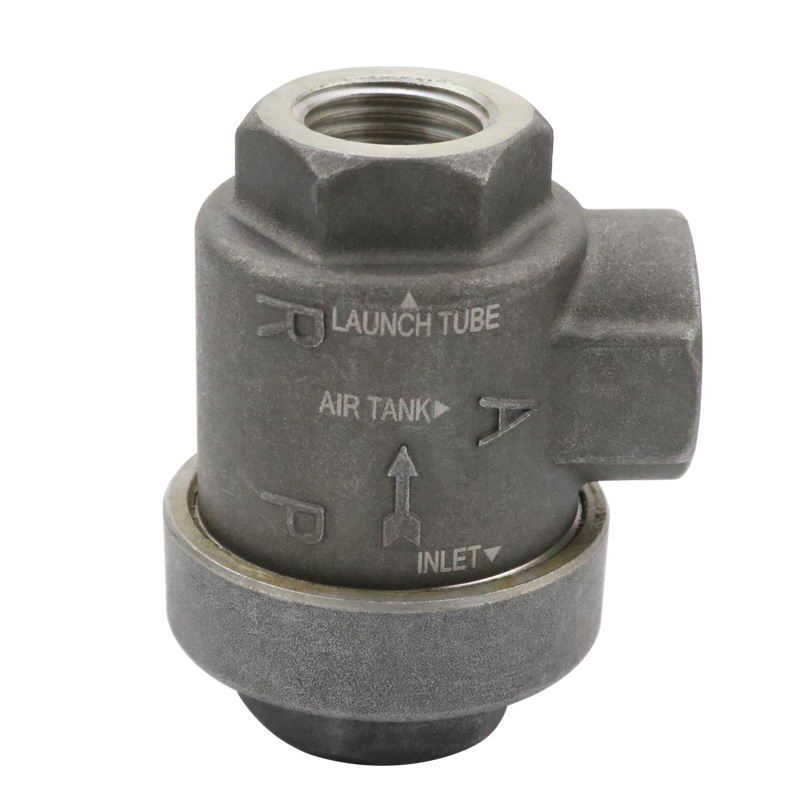

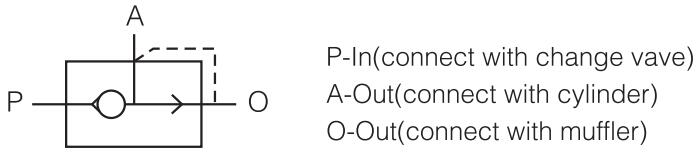

XQ Pneumatic Air Exhaust Valve 1/4 3/8 1/2 Inch ●XQ Pneumatic Air Quick Exhaust Valve ●Quick exhaust valve: XQ series，use for control the air direction of the air system. ●Port size: 1/8", 1/4", 3/8", 1/2", 3/4". ●XQ Pneumatic Air Exhaust Valve usually used between air cylinder and directional control valve. ●It makes sure the air do not flow back to the directional control valve, ●The air can exhaust by the quick exhaust valve. It can help the cylinder work very quickly. XQ Pneumatic Quick Exhaust Valve Symbol:
XQ Pneumatic Quick Exhaust Valve Ordering Code:
|
Catalog:  XQ-AQ Series Quick Exhuast Valve.pdf |
1. It is a one-way directional control element, it is applied to places where the quick movement of air cylinder is required.
2. Normally installed between the air cylinder and direction valve, making the air in the cylinder escape directly through this valve not through change valve.
QE Pneumatic Quick Exhaust Valve
| Quick Exhaust Valve | XQ0600 | XQ0600 | XQ1000 | XQ1500 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
| Pipe Size | 1/8" | 1/4" | 3/8" | 1/2" |
| Flow (Stere) | ≥0.5 | ≥0.9 | ≥2.5 | ≥4.5 |
| Orifice Size | 6 | 8 | 10 | 15 |
Environment and liquid temperature(°C) | 5-60 | Wear-Resistance Valve Core | -30∽60 | Low Temperature-Resistance Valve Core |
| Durable (Million times) | ≥200 | Wear-Resistance Valve Core | ≥100 | Low Temperature-Resistance Valve Core |
| Lubrication | Not Required | |||
| Temperature | 5∽60℃(28∽140°F) | |||
| Commutation time(s) | ≤0.01 | ≤0.03 | ≤0.04 | ≤0.05 |
| Pressure Range | 0.2∽1.0 Mpa(0∽135Psi) ;Proof Pressure 1.5Mpa | |||
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the XQ Pneumatic Air Quick Exhaust valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air exhaust valve, air exhaust valve 1/4, air exhaust valve 38, air exhaust valve 1/2, pneumatic quick exhaust valve are for the air flow control.
