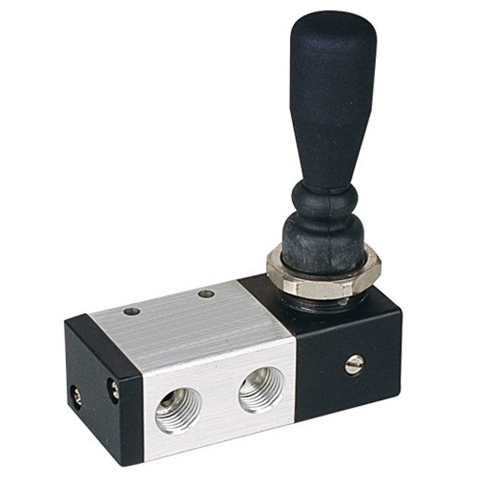

TSV Pneumatic manual air valve hand lever valve

TSV Pneumatic manual air valve hand lever valve

Name: TSV Pneumatic manual air valve hand lever valve
Brand: NEU-MASTER
Rating: 5.0 (6 reviews)

●TSV series Hand Lever Valve Metalwork interchangeable
● Aluminum Alloy Material
●Two Position Three Way,Two Position Five Way
●Port Size G1/4,G1/8
● With spring return for option
●Enlarged safety area,keep from any leakage effective
●Smooth stroke travelling,sensitive respond action
●Easy to operate,Long service life

Model:
TSV Pneumatic manual air valve
Brand:
NEU-MASTER
Code:
TSV86522/TSV98322

Availability:



Inquire Add to Basket

Product Description

TSV Pneumatic manual air valve hand lever valve 1/4" Pipe Size 3/2 Way 5/2 Way

●TSV series Hand Lever Valve Metalwork interchangeable

● Aluminum Alloy Material

●Two Position Three Way,Two Position Five Way

●Port Size G1/4,G1/8

● With spring return for option

●Enlarged safety area,keep from any leakage effective

●Smooth stroke travelling,sensitive respond action

●Easy to operate,Long service life

TSV Pneumatic manual air valve Symbol:

TSV Pneumatic manual air valve Symbol

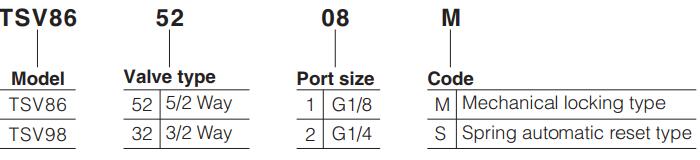

TSV Pneumatic manual air valve Code:

TSV Pneumatic manual air valve ordering code

Catalog: TVS Manual Control Hand Lever Valve.pdf

TSV86521-M Pneumatic manual air valve lock Port 1/8" BSP;

TSV86521-S Pneumatic manual air valve Spring loaded return Port 1/8" BSP;

TSV86522-M Pneumatic manual air valve Mechanical lock Port 1/4" BSP;

TSV86522-S Pneumatic manual air valve Spring loaded return Port 1/4" BSP;

TSV98321-M Pneumatic manual air valve lock Port 1/8" BSP;

TSV98321-S Pneumatic manual air valve Spring loaded return Port 1/8" BSP;

TSV98322-M Pneumatic manual air valve Mechanical lock Port 1/4" BSP;

TSV98322-S Pneumatic manual air valve Spring loaded return Port 1/4" BSP;

PT thread ,G thread, NPT thread are available

Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade.

TSV Pneumatic manual air valve Parameter:

TSV Pneumatic manual air valve	TSV86522	TSV98322
Medium	Compressed Air (Filtered By 40μm Filter Element)
Operating	Manual Control;Direct acting type
Pipe Size	1/4"
Orifice Size	18.00m㎡ Cv=1.00
Valve Type	5/2 Way	3/2 Way
Lubrication	Not Required
Pressure Range	0∽1.0Mpa(0∽145Psi)
Proof Pressure	1.5Mpa(170Psi)
Temperature	-20∽70℃
Body Material	Aluminum Alloy

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the TSV Pneumatic manual air valve ,delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Manual air valve, Manual air valve 3/2 way, Manual air valve 5/2 way, Manual air valve 1/4, Hand lever valve are for the air flow control.
