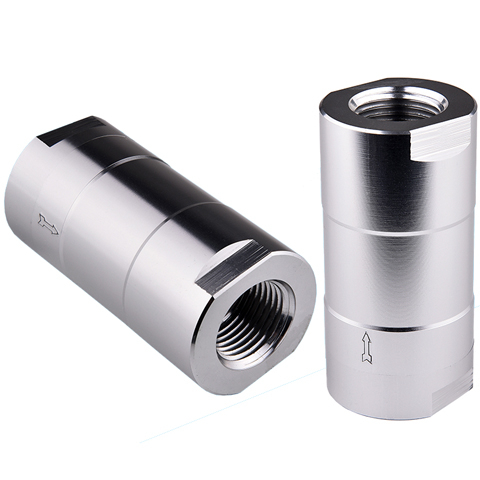

KA Series Non Return Air Valve 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch 3/4 Inch 1 Inch

Share to:
sharethis sharing button
●The KA series check valve is Non Return Air control element.
●When passing the valve, the working medium can only flow along a given direction.
●In operation, when the medium pressure direction changes, the valve functions to stop the return of the medium in the
system.
●Different thread types can be offered according to customers'requirements, e.g.: PT, NPT etc.
  • ST Series Pneumatic Shuttle Valve

  • NEU-MASTER

  • ST-01/02/03/04/06/08

Availability:

KA Series Non Return Air Valve 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch 3/4 Inch 1 Inch


●The KA series check valve is Non Return Air control element.

●When passing the valve, the working medium can only flow along a given direction.

●In operation, when the medium pressure direction changes, the valve functions to stop the return of the

 medium in the system.

●Different thread types can be offered according to customers'requirements, e.g.: PT, NPT etc.

●Pressure Range】 0.15∽0.80Mpa(21∽114Psi)



KA Non Return Air Valve Symbol:

KA Non Return Air Valve Symbol

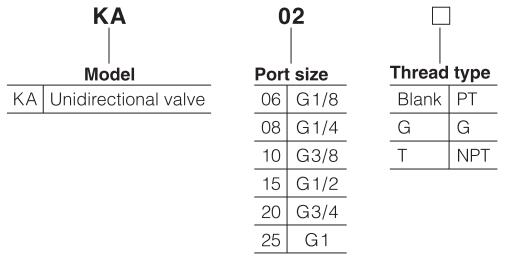

KA Non Return Air Valve Ordering Code:

KA Non Return Air Valve ordering code


Catalog: KA Check Valve.pdf


KA Non Return Air Valve Parameter

Non Return Air Valve KA-06 KA-08 KA-10 KA-15 KA-20 KA-25
Medium Compressed Air (Filtered By 40μm Filter Element)
Pipe Size 1/8" 1/4" 3/8" 1/2" 3/4" 1/2"
Pressure Range 0.15∽0.80Mpa(21114Psi) ; Proof Pressure: 1.5Mpa (215Psi)
Temperature -20∽70℃
Body Material Aluminium Alloy

PT thread ,G thread, NPT thread are available

Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the KA Non Return Air Valve ,delivery time ?

Normally we keep some stock  , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note:Non return air valve, non return air valve 1/8", non return air valve 1/4", non return air valve 3/8", non return air valve 1/2" are for the air flow control.
