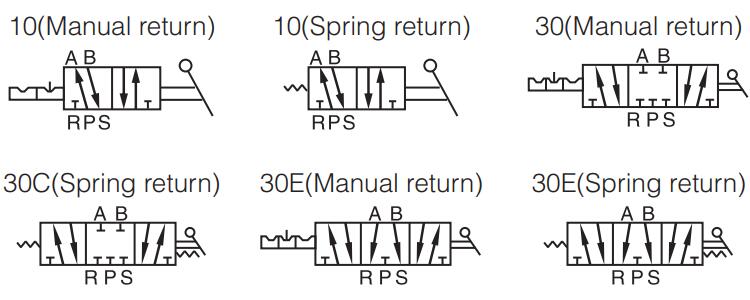

4H Pneumatic Manual Control Valve 1/8" 1/4" 3/8" 3/2Way 5/2Way ●Manual control valve, smooth actuation, and exact and reliable orientation. ●Sliding column structure has good tightness and light weight and is easy to install and dismount. ●Internal hole adopts special processing technology which has little attrition friction, long service life. ●No need to add oil for lubrication. ●Panel-mounting makes it convenient to install and apply.Instead of Airtac hand lever valve for pneumatic directional control. 4H Pneumatic Manual Control Valve Symbol:
4H Pneumatic Manual Control Valve Ordering Code:
|
Catalog:  4H Manual Control Hand Lever Valve.pdf |
4H Pneumatic Manual Control Valve Parameter:
| Model | 4H210-06 | 4H230-06 | 4H210-08 | 4H230-08 | 4H310-08 | 4H330-08 | 4H310-10 | 4H330-10 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||||||
| Operating | Manual Control; Direct acting type | |||||||
| Pipe Size | In=Out=Exhaust=1/8" | In=Out=1/4" Exhaust=1/8" | In=Out=Exhaust=1/4" | In=Out=3/8" Exhaust=1/4" | ||||
| Orifice Size | 14.00m㎡ Cv=0.78 | 12.00m㎡ Cv=0.67 | 16.00m㎡ Cv=0.89 | 12.00m㎡ Cv=0.67 | 25.00m㎡ Cv=1.39 | 18.00m㎡ Cv=1.00 | 30.00m㎡ Cv=1.67 | 18.00m㎡ Cv=1.00 |
| Valve Type | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way | 5/2 Way | 5/3 Way |
| Lubrication | Not Required | |||||||
| Pressure Range | 0∽1.0Mpa(0∽145Psi) | |||||||
| Proof Pressure | 1.5Mpa(170Psi) | |||||||
| Temperature | -20∽70℃ | |||||||
| Body Material | Aluminum Alloy | |||||||
| Operating Angle | ±15° | ±8.5° | ±15° | ±8.5° | ±18° | ±10° | ±18° | ±10° |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Hand lever valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Manual Control Valve, Manual Control Valve 5/2way, Manual Control Valve 5/3way, Manual Control Valve 1/8, Manual Control Valve 1/4 are for the air flow control.
