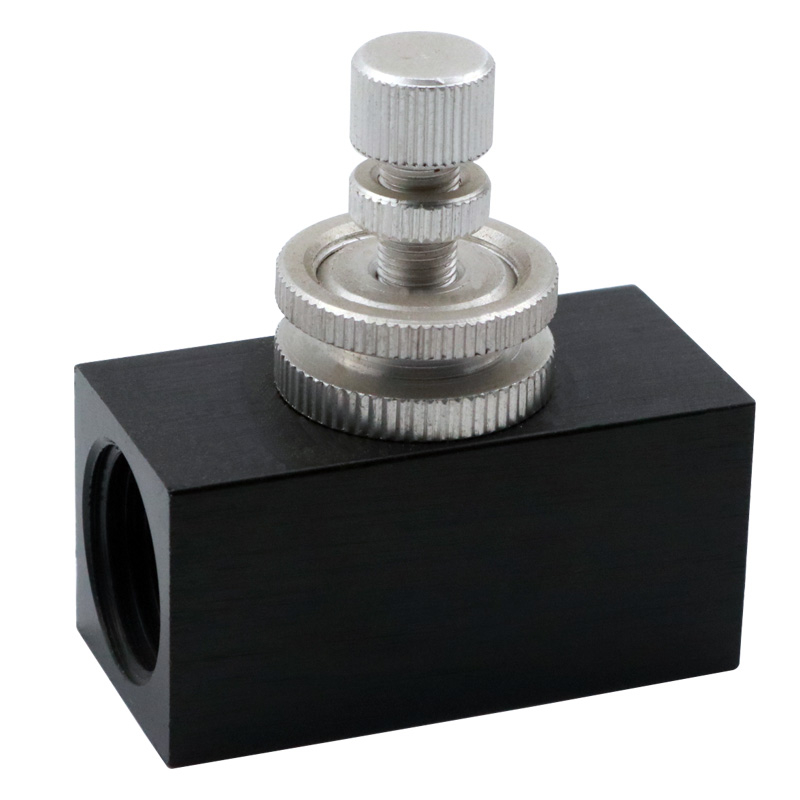

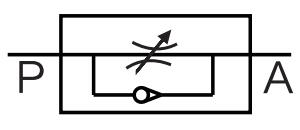

RE Series Pneumatic Flow Control Valve 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch ●RE Pneumatic Flow Control Valve Used to control the air to one direction of air system, then adjust the air flow speed. ●Used in various fields, such as vehicle assembly line, electronics, machine tool. ●Air flow control valve, in line air flow valve, Straight air flow valve, Pneumatic flow control valve of accurate type, precision type, standard type and ordinary type ●Pipe Size :RE-01:1/8" RE-02:1/4" RE-03:3/8" RE-04:1/2" ●Pressure Range:0∽0.95Mpa RE Pneumatic Flow Control Valve Symbol:

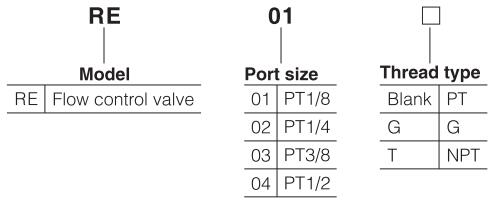

RE Pneumatic Flow Control Valve Ordering Code:
|
| Pneumatic Flow Control Valves | RE-01 | RE-02 | RE-03 | RE-04 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
| Pressure Range | 0∽0.95Mpa(0∽135Psi) | |||
| Temperature | -5∽60℃ | |||
| Pipe Size | 1/8" | 1/4" | 3/8" | 1/2" |
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the RE Pneumatic Flow Control Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: pneumatic flow control valve, pneumatic flow control valve 1/8, pneumatic flow control valve 1/4, pneumatic flow control valve 3/8, pneumatic flow control valve 1/2 are for the air flow control.
