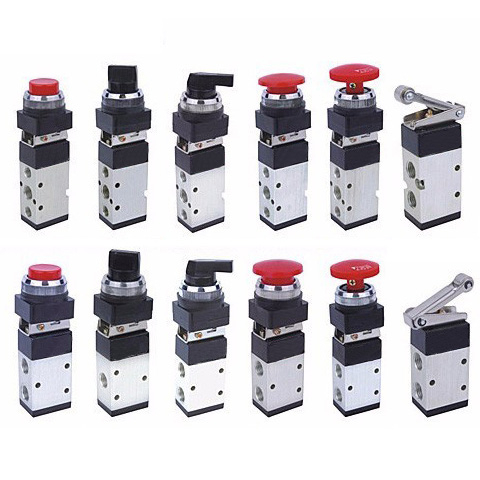

MSV Series Pneumatic Mechanical Valve

Name: MSV Series Pneumatic Mechanical Valve
Brand: NEU-MASTER
Rating: 5.0 (52 reviews)

●MSV series pneumatic mechanical valve
●Aluminum alloy valve body
●Two position Three way and Two position Five way
●Port size G1/8”,G1/4”
●Various actuator model for slection
●Compact design,Flexible application
●Pneumatic Valve, Mechanical valve,Machine control valve

Model:
MSV Pneumatic Mechanical Valve
Brand:
NEU-MASTER
Code:
MSV86522/98322

Availability:



Inquire Add to Basket

Product Description

MSV Series Pneumatic Mechanical Valve 2 Position 5 Way,2 Position 3 Way

●MSV series pneumatic mechanical valve

●Aluminum alloy valve body

●Two position Three way and Two position Five way

●Port size G1/8”,G1/4”

●Various actuator model for slection

●Compact design,Flexible application

●Pneumatic Valve, Mechanical valve,Machine control valve

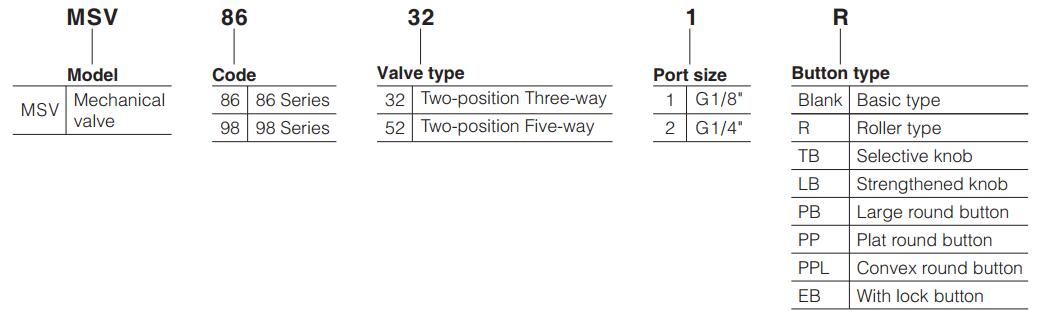

MSV Pneumatic Mechanical Valve Ordering Code:

MSV Pneumatic mechanical valve ordering code

Catalog: MSV Series Mechanical valve.pdf

MSV86522EB: Pneumatic push button mechanical valve with lock 5/2 way

MSV86522LB: Pneumatic push button mechanical valve strengthened knob 5/2 way

MSV86522TB: Pneumatic mechanical valve selective knob 5/2 way

MSV86522PP: Pneumatic plat round push button mechanical valve 5/2 way

MSV86522PPL: Pneumatic convex push button mechanical valve 5/2 way

MSV86522PB: Pneumatic large round button mechanical valve 5/2 way

MSV86522R: Pneumatic roller type mechanical valve 5/2 way

MSV98322EB: Pneumatic push button mechanical valve with lock 3/2 way

MSV98322LB: Pneumatic push button mechanical valve strengthened knob 3/2 way

MSV98322TB: Pneumatic mechanical valve selective knob 3/2 way

MSV98322PP: Pneumatic plat round push button mechanical valve 3/2 way

MSV98322PPL: Pneumatic convex push button mechanical valve 3/2 way

MSV98322PB: Pneumatic large round button mechanical valve 3/2 way

MSV98322R: Pneumatic roller type mechanical valve 3/2 way

MOV Mechanical Valve

Pneumatic Mechanical Valves	MSV86521	MSV86522	MSV98322
Medium	Compressed Air (Filtered By 40μm Filter Element)
Valve Type	5/2 Way	5/2 Way	3/2 Way
Pressure Range	0∽0.80Mpa	0∽0.80Mpa	0∽0.80Mpa
Lubrication	Not Required
Temperature	0∽60℃
Orifice Size	12m㎡ CV=0.67	16m㎡ CV=0.89	16m㎡ CV=0.89
Pipe Size	1/8"	1/4"	1/4"

PT thread ,G thread, NPT thread are available

Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the MSV Series Pneumatic Mechanical Valve ,delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Pneumatic Mechanical Valve, Pneumatic Mechanical Valve 1/4, Pneumatic Mechanical Valve 3/2way, mechanical air valve, mechanical pneumatic valve are for the air flow control.
