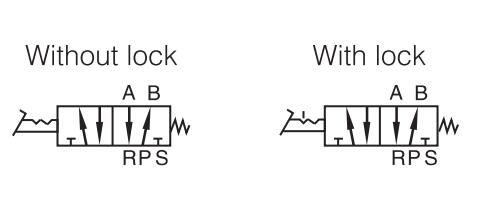

4F210 Pneumatic Foot Pedal Valve Port Size 1/4" with Lock And Protective Guard 5/2way ●4F210 Series directional control foot pedal valves are 5-port valves ●4F210 Series pedal valve 1/4 pipe size 5 way,two position ●4F210 pedal valve with protective guard and lock ●Ideal for non-electrical operator control applications. Steel valve body . ●Available in NPT, G,PT thread ●These air valve are also referred to as: Foot Pedal Valve, Foot Valve, Pedal Valve, Pneumatic Directional Control Manual Air Valves ect. 4F210 Series Foot Pedal Valve Symbol:

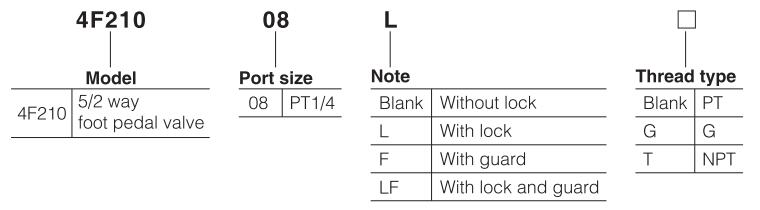

FV Series Foot Pedal Valve Ordering Code:
|
Catalog:  4F Foot Pedal Valve(5-2way).pdf |
Prodcut Feature :
1.The aluminum foot pedal is designed with direct acting which is steady and reliable.
2. If the duration time of the direction-changing is long, the valve with lock should be selected.3. The clamping framework is steady and reliable that it is easy and quick to unlock . However , with the limitation of the dimension of the structure, it can not bear frequent strong impact.
4. Plastic protective guard with high strength may be selected
Pneumatic Foot Pedal Valve Parameter:
| Foot Pedal Valve Model | 4F210-08 | 4F210-08L | 4F210-08F | 4F210-FL |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
| Operating | Controlled by Foot, Directing Type | |||
| Pipe Size | 08:1/4"PT | |||
| Valve Type | 5/2Way | |||
| Pressure Range | 0∽1Mpa(0∽145Psi) | |||
| Proof Pressure | 1.5Mpa (215Psi) | |||
| Temperature | -20∽70℃ | |||
| Body Material | Aluminium Alloy | |||
| Lubrication | Not Required | |||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Foot Pedal Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: pedal valve, pedal valve 1/4, pedal valve with guard, pedal valve with lock, foot Pedal valve are for the air flow control.
