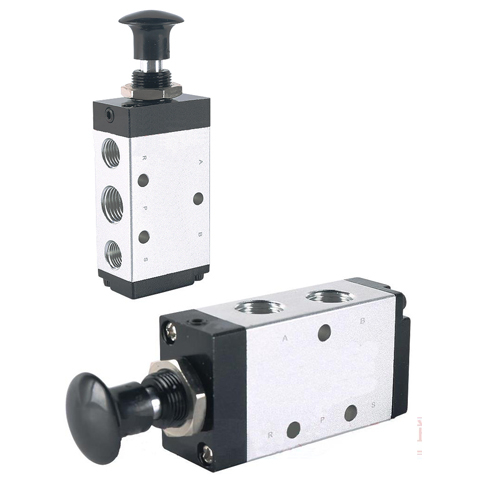

4R Manual Operated Push Valve 1/8" 1/4" 3/8" Pipe Size 5/2 Way ●2/5 pneumatic hand push valve 4R series for 5 port ●4R Series pneumatic hand push valve for pneumatic directional control, ●5 Port Hand Valve, 2-position, spring return spool valve with aluminum body ●1/8 inch,1/4inch, 3/8 inch NPT,G,PT female ports, ●Push Valves 5Port: 4R110-M5,4R110-06,4R210-06,4R210-08,4R310-08,4R310-10,4R410-15 4R Push Valve Symbol:

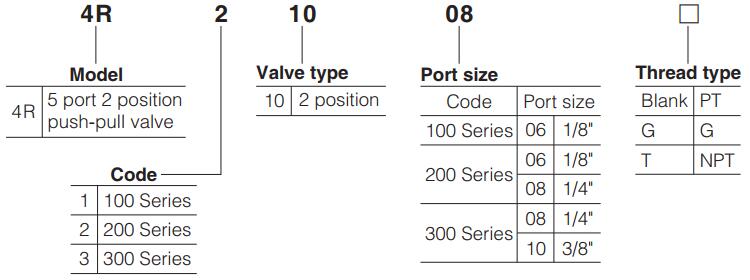

4R Push Valve Ordering Code:
|
Catalog:  4R Push-Pull Valve.pdf |
1.Internally pioted structure.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low statt pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional
4R Push Valve Parameter:
| 4R Push Valve | 4R110-06 | 4R210-06 | 4R210-08 | 4R310-08 | 4R310-10 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | ||||
| Operating | Manual Operated;Direct acting type | ||||
| Pipe Size | 1/8" | 1/4" | 3/8" | ||
| Orifice Size | 12m㎡ Cv=0.67 | 14m㎡ Cv=0.78 | 16m㎡ Cv=0.89 | 25m㎡ Cv=1.39 | 30m㎡ Cv=1.67 |
| Valve Type | 5/2 Way Aluminium Alloy Body | ||||
| Lubrication | Not Required | ||||
| Temperature | -20∽70℃ | ||||
| Pressure Range | 0∽1.0Mpa | ||||
| Proof Pressure | 1.5Mpa(215Psi) | ||||
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the 4R Push Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Push Valve, Push Valve 5/2way, Push Valve 1/8, Push Valve 1/4, Push Valve 3/8 are for the air flow control.
