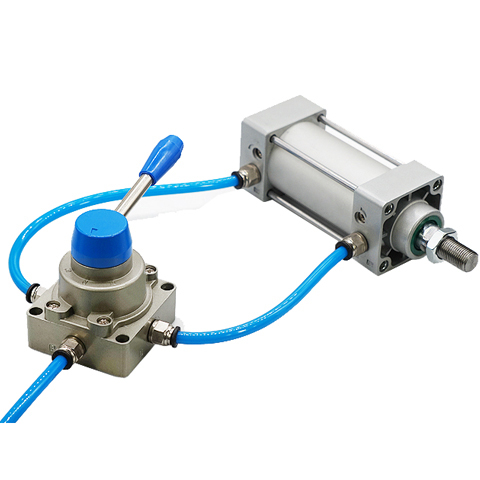

HV Manual Pneumatic Valve Hand Lever Valve 1/4" Pipe Size 4/2 Way 4/3 Way ●Product Name : Manual Pneumatic Valve HV Series ●Working Medium : Filter compress air filtered by 40um filter element ●Type :3 Position 4 Way; 2 Position 3 Way ;Port Size : G1/4-G1/2" ●Installing Hole Diameter : 6mm/0.2;Material : Plastic, Metal;Color : Black, Gold Tone HV Manual Pneumatic Valve Symbol:

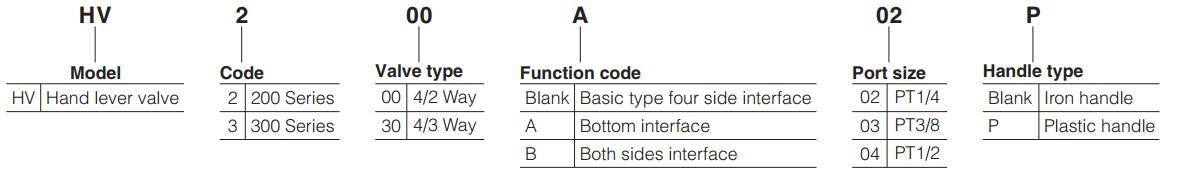

HV Manual Pneumatic Valve Code:
|
Catalog:  HV Manual Control Hand Lever Valve.pdf |
PT thread ,G thread, NPT thread are available
Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade.
HV Manual Pneumatic Valve Parameter:
| HV Manual Pneumatic Valve | HV200A-02 | HV230A-02 | HV200B-02 | HV230B-02 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||
| Operating | Manual Control;Direct acting type | |||
| Pipe Size | In=Out=PT1/4" | |||
| Pressure Range | 0.15∽0.8Mpa(21∽114Psi ) | |||
| Valve Type | 4/2 Way | 4/3 Way | 4/2 Way | 4/3 Way |
| Lubrication | Not Required | |||
| Temperature | -10∽60℃ | |||
| Proof Pressure | 1.5Mpa(215Psi) | |||
| HV Manual Pneumatic Valve | HV300-02 | HV330-02 | HV300-03 | HV330-03 | HV300-04 | HV330-05 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |||||
| Operating | Manual Control;Direct acting type | |||||
| Pipe Size | 1/4" | 1/4" | 3/8 | 3/8 | 1/2 | 1/2 |
| Pressure Range | 0.15∽0.8Mpa(21∽114Psi ) | |||||
| Valve Type | 4/2Way | 4/3Way | 4/2Way | 4/3Way | 4/2Way | 4/3Way |
| Lubrication | Not Required | |||||
| Temperature | -10∽60℃ | |||||
| Proof Pressure | 1.5Mpa(215Psi) | |||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the HV Manual Pneumatic Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Manual Pneumatic Valve, Manual Pneumatic Valve 4/2way, Manual Pneumatic Valve 4/3way, Manual Pneumatic Valve 1/4", manual pneumatic valve are for the air flow control.
