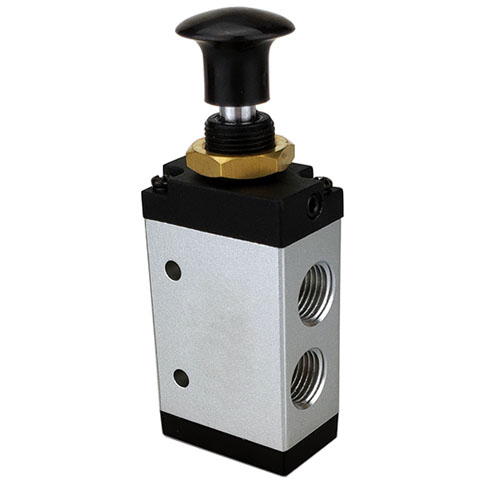

3R Manual Operated Push Pull Valve 1/8" 1/4" 3/8" Pipe Size 3/2 Way ●Manual operation pull push valve, smooth actuation,and exact and reliable orientation; ●Sliding column structure has good tightness and light weight and is easy to install and dismount; ●Internal hole adopts special processing technology which has little attrition friction, long service life; ●No need to add oil for lubrication; ●Panel-mounting makes it convenient to install and apply. 3R Push Pull Valve Symbol:

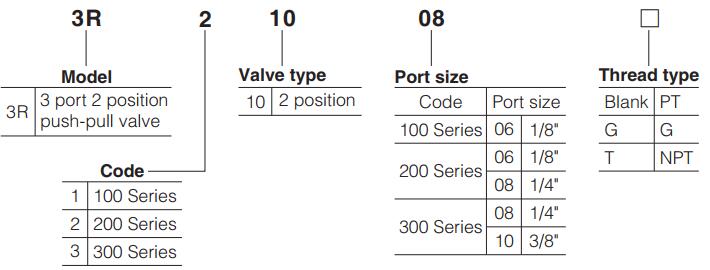

3R Push Pull Valve Ordering Code:
|
Catalog:  3R Push-Pull Valve.pdf |
1.PT thread ,G thread, NPT thread are available
2.Once lubricated air was used,it is suggested to use ISO VG32 or the oil with the same grade.
3R Push Pull Valve Parameter:
| 3R Push Pull Valve | 3R110-06 | 3R210-06 | 3R210-08 | 3R310-08 | 3R310-10 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | ||||
| Operating | Manual Operated;Direct acting type | ||||
| Pipe Size | 1/8" | 1/4" | 3/8" | ||
| Orifice Size | 12m㎡ Cv=0.67 | 14m㎡ Cv=0.78 | 16m㎡ Cv=0.89 | 25m㎡ Cv=1.39 | 30m㎡ Cv=1.67 |
| Valve Type | 3/2 Way Aluminium Alloy Body | ||||
| Lubrication | Not Required | ||||
| Temperature | -20∽70℃ | ||||
| Pressure Range | 0∽1.0Mpa | ||||
| Proof Pressure | 1.5Mpa(215Psi) | ||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the 3R Push Pull Valve ,delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Push Pull Valve, Push Pull Valve 3/2way, Push Pull Valve 1/8, Push Pull Valve 1/4, Push Pull Valve 3/8 are for the air flow control.
