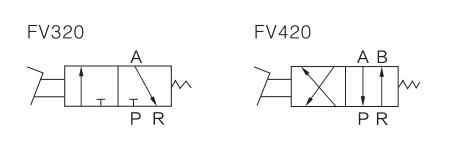

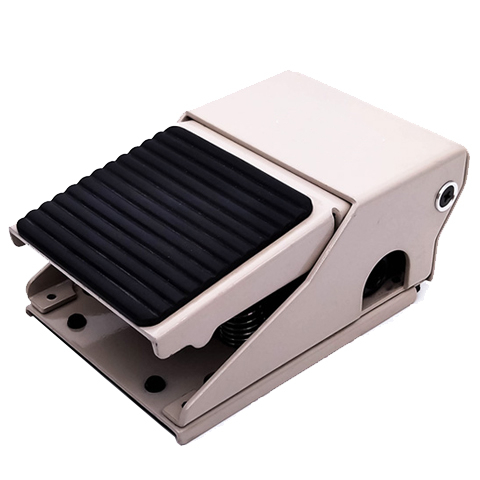

3F 3FM Pneumatic Foot Pedal Valve Port Size 1/8" And 1/4" 3/2 Way ● FV Series directional control foot pedal valves are 3-port /4-port valves ● FV320 Series 3/2 way foot pedal valve,1/8 pipe size ,1/4 pipe size,Three way,two position ● FV420 Series 4/2 way foot pedal valve,1/8 pipe size ,1/4 pipe size, Four way,two position ● Ideal for non-electrical operator control applications. Steel valve body . ● Available in NPT, G,PT thread ● These air valve are also referred to as: Foot Pedal Valve, Foot Valve, Pedal Valve, Pneumatic Directional Control Manual Air Valves ect. FV Series Foot Pedal Valve Symbol:

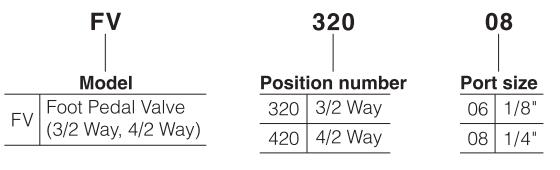

FV Series Foot Pedal Valve Ordering Code:
|
Catalog:  FV Foot Pedal Valve(3-2way 4-2way).pdf |
Prodcut Feature :
1.Direct acting and normally closed type.
2.Iin direct acting type,horizontal and compact structure3.With the black rubber non-slip mat on the pedal, make it easy to stamp on.
4.With the low flow rate type for choosing .
Pneumatic Foot Pedal Valve Parameter:
| Foot Pedal Valve Model | FV320 | FV420 |
| Medium | Compressed Air (Filtered By 40μm Filter Element) | |
| Operating | Controlled by Foot, Directing Type | |
| Pipe Size | 06:1/8"PT | 08:1/4"PT |
| Valve Type | 3/2Way | 4/2Way |
| Pressure Range | 0∽0.8Mpa(0∽114Psi) | |
| Proof Pressure | 1.5Mpa (215Psi) | |
| Temperature | -5∽60℃(28∽140°F) | |
| Body Material | Steel | |
| Lubrication | Not Required | |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the pneumatic foot pedal valve, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: foot pedal valve, foot pedal valve 1/8, foot pedal valve 1/4, foot pedal valve 3/2way, foot Pedal valve 4/2way are for the liquid flow control.
