3F/3FM Pneumatic Foot Pedal Valve

Name: 3F/3FM Pneumatic Foot Pedal Valve
Brand: NEU-MASTER
Rating: 5.0 (9 reviews)

●Pneumatic 3F 3FM Series directional control foot pedal valves are 3-port spool valves
●Ideal for non-electrical operator control applications. 3 Port Air Foot Pedal Valve, 3FM: Plastic; 3F: Aluminum alloy 3port
2 position, normally closed.
●Available in M5, 1/8 NPT, 1/4”NPT. Including 3FM210-M5, 3F210-06, 3FM210-06, 3F210-08, 3FM210-08.
●These air valve are also referred to as: Foot Pedal Valve, Foot Valve, Pedal Valve, Pneumatic Directional Control Manual
Air Valves ect.

Model:
3F-3FM Pneumatic Foot Pedal Valve
Brand:
NEU-MASTER
Code:
3F/3FM Foot Pedal

Availability:



Inquire Add to Basket

Product Description

3F 3FM Pneumatic Foot Pedal Valve Port Size 1/8" And 1/4" 3/2 Way

●Pneumatic 3F 3FM Series directional control foot pedal valves are 3-port spool valves

●Ideal for non-electrical operator control applications. 3 Port Air Foot Pedal Valve, 3FM: Plastic; 3F: Aluminum alloy 3port

2 position, normally closed.

●Available in M5, 1/8 NPT, 1/4”NPT. Including 3FM210-M5, 3F210-06, 3FM210-06, 3F210-08, 3FM210-08.

●These air valve are also referred to as: Foot Pedal Valve, Foot Valve, Pedal Valve, Pneumatic Directional Control Manual

Air Valves ect.

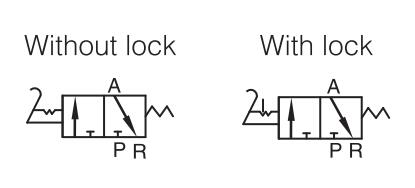

Pneumatic Foot Pedal Valve Symbol:

3F-3FM Pneumatic Foot Pedal Valve Port Size M5 symbol

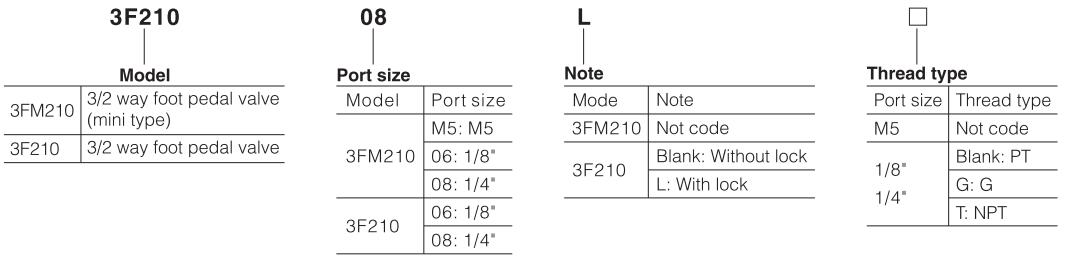

Pneumatic Foot Pedal Valve Ordering Code:

3F-3FM Pneumatic Foot Pedal Valve Port Size M5 ordering code

Catalog: 3F-3FM Foot Pedal Valve(5-2way).pdf

Prodcut Feature :

1.Direct acting and normally closed type.

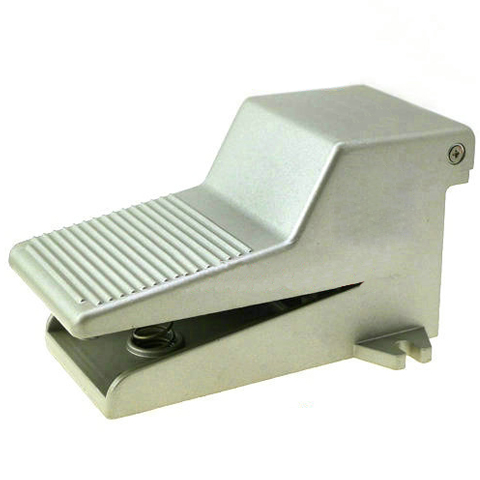

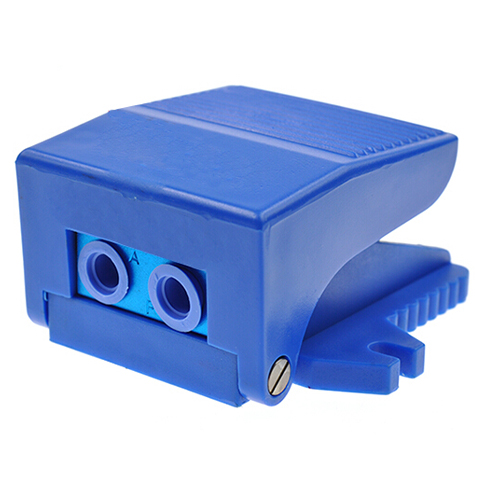

2.the 3F series has aluminum foot pedal and 3FM series has plastic foot pedal,in direct acting type,horizontal and com pact structure
3.If the duration of direction-change is long,the valve with lock may be selected.
4.The clamping framework is steady and reliable that it is easy and quick to unlock. However,with the limitation of the dimension of structure,it cannot bear frequent strong impact.

Pneumatic Foot Pedal Valve Parameter:

Valve Model	3FM210-M5	3F210-06	3FM210-06	3F210-08	3FM210-08
Medium	Compressed Air (Filtered By 40μm Filter Element)
Operating	Controlled by Foot, Normal Close Type
Pipe Size	M5	1/8"	1/8"	1/4"	1/4"
Valve Type	3/2Way
Pressure Range	0∽1.0Mpa(0∽145Psi)
Proof Pressure	1.5Mpa (215Psi)
Temperature	-20∽70℃
Body Material	3FM:Plastic 3F : Aluminium alloy
Lubrication	Not Required

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the 3F 3FM Pneumatic Foot Pedal Valve , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Is the Valve sample for free ?

Yes .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Pneumatic Foot Pedal, Pneumatic Foot Pedal 1/8, Pneumatic Foot Pedal 1/4, Pneumatic Foot Pedal 3/2way, Pneumatic Foot Pedal valve are for the liquid flow control.
