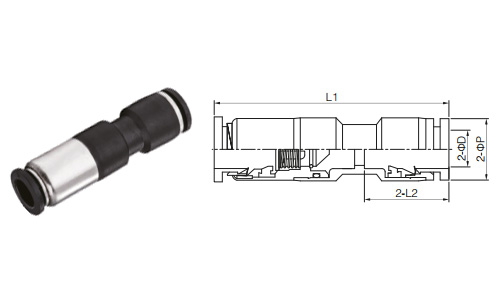

SPC、SPL、SPU Series Stop Fittings

1. Quick plug connector with cut-off valve function.
2. Due to the function of cutting off the flow, the air will not flow when the pipe is pulled out, and the air will flow when the pipe is connected.

Availability:



Inquire Add to Basket

Product Description

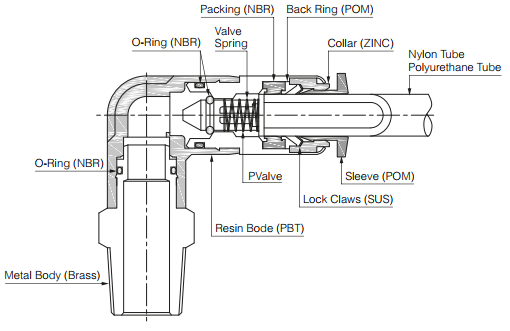

Schematic diagram of structure：

Symbol

Specifications：

Using fluids	Air, water(conditional)
Working pressure range	0~1.0MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	0~60℃

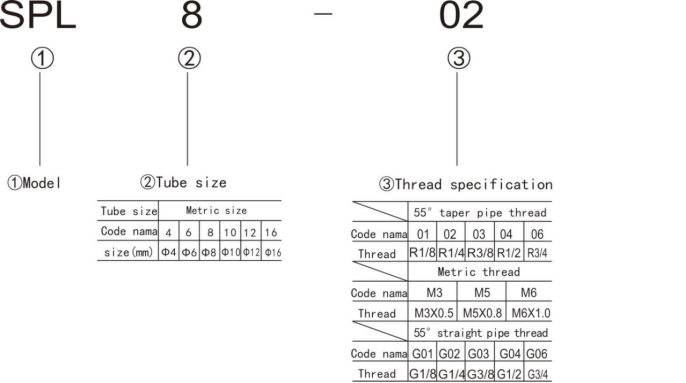

Ordering code(example)

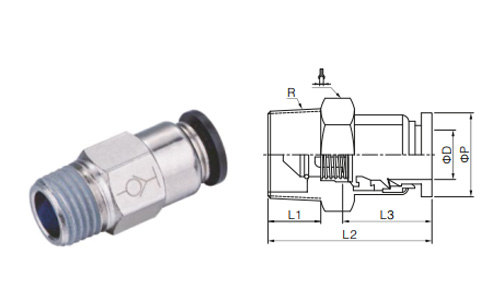

SPC-R Series

SPC-R Series

Model	ФD	R	L1	L2	L3	ФP
SPC4-M5	4	M5	3.5	31.5	15	10	10
SPC4-01		R1/8	7.5	24.5	15	10	10
SPC4-02		R1/4	10	24.5	15	10	14
SPC6-M5	6	M5	3.5	35	16	12	12
SPC6-01		R1/8	7.5	27.5	16	12	12
SPC6-02		R1/4	10	27.5	16	12	14
SPC8-01	8	R1/8	7.5	31.5	18.5	14	14
SPC8-02		R1/4	10	33.5	18.5	14	17
SPC8-03		R3/8	10.5	33.5	18.5	14	14
SPC8-04		R1/2	13.5	33.5	18.5	14	17
SPC10-02	10	R1/4	10	35	20	17	17
SPC10-03		R3/8	10.5	35	20	17	17
SPC10-04		R1/2	13.5	35	20	17	21
SPC12-03	12	R3/8	10.5	36.5	23	20.5	21
SPC12-04	12	R1/2	13.5	36.5	23	20.5	21

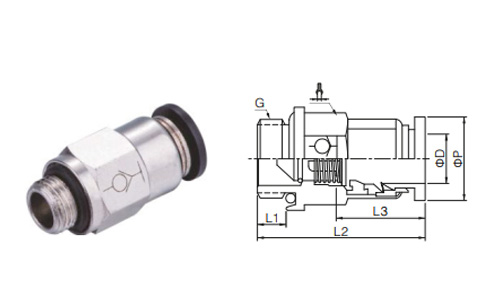

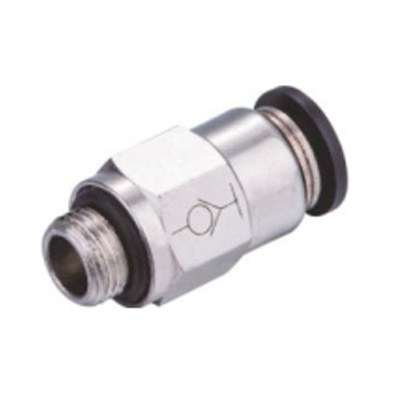

SPC-G Series

SPC-G Series

Model	ФD	G	L1	L2	L3	ФP
SPC4-G01	4	G1/8	5.5	24.5	15	10	12
SPC4-G02	4	G1/4	6.5	24.5	15	10	12
SPC6-G01	6	G1/8	5.5	27.5	16	12	14
SPC6-G02	6	G1/4	6.5	27.5	16	12	14
SPC8-G01	8	G1/8	5.5	31.5	18.5	14	14
SPC8-G02		G1/4	6.5	33.5	18.5	14	14
SPC8-G03		G3/8	7	33.5	18.5	14	17
SPC8-G04		G1/2	10	33.5	18.5	14	19
SPC10-G02	10	G1/4	6.5	35	20	17	17
SPC10-G03		G3/8	7	35	20	17	20
SPC10-G04		G1/2	10	35	20	17	19
SPC12-G03	12	G3/8	7	36.5	23	20.5	21
SPC12-G04	12	G1/2	10	36.5	23	20.5	21

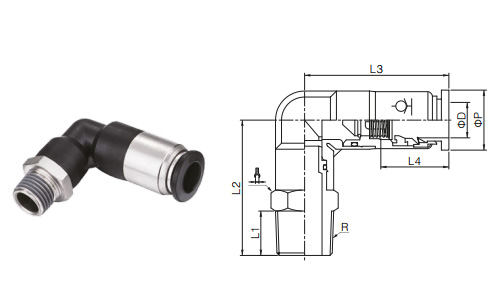

SPL-R Series

SPL-R Series

Model	ФD	R	L1	L2	L3	L4	ФP
SPL4-M5	4	M5	3.5	18.5	31	15	10	10
SPL4-M6		M6	4	19	31	15	10	10
SPL4-01		R1/4	7.5	21.5	31	15	10	14
SPL6-M5	6	M5	3.5	19.5	32.5	16	12	12
SPL6-01		R1/8	7.5	22.5	32.5	16	12	12
SPL6-02		R1/4	10	25	32.5	16	12	14
SPL8-01	8	R1/8	7.5	25	39.5	18.5	14	14
SPL8-02		R1/4	10	27.5	39.5	18.5	14	17
SPL8-03		R3/8	10.5	28.5	39.5	18.5	14	14
SPL10-02	10	R1/4	10	30	45	20	17	17
SPL10-03		R3/8	10.5	30.5	45	20	17	17
SPL10-04		R1/2	13.5	34	45	20	17	21
SPL12-03	12	R3/8	10.5	31	46.5	23	20.5	21
SPL12-04	12	R1/2	13.5	34.5	46.5	23	20.5	21

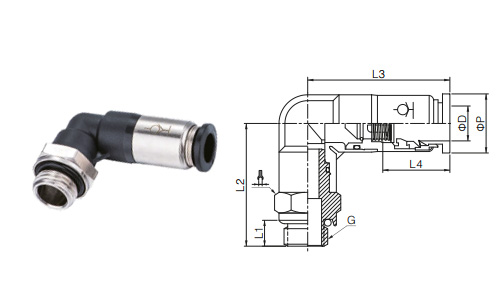

SPL-G Series

Model	ФD	G	L1	L2	L3	L4	ФP
SPL4-G01	4	G1/8	5.5	24.5	15	15	10	12
SPL6-G01	6	G1/8	5.5	27.5	16	16	12	14
SPL6-G02	6	G1/4	6.5	27.5	16	16	12	14
SPL8-G01	8	G1/8	5.5	31.5	18.5	18.5	14	14
SPL8-G02		G1/4	6.5	33.5	18.5	18.5	14	14
SPL8-G03		G3/8	7	33.5	18.5	18.5	14	17
SPL10-G02	10	G1/4	6.5	35	20	20	17	17
SPL10-G03		G3/8	7	35	20	20	17	20
SPL10-G04		G1/2	10	35	20	20	17	19
SPL12-G03	12	G3/8	7	36.5	23	23	20.5	21
SPL12-G04	12	G1/2	10	36.5	23	23	20.5	21
