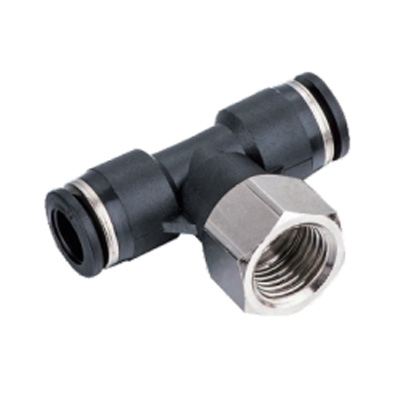

PB, PD series threaded three-way pneumatic quick connector

PB, PD series threaded three-way pneumatic quick connector

Product feature：
Quick plug pneumatic pipe joints are used in pneumatic pipe systems.
A wide variety of fittings can be used in all kinds of tracheal systems.
Even after installation, the direction of the pipe can be freely changed.
The nickel-plated copper body is resistant to corrosion and contamination.
All R and NPT thread adhesives act as seals.
Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

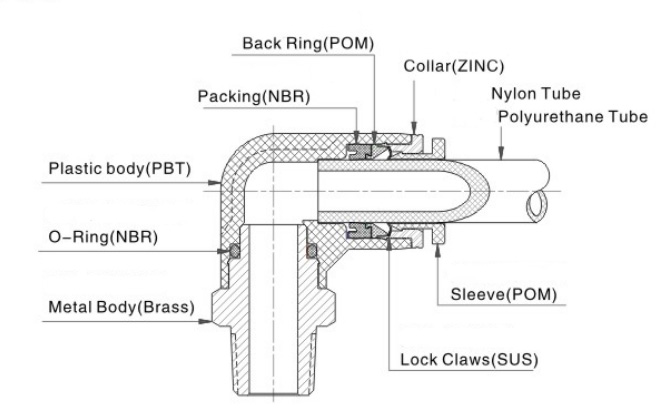

Schematic diagram of structure：

Specifications：

Use medium	Air, water(conditional)
Working pressure range	0~1.2MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	-10°~60℃

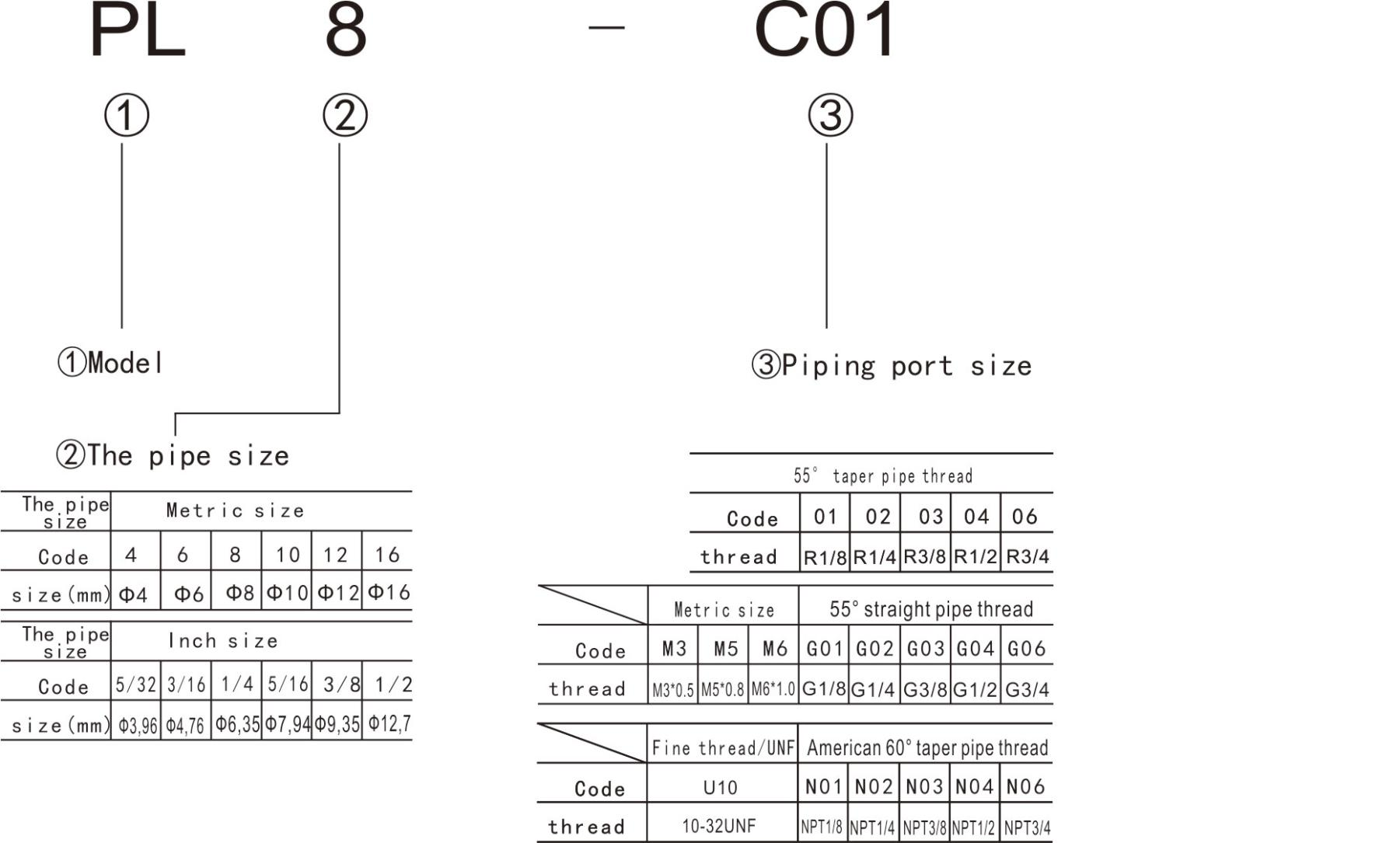

Ordering code:

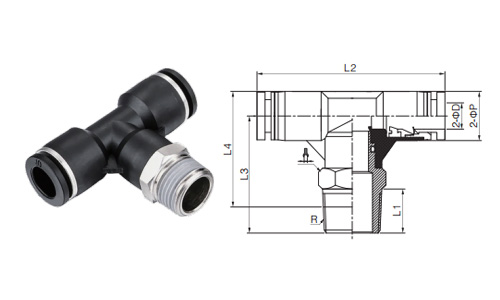

PB-R Series

Model	ФD	R	L1	L2	L3	L4	ФP
PB4-M5	4	M5	3.5	37	18.5	20.5	11	12
PB4-M6		M6	4	37	19	20.5	11	12
PB4-01		R1/8	7.5	37	21	22.5	11	12
PB4-02		R1/4	10	37	24	23.5	11	14
PB4-03		R3/8	10.5	37	25	24	11	17
PB6-M5	6	M5	3.5	39	19.5	22.5	13	12
PB6-M6		M6	4	39	20	22.5	13	12
PB6-01		R1/8	7.5	39	22	24.5	13	12
PB6-02		R1/4	10	39	25	25.5	13	14
PB6-03		R3/8	10.5	39	26	26	13	17
PB6-04		R1/2	13.5	39	29.5	27.5	13	21
PB8-01	8	R1/8	7.5	46	25	28.5	14.5	14
PB8-02		R1/4	10	46	27.5	29	14.5	14
PB8-03		R3/8	10.5	46	28.5	29	14.5	17
PB8-04		R1/2	13.5	46	32	31	14.5	21
PB10-01	10	R1/8	7.5	54.5	27.5	32.5	18.5	17
PB10-02		R1/4	10	54.5	30	33	18.5	17
PB10-03		R3/8	10.5	54.5	30.5	33	18.5	17
PB10-04		R1/2	13.05	54.5	34	35	18.5	21
PB12-01	12	R1/8	7.5	59	28	34.5	21	17
PB12-02		R1/4	10	59	30.5	35	21	17
PB12-03		R3/8	10.5	59	31	35	21	17
PB12-04		R1/2	13.5	59	34.5	36.5	21	21
PB14-03	14	R3/8	11	60	37	42	23	19
PB14-04	14	R1/2	14	60	40.5	44	23	21
PB16-03	16	R3/8	11	61	42	48.5	26	21
PB16-04	16	R1/2	14	61	45.5	50	26	21

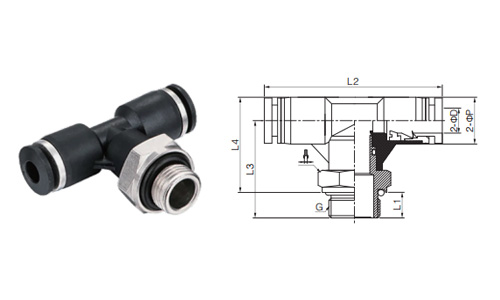

PB-G Series

PB-G Series

Model	ФD	G	L1	L2	L3	L4	ФP
PB4-G01	4	G1/8	5.5	37	21	21	11	14
PB4-G02		G1/4	6.5	37	22	21	11	17
PB4-G03		G3/8	7.5	37	24	22	1	20
PB6-G01	6	G1/8	5.5	39	22	23	113	14
PB6-G02		G1/4	6.5	39	23	23	13	17
PB6-G03		G3/8	7.5	39	25	24	13	20
PB8-G01	8	G1/8	5.5	46	24.5	26	14.5	14
PB8-G02		G1/4	6.5	46	25.5	26	14.5	17
PB8-G03		G3/8	7.5	46	27.5	27	14.5	20
PB8-G04		G1/2	10	46	30	27	14.5	24
PB10-G01	10	G1/8	5.5	54.5	26.5	30	18.5	17
PB10-G02		G1/4	6.5	54.5	27.5	30	18.5	17
PB10-G03		G3/8	7.5	54.5	29.5	32	18.5	20
PB10-G04		G1/2	10	54.5	32	31	18.5	24
PB12-G01	12	G1/8	5.5	59	27	32	21	17
PB12-G02		G1/4	6.5	59	28	32	21	17
PB12-G03		G3/8	7.5	59	30	33	21	20
PB12-G04		G1/2	10	59	32.5	33	21	24
PB14-G03	14	G3/8	7.5	60	34.5	40	23	20
PB14-G04	14	G1/2	10	60	38	40	23	24
PB16-G03	16	G3/8	7.5	61	39.5	46	26	21
PB16-G04	16	G1/2	10	61	43	46	26	24

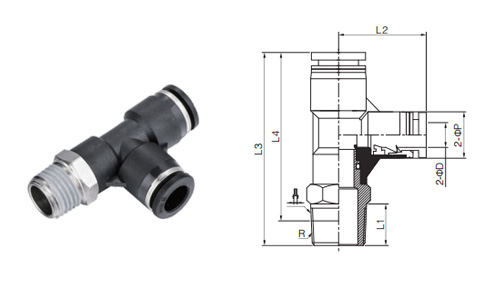

PD-R Series

PD-R Series

Model	ФD	R	L1	L2	L3	L4	ФP
PD4-M5	4	M5	3.5	18.5	37	33.5	11	12
PD4-M6		M6	4	18.5	37.5	33.5	11	12
PD4-01		R1/8	7.5	18.5	40	36	11	12
PD4-02		R1/4	10	18.5	43	37	11	14
PD4-03		R3/8	10.5	18.5	43.5	37	11	17
PD6-M5	6	M5	3.5	19.5	39	35.5	13	12
PD6-M6		M6	4	19.5	39.5	35.5	13	12
PD6-01		R1/8	7.5	19.5	42	38	13	12
PD6-02		R1/4	10	19.5	45	39	13	14
PD6-03		R3/8	10.5	19.5	45.5	39	13	17
PD6-04		R1/2	13.5	19.5	49	41	13	21
PD8-01	8	R1/8	7.5	23	48.5	44.5	14.5	14
PD8-02		R1/4	10	23	51	45	14.5	14
PD8-03		R3/8	10.5	23	51.5	45	14.5	17
PD8-04		R1/2	13.5	23	55	47	14.5	21
PD10-01	10	R1/8	7.5	27	55	51	18.5	17
PD10-02		R1/4	10	27	57	51	18.5	17
PD10-03		R3/8	10.5	27	57.5	51	18.5	17
PD10-04		R1/2	13.5	27	61	53	18.5	21
PD12-01	12	R1/8	7.5	29.5	57.5	53.5	21	17
PD12-02		R1/4	10	29.5	60	54	21	17
PD12-03		R3/8	10.5	29.5	60.5	54	21	17
PD12-04		R1/2	13.5	29.5	64	56	21	21
PD14-03	14	R3/8	11	30.5	67.5	61	23	19
PD14-04	14	R1/2	14	30.5	71	63	23	21

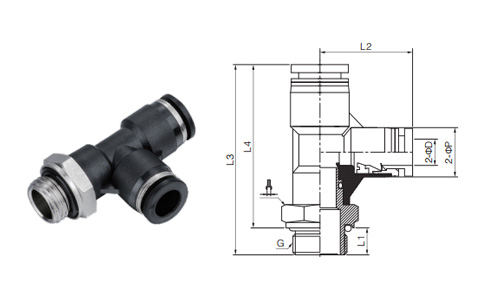

PD-G Series

PD-G Series

Model	ФD	G	L1	L2	L3	L4	ФP
PD4-G01	4	G1/8	5.5	18.5	39.5	34	11	14
PD4-G02		G1/4	6.5	18.5	40.5	34	11	17
PD4-G03		G3/8	7.5	18.5	42.5	35	11	20
PD6-G01	6	G1/8	5.5	19.5	41.5	36	13	14
PD6-G02		G1/4	6.5	19.5	42.5	36	13	17
PD6-G03		G3/8	7.5	19.5	44.5	37	13	20
PD8-G01	8	G1/8	5.5	23	47.5	42	14.5	14
PD8-G02		G1/4	6.5	23	48.5	42	14.5	17
PD8-G03		G3/8	7.5	23	50.5	43	14.5	20
PD8-G04		G1/2	10	23	53	43	14.5	24
PD10-G01	10	G1/8	5.5	27	53.5	48	18.5	17
PD10-G02		G1/4	6.5	27	54.5	48	18.5	17
PD10-G03		G3/8	7.5	27	56.5	49	18.5	20
PD10-G04		G1/2	10	27	59	49	18.5	24
PD12-G01	12	G1/8	5.5	29.5	56.5	51	21	17
PD12-G02		G1/4	6.5	29.5	57.5	51	21	17
PD12-G03		G3/8	7.5	29.5	59.5	52	21	20
PD12-G04		G1/2	10	29.5	62	52	21	24
PD14-G03	14	G3/8	7.5	30.5	65	58.5	23	20
PD14-G04	14	G1/2	10	30.5	68.5	58.5	23	24

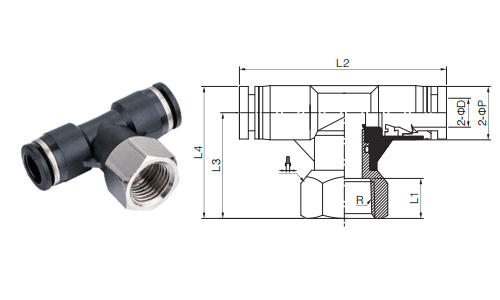

PBF Series

PBF Series

Model	ФD	R	L1	L2	L3	L4	ФP
PBF4-M5	4	M5	5	37	17	22.5	11	12
PBF4-M6		M6	5	37	17	22.5	11	12
PBF4-01		R1/8	8.5	37	20	25.5	11	14
PBF4-02		R1/4	11	37	23	28.5	11	17
PBF4-03		R3/8	11.5	37	24.5	30	11	20
PBF6-M5	6	M5	5	39	18	24.5	13	12
PBF6-M6		M6	5	39	18	24.5	13	12
PBF6-01		R1/8	8.5	39	21	27.5	13	14
PBF6-02		R1/4	11	39	24	30.5	13	17
PBF6-03		R3/8	11.5	39	25.5	32	13	20
PBF8-01	8	R1/8	8.5	46	23.5	30.5	14.5	14
PBF8-02		R1/4	11	46	26.5	33.5	14.5	17
PBF8-03		R3/8	11.5	46	28	35	14.5	20
PBF8-04		R1/2	14	46	31.5	38.5	14.5	24
PBF10-01	10	R1/8	8.5	54.5	25.5	34.5	18.5	17
PBF10-02		R1/4	11	54.5	28.5	37.5	18.5	17
PBF10-03		R3/8	11.5	54.5	29	38	18.5	20
PBF10-04		R1/2	14	54.5	33.5	42.5	18.5	24
PBF12-01	12	R1/8	8.5	59	26	36.5	21	17
PBF12-02		R1/4	11	59	29	39.5	21	17
PBF12-03		R3/8	11.5	59	29.5	40	21	20
PBF12-04		R1/2	14	59	34	44.5	21	24

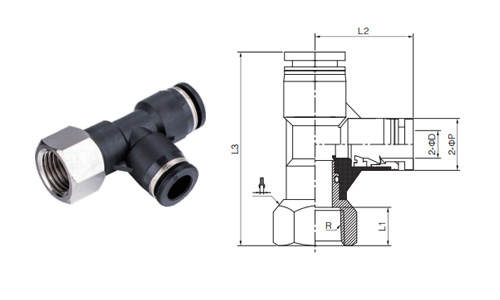

PDF Series

Model	ФD	R	L1	L2	L3	ФP
PDF4-M5	4	M5	5	18.5	35.5	11	12
PDF4-M6		M6	5	18.5	35.5	11	12
PDF4-01		R1/8	8.5	18.5	38.5	11	14
PDF4-02		R1/4	11	18.5	41.5	11	17
PDF4-03		R3/8	11.5	18.5	43	11	20
PDF6-M5	6	M5	5	19.5	37.5	13	12
PDF6-M6		M6	5	19.5	37.5	13	12
PDF6-01		R1/8	8.5	19.5	40.5	13	14
PDF6-02		R1/4	11	19.5	43.5	13	17
PDF6-03		R3/8	11.5	19.5	45	13	20
PDF8-01	8	R1/8	8.5	23	46.5	14.5	14
PDF8-02		R1/4	11	23	49.5	14.5	17
PDF8-03		R3/8	11.5	23	51	14.5	20
PDF8-04		R1/2	14	23	54.5	14.5	24
PDF10-01	10	R1/8	8.5	27	52.5	18.5	17
PDF10-02		R1/4	11	27	55.5	18.5	17
PDF10-03		R3/8	11.5	27	56	18.5	20
PDF10-04		R1/2	14	27	60.5	18.5	24
PDF12-01	12	R1/8	8.5	29.5	55.5	21	17
PDF12-02		R1/4	11	29.5	58.5	21	17
PDF12-03		R3/8	11.5	29.5	59	21	20
PDF12-04		R1/2	14	29.5	63.5	21	24
