PU series pneumatic ultra-small quick intubation connector
Home » Products » AIR LINE ACCESSORY » A Series Tube Connector » PU series pneumatic ultra-small quick intubation connector

Related Products

PRODUCT DETAIL

PU series pneumatic ultra-small quick intubation connector PU series pneumatic ultra-small quick intubation connector
PU series pneumatic ultra-small quick intubation connector PU series pneumatic ultra-small quick intubation connector
PU series pneumatic ultra-small quick intubation connector PU series pneumatic ultra-small quick intubation connector
PU series pneumatic ultra-small quick intubation connector PU series pneumatic ultra-small quick intubation connector
PU series pneumatic ultra-small quick intubation connector PU series pneumatic ultra-small quick intubation connector
PU series pneumatic ultra-small quick intubation connector PU series pneumatic ultra-small quick intubation connector

loading

PU series pneumatic ultra-small quick intubation connector

Share to:
sharethis sharing button
The characteristics：
The volume is 40% of the standard pipe joint, successfully miniaturized.
The release ring used to remove the pipe is oval and circular. Although it is super small, it is easy to disassemble.
The nickel-plated copper body is resistant to corrosion and contamination.
Availability:
Inquire Add to Basket

Graphic symbol：




Technical conditions：

Use medium

Air, water（conditional）

Pressure range

0~1.0MPa

Vacuum pressure

-100Kpa(10Torr)

Working temperature

0°~60℃



PU Series

PU series

Model

ФD

L

ФP

PU4

4

33.5

11

PU6

6

34.5

13

PU8

8

40

14.5

PU10

10

44

18.5

PU12

12

48

21

PU14

14

51.5

23

PU16

16

63.5

26

PU5/32

5/32

33.5

11

PU3/16

3/16

33.5

11

PU1/4

1/4

34.5

13

PU5/16

5/16

40

14.5

PU3/8

3/8

44

18.5

PU1/2

1/2

48

21

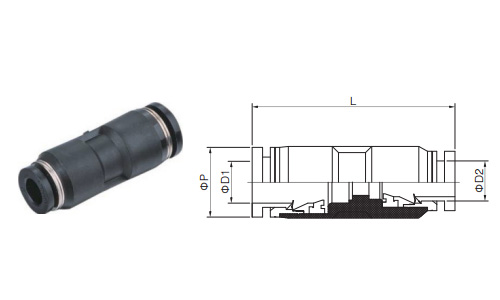

PUG Series

PUG Series

Model

ФD1

ФD2

L

ФP

PUG6-4

6

4

34.5

13

PUG8-4

8

4

39

14.5

PUG8-6

8

6

39

14.5

PUG10-6

10

6

42.5

18.5

PUG10-8

10

8

43

18.5

PUG12-6

12

6

47.5

21

PUG12-8

12

8

48

21

PUG12-10

12

10

48.5

21

PUG14-12

14

12

51

23

PUG16-12

16

12

64

26

PUG16-14

16

14

65

26

PUG1/4-5/32

1/4

5/32

34.5

13

PUG5/16-5/32

5/16

5/32

39

14.5

PUG5/16-1/4

5/16

1/4

39

14.5

PUG3/8-5/16

3/8

1/4

42.5

18.5

PUG3/8-5/16

3/5

5/16

43

18.5

PUG1/2-1/4

1/2

1/4

47.5

21

PUG1/2-5/16

1/2

5/16

48

21

PUG1/2-3/8

1/2

3/8

48.5

21

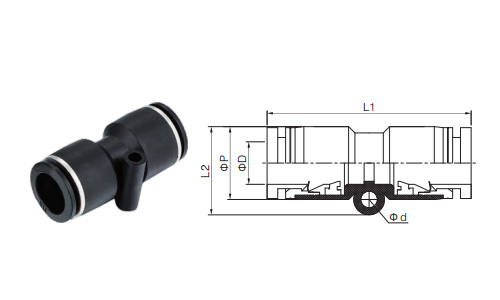

PUC Series

PUC Series

Model

ФD

L1

L2

ФP

Фd

PUC4

4

33

13.5

11

3.2

PUC6

6

35

16

13

3.2

PUC8

8

38

17

14.5

3.2

PUC10

10

48

21.5

18.5

4.2

PUC12

12

49

24

21

4.2

PUC14

14

51.5

25.5

23

4.2

PUC16

16

64

28

26

5.2

PUC5/32

5/32

33

13.5

11

3.2

PUC3/16

3/16

33

13.5

11

3.2

PUC1/4

1/4

35

16

13

3.2

PUC5/16

5/16

38

17

14.5

3.2

PUC3/8

3/8

48

21.5

18.5

4.2

PUC1/2

1/2

49

24

21

4.2

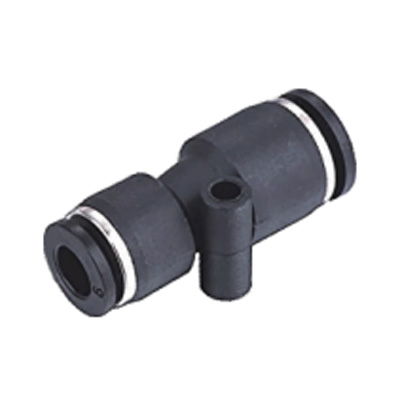

PG reducing pipe through

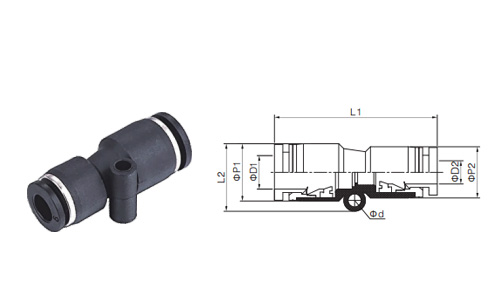

PG Series

Model

ФD1

ФD2

L1

L2

ФP1

ФP2

 Фd

PG6-4

6

4

34

15

13

11

3.2

PG8-4

8

4

36

16.5

14.5

13

3.2

PG8-6

8

6

36.5

16.5

14.5

13

3.2

PG10-6

10

6

43

19.5

18.5

14.5

3.2

PG10-8

10

8

43

19.5

18.5

14.5

3.2

PG12-6

12

6

47

23.5

21

18.5

4.2

PG12-8

12

8

47

23.5

21

18.5

4.2

PG12-10

12

10

48

23.5

21

18.5

4.2

PG14-12

14

12

51

25

23

23

4.2

PG16-12

16

12

64

28

26

26

5.2

PG16-14

16

14

64.5

28

26

26

5.2

PG1/4-5/32

1/4

5/32

34

15

13

11

3.2

PG5/16-5/32

5/16

5/32

36

16.5

14.5

13

3.2

PG5/16-1/4

5/16

1/4

36.5

16.5

14.5

13

3.2

PG3/8-1/4

3/8

1/4

46.5

19.5

18.5

14.5

3.2

PG3/8-5/16

3/8

5/16

47

19.5

18.5

14.5

3.2

PG1/2-1/4

1/2

1/4

47

23.5

21

18.5

4.2

PG1/2-5/16

1/2

5/16

47

23.5

21

18.5

4.2

PG1/2-3/8

1/2

3/8

48

23.5

21

18.5

4.2

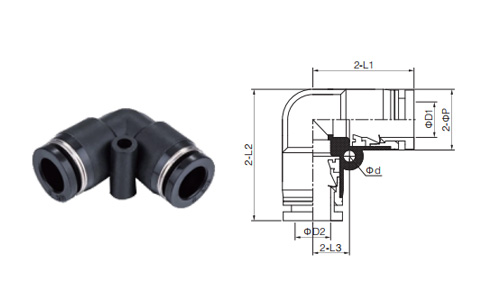

PUL Series

PUL Series

Model

ФD

ФD

L1

L2

L3

ФP2

Фd

PUL4

4

18.5

24

7

11

3.2

PUL6

6

19

25.5

8

13

3.2

PUL8

8

23

30.5

9

14.5

3.2

PUL10

10

27.5

37

11.5

18.5

4.2

PUL12

12

29

39.5

13

21

4.2

PUL14

14

30

41.5

13.5

23

4.2

PUL16

16

32.5

45.5

14

26

5.2

PUL6-4

6

4

19

25.5

8

13

3.2

PUL8-6

8

6

23

30.5

9

14.5

3.2

PUL10-8

10

8

27.5

37

11.5

18.5

4.2

PUL12-10

12

10

29

39.5

13

21

4.2

PUL14-12

14

12

30

41.5

13.5

23

4.2

PUL16-14

16

14

32.5

45.5

14

26

5.2

PUL5/32

5/32

18.5

24

7

11

3.2

PUL3/16

3/16

18.5

24

7

11

3.2

PUL1/4

1/4

19

25.5

8

13

3.2

PUL5/16

5/16

23

30.5

9

14.5

3.2

PUL3/8

3/8

27.5

37

11.5

18.5

4.2

PUL1/2

1/2

29

39.5

13

21

4.2



PUT Series

PUT Series

Model

ФD1

ФP

L1

L2

L3

L4

 Фd

PUT4

4

11

18.5

37

7

14

3.2

PUT6

6

13

19

38

8

16

3.2

PUT8

8

14.5

23

46

9

18

3.2

PUT10

10

18.5

27.5

55

11.5

23

4.2

PUT12

12

21

29

58

13

26

4.2

PUT14

14

23

30

60

13.5

27

4.2

PUT16

16

26

32.5

65

14

28

5.2

PUT5/32

5/32

11

18.5

37

7

14

3.2

PUT3/16

3/16

11

18.5

37

7

14

3.2

PUT1/4

1/4

13

19

38

8

16

3.2

PUT5/16

5/16

14.5

23

46

9

18

3.2

PUT3/8

3/8

18.5

27.5

55

11.5

23

4.2

PUT1/2

1/2

21

29

58

13

26

4.2

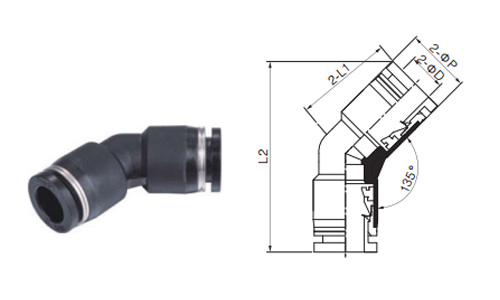

PUL135° Series

PUL 135° Series

Model

ФD

ФP

L1

L2

PUL135°4

4

11

16.5

31.5

PUL135°6

6

13

17.5

34

PUL135°8

8

14.5

20.5

40.5

PUL135°10

10

18.5

24

46.5

PUL135°12

12

21

26

51.5

PUL135°5/32

5/32

11

16.5

31.5

PUL135°3/16

3/16

11

16.5

31.5

PUL135°1/4

1/4

13

17.5

34

PUL135°5/16

5/16

14.5

20.5

40.5

PUL135°3/8

3/8

18.5

24

46.5

PUL135°1/2

1/2

21

26

51.5

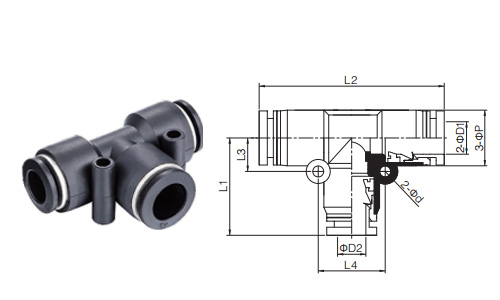

PGT Series

PGT Series

Model

ФD1

ФD2

 ФP

L1

L2

L3

L4

 Фd

PGT6-4

6

4

13

19

38

8

16

3.2

PGT4-6

4

6

13

19

38

8

16

3.2

PGT8-6

8

6

14.5

22

46

9

18

3.2

PGT6-8

6

8

14.5

23

44

9

18

3.2

PGT10-8

10

8

18.5

27

55

11.5

23

4.2

PGT8-10

8

10

18.5

27.5

54

11.5

23

4.2

PGT12-10

12

10

21

29.5

59

13

26

4.2

PGT10-12

10

12

21

29

58

13

26

4.2

PGT14-12

14

12

23

29

60

13.5

27

4.2

PGT16-12

16

12

26

32

65

14

28

5.2

PGT16-14

16

14

26

32.5

65

14

28

5.2

PGT1/4-5/32

1/4

5/32

13

19

38

8

16

3.2

PGT5/32-1/4

5/32

1/4

13

19

38

8

16

3.2

PGT5/16-1/4

5/16

1/4

14.5

22

46

9

18

3.2

PGT1/4-5/16

1/4

5/16

14.5

22

44

9

18

3.2

PGT3/8-5/16

3/8

5/16

18.5

27

55

11.5

23

4.2

PGT5/16-3/8

5/16

3/8

18.5

27

54

11.5

23

4.2

PGT1/2-3/8

1/2

3/8

21

29.5

59

13

26

4.2

PGT3/8-1/2

3/8

1/2

21

29

58

13

26

4.2
