PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

PWT、PKD 、PRX Pneumatic Quick Plug Threaded Y - Type Tees

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

Specifications：

Use medium	Air, water(conditional)
Working pressure range	0~1.2MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	-10°~60℃

Ordering code:

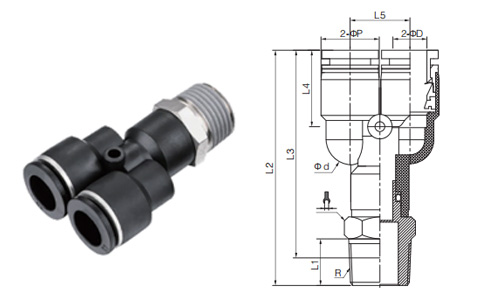

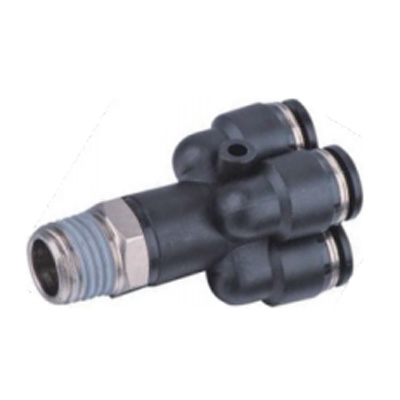

PWT-R Series

PWT-R Series

Model	ФD	R	L1	L2	L3	L4	L5	ФP
PWT4-M5	4	M5	3.5	39	35.5	14	11	11	12
PWT4-M6		M6	4	39.5	35.5	14	11	11	12
PWT4-01		R1/8	7.5	41.5	37.5	14	11	11	12
PWT4-02		R1/4	10	44.5	38.5	14	11	11	14
PWT4-03		R3/8	10.5	45.5	39	14	11	11	17
PWT6-M5	6	M5	3.5	42	38.5	15	13	13	12
PWT6-M6		M6	4	42.5	37	15	13	13	12
PWT6-01		R1/8	7.5	45	41	15	13	13	12
PWT6-02		R1/4	10	47.5	41.5	15	13	13	14
PWT6-03		R3/8	10.5	48.5	42	15	13	13	17
PWT6-04		R1/2	13.5	52	44	15	13	13	21
PWT8-01	8	R1/8	7.5	51	47	18	14.5	14.5	14
PWT8-02		R1/4	10	53.5	47.5	18	14.5	14.5	14
PWT8-03		R3/8	10.5	54.5	48	18	14.5	14.5	17
PWT8-04		R1/2	13.5	58	49.5	18	14.5	14.5	21
PWT10-01	10	R1/8	7.5	56.5	52.5	21	18.5	18.5	17
PWT10-02		R1/4	10	59	53	21	18.5	18.5	17
PWT10-03		R3/8	10.5	59.5	53	21	18.5	18.5	17
PWT10-04		R1/2	13.5	63	55	21	18.5	18.5	21
PWT12-02	12	R1/4	10	64	58	21.5	21	21	17
PWT12-03		R3/8	10.5	64.5	58	21.5	21	21	17
PWT12-04		R1/2	13.5	68	60	21.5	21	21	21
PWT14-03	14	R3/8	11	65.5	59	22	23	23	19
PWT14-04	14	R1/2	14	69	60.5	22	23	23	21
PWT16-03	16	R3/8	11	65.5	59	22	26	26	21
PWT16-04	16	R1/2	14	69	61	22	26	26	21

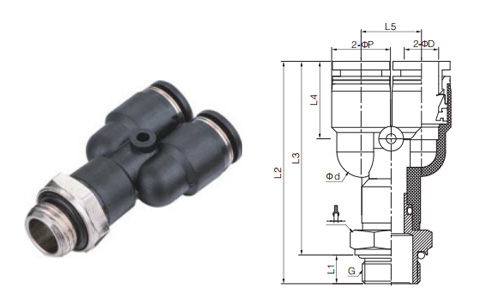

PWT-G Series

Model	ФD	G	L1	L2	L3	L4	L5	ФP
PWT4-G01	4	G1/8	5.5	41.5	36	14	11	11	14
PWT4-G02		G1/4	6.5	42.5	36	14	11	11	17
PWT4-G03		G3/8	7.5	44.5	37	14	11	11	20
PWT6-G01	6	G1/8	5.5	44.5	39	15	13	13	14
PWT6-G02		G1/4	6.5	45.5	39	15	13	13	17
PWT6-G03		G3/8	7.5	47.5	40	15	13	13	20
PWT8-G01	8	G1/8	5.5	50.5	45	18	14.5	14.5	14
PWT8-G02		G1/4	6.5	51.5	45	18	14.5	14.5	17
PWT8-G03		G3/8	7.5	53.5	46	18	14.5	14.5	20
PWT8-G04		G1/2	10	56	46	18	14.5	14.5	24
PWT10-G01	10	G1/8	5.5	55.5	50	21	18.5	18.5	17
PWT10-G02		G1/4	6.5	56.5	50	21	18.5	18.5	17
PWT10-G03		G3/8	7.5	58.5	51	21	18.5	18.5	20
PWT10-G04		G1/2	10	61	51	21	18.5	18.5	24
PWT12-G02	12	G1/4	6.5	61.5	55	21.5	21	21	17
PWT12-G03		G3/8	7.5	63.5	56	21.5	21	21	20
PWT12-G04		G1/2	10	66	56	21.5	21	21	24
PWT14-G03	14	G3/8	7.5	63	56.5	22	23	23	20
PWT14-G04	14	G1/2	10	66.5	56.5	22	23	23	24
PWT16-G03	16	G3/8	7.5	63	56.5	22	26	26	21
PWT16-G04	16	G1/2	10	66.5	56.5	22	26	26	24

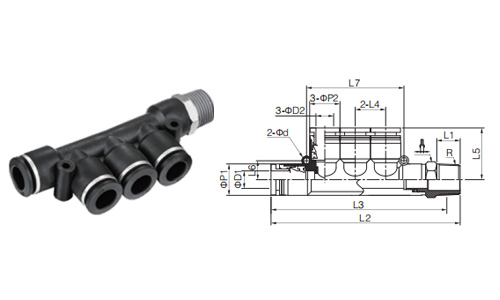

PKD-R Series

Model	ФD1	ФD2	R	L1	L2	L3	L4	L5	L6	L7	ФP1	ФP2	Фd
PKD4-01	4	4	R1/8	7.5	65.5	61.5	11	19	8	37.5	13	11	3.2	12
PKD4-02	4	4	R1/4	10	68	62	11	19	8	37.5	13	11	3.2	14
PKD6-4-01	6	4	R1/8	7.5	67	63	11	19	8	37.5	13	11	3.2	12
PKD6-4-02	6	4	R1/4	10	69.5	63.5	11	19	8	37.5	13	11	3.2	14
PKD6-01	6	6	R1/8	7.5	76	72	13	23	8.5	42	14.5	13	3.2	12
PKD6-02	6	6	R1/4	10	78.5	72.5	13	23	8.5	42	14.5	13	3.2	14
PKD8-6-02	8	6	R1/4	10	79.5	73.5	13	23	8.5	42	14.5	13	3.2	14
PKD8-6-03	8	6	R3/8	10.5	80.5	74	13	23	8.5	42	14.5	13	3.2	17
PKD8-02	8	8	R1/4	10	87.5	81.5	14.5	25	11	47.5	18.5	14.5	4.2	14
PKD8-03	8	8	R3/8	10.5	88.5	82	14.5	25	11	47.5	18.5	14.5	4.2	17
PKD10-8-02	10	8	R1/4	10	88.5	82.5	14.5	25	11	47.5	18.5	14.5	4.2	17
PKD10-8-03	10	8	R3/8	10.5	89	82.5	14.5	25	11	47.5	18.5	14.5	4.2	17
PKD10-03	10	10	R3/8	10.5	101.5	95	18.5	29.5	12.5	60	21	18.5	4.2	17
PKD10-04	10	10	R1/2	13.5	105	97	18.5	29.5	12.5	60	21	18.5	4.2	21
PKD12-10-03	12	10	R3/8	10.5	103.5	97	18.5	29.5	12.5	60	21	18.5	4.2	17
PKD12-10-04	12	10	R1/2	13.5	107	99	18.5	29.5	12.5	60	21	18.5	4.2	21
PKD12-03	12	12	R3/8	10.5	109.5	103	21	29.5	13	68.5	21	21	4.2	17
PKD12-04	12	12	R1/2	13.5	113	105	21	29.5	13	68.5	21	21	4.2	21

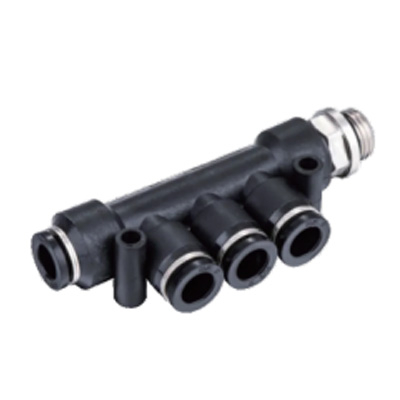

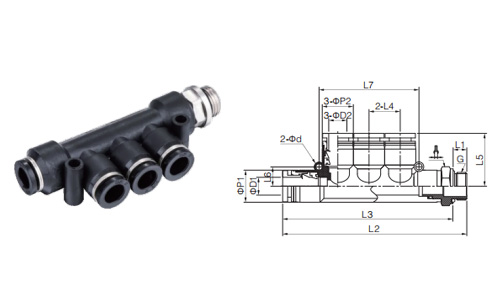

PKD-G Series

Model	ФD1	ФD2	R	L1	L2	L3	L4	L5	L6	L7	ФP1	ФP2	Фd
PKD4-G01	4	4	G1/8	5.5	65	59.5	11	19	8	37.5	13	11	3.2	14
PKD4-G02	4	4	G1/4	6.5	66	59.5	11	19	8	37.5	13	11	3.2	17
PKD6-4-G01	6	4	G1/8	5.5	66.5	61	11	19	8	37.5	13	11	3.2	14
PKD6-4-G02	6	4	G1/4	6.5	67.5	61	11	19	8	37.5	13	11	3.2	17
PKD6-G01	6	6	G1/8	5.5	75.5	70	13	23	8.5	42	14.5	13	3.2	14
PKD6-G02	6	6	G1/4	6.5	76.5	70	13	23	8.5	42	14.5	13	3.2	17
PKD8-6-G02	8	6	G1/4	6.5	77.5	71	13	23	8.5	42	14.5	13	3.2	17
PKD8-6-G03	8	6	G3/8	7.5	79.5	72	13	23	8.5	42	14.5	13	3.2	20
PKD8-G02	8	8	G1/4	6.5	85.5	79	14.5	25	11	47.5	18.5	14.5	4.2	17
PKD8-G03	8	8	G3/8	7.5	87.5	80	14.5	25	11	47.5	18.5	14.5	4.2	20
PKD10-8-G02	10	8	G1/4	6.5	86	79.5	14.5	25	11	47.5	18.5	14.5	4.2	17
PKD10-8-G03	10	8	G3/8	7.5	88	80.5	14.5	25	11	47.5	18.5	14.5	4.2	20
PKD10-G03	10	10	G3/8	7.5	100.5	93	18.5	29.5	12.5	60	21	18.5	4.2	20
PKD10-G04	10	10	G1/2	10	103	93	18.5	29.5	12.5	60	21	18.5	4.2	24
PKD12-10-G03	12	10	G3/8	7.5	102.5	95	18.5	29.5	12.5	60	21	18.5	4.2	20
PKD12-10-G04	12	10	G1/2	10	105	95	18.5	29.5	12.5	60	21	18.5	4.2	24
PKD12-G03	12	12	G3/8	7.5	108.5	101	21	29.5	13	68.5	21	21	4.2	20
PKD12-G04	12	12	G1/2	10	111	101	21	29.5	13	68.5	21	21	4.2	24

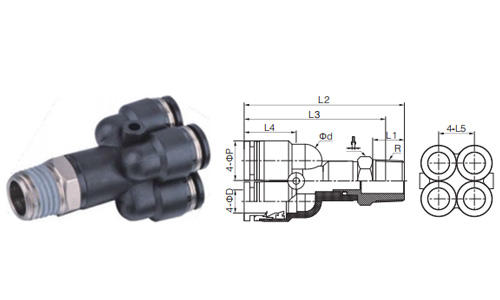

PRX-R Series

PRX-R Series

Model	ФD	R	L1	L2	L3	L4	L5	ФP
PRX4-01	4	R1/8	46	46	42	15.5	13	13	14
PRX4-02		R1/4	48	48	42	15.5	13	13	14
PRX4-03		R3/8	49.5	49.5	43	15.5	13	13	17
PRX6-01	6	R1/8	46	46	42	15.5	13	13	14
PRX6-02		R1/4	48	48	42	15.5	13	13	14
PRX6-03		R3/8	49.5	49.5	43	15.5	13	13	17

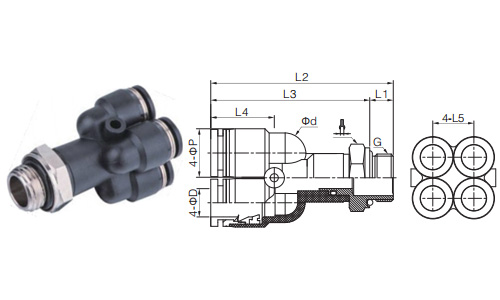

PRX-G Series

PRX-G Series

Model	ФD	G	L1	L2	L3	L4	L5	ФP
PRX4-G01	4	G1/8	5.5	39.5	39.5	15.5	13	13	14
PRX4-G02		G1/4	6.5	40	40	15.5	13	13	17
PRX4-G03		G3/8	7.5	40.5	40.5	15.5	13	13	20
PXR6-G01	6	G1/8	5.5	39.5	39.5	15.5	13	13	14
PXR6-G02		G1/4	6.5	40	40	15.5	13	13	17
PXR6-G03		G3/8	7.5	40.5	40.5	15.5	13	13	20
