BVU、BVC、Series Ball Valves
Home » Products » AIR LINE ACCESSORY » A Series Tube Connector » BVU、BVC、Series Ball Valves

Related Products

PRODUCT DETAIL

BVU、BVC、Series Ball Valves
BVU、BVC、Series Ball Valves BVU、BVC、Series Ball Valves
BVU、BVC、Series Ball Valves BVU、BVC、Series Ball Valves
BVU、BVC、Series Ball Valves BVU、BVC、Series Ball Valves

loading

BVU、BVC、Series Ball Valves

Share to:
sharethis sharing button
Control the opening and closing of air pressure of pneumatic device.
Availability:
Inquire Add to Basket

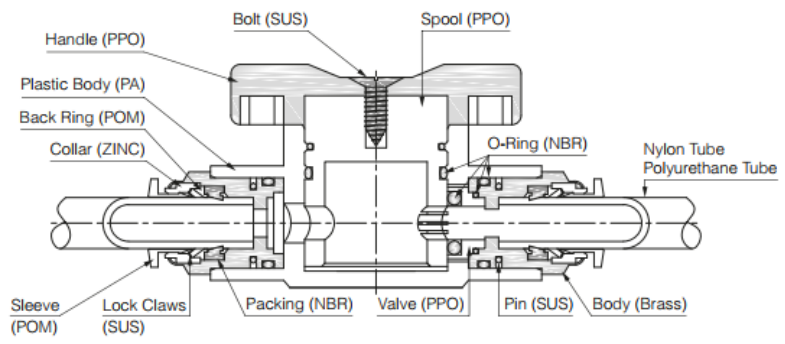

Schematic diagram of structure：

4

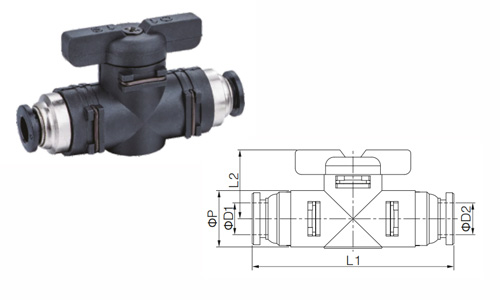

BVU Series

BVU Series

Model

L1

        L2

L3

L4

L5

BVU06

6

6

52

23

17

BVU08

8

8

58

23

17

BVU08-06

8

6

55

23

17

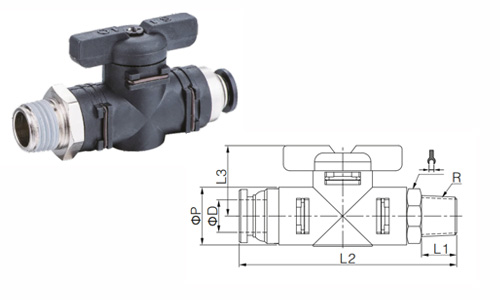

BVC Series

BVC Series

Model

ФD

R

L1

L2

L3

ФP

六角图标

BVC06-01

6

R1/8

7.5

56

23

17

17

BVC06-02

6

R1/4

9.5

58

23

17

17

BVC06-03

6

R3/8

10.5

59

23

17

17

BVC08-01

8

R1/8

7.5

59

23

17

17

BVC08-02

8

R1/4

9.5

61

23

17

17

BVC08-03

8

R3/8

10.5

62

23

17

17

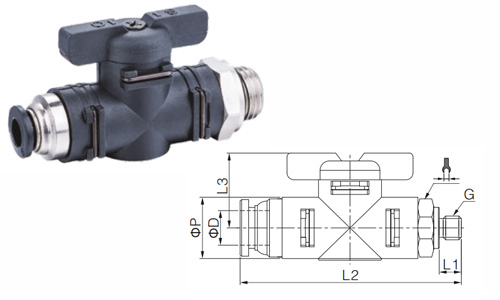

BVC-G Series

BVC-G Series.

Model

ФD

G

L1

L2

L3

ФP

六角图标六角图标

BVC06-G01

6

G1/8

5.5

56

23

17

17

BVC06-G02

6

G1/4

6.5

58.5

23

17

17

BVC06-G03

6

G3/8

7.5

59

23

17

20

BVC08-G01

8

G1/8

5.5

59

23

17

17

BVC08-G02

8

G1/4

6.5

61.5

23

17

17

BVC08-G03

8

G3/8

7.5

62

23

17

20
