CVPL、CVPSF、CVPFS Series Check Valves

1. If you input from one direction, the air will circulate; if you input from the opposite direction, the air will not circulate.
2. It can ensure that the output side pressure does not change.

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

CVPC、CVPU、CVPFF Series Stop Fittings

Symbol

微信图片_20211014110502

Specifications：

CVPC/CVPF/CVPL	CVPC/CVPF/CVPL-B
Flow from external thread to pipe or internal thread	Flow from pipe or internal thread to external thread

Ordering code(example)

CVPC 8-02-B

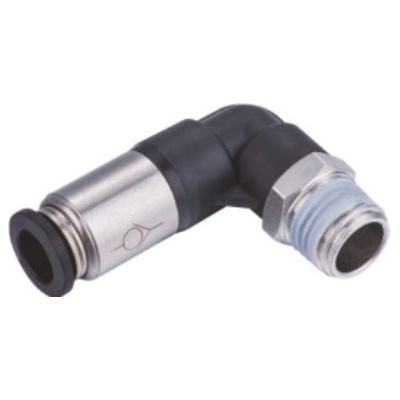

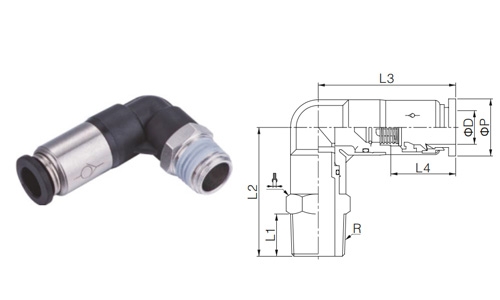

CVPL-R Series

Model	ФD	R	L1	L2	L3	L4	ФP
CVPL4-M5(B)	4	M5	3.5	18.5	35	15	10	12
CVPL4-M6(B)		M6	4	19	35	15	10	12
CVPL4-01(B)		R1/8	7.5	21	35	15	10	12
CVPL6-01(B)	6	R1/8	7.5	22	37	16	12	12
CVPL6-02(B)	6	R1/4	10	25	37	16	12	14
CVPL8-01(B)	8	R1/8	7.5	25	44	18	14	14
CVPL8-02(B)		R1/4	10	27.5	44	18	14	14
CVPL8-03(B)		R3/8	10.5	28.5	44	18	14	17
CVPL10-02(B)	10	R1/4	10	30	53	20	17	17
CVPL10-03(B)		R3/8	10.5	30.5	53	20	17	17
CVPL10-04(B)		R1/2	13.5	34	53	20	17	21
CVPL12-03(B)	12	R3/8	10.5	34	56.5	23	20	17
CVPL12-04(B)	12	R1/2	13.5	34.5	56.5	23	20	21

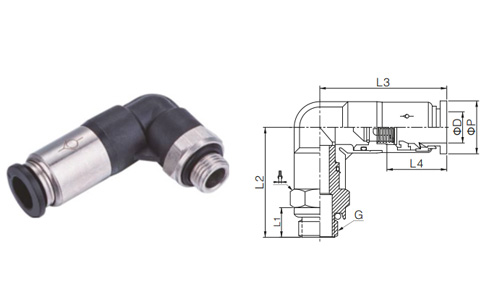

CVPL-G Series

CVPL-G Series

Model	ФD	G	L1	L2	L3	L4	ФP
CVPL4-G01(B)	4	G1/8	5.5	21	35	15	10	14
CVPL6-G01(B)	6	G1/8	5.5	22	37	16	12	14
CVPL6-G02(B)	6	G1/4	6.5	23	37	16	12	17
CVPL8-G01(B)	8	G1/8	5.5	24.5	44	18	14	14
CVPL8-G02(B)		G1/4	6.5	25.5	44	18	14	17
CVPL8-G03(B)		G3/8	7.5	27.5	44	18	14	20
CVPL10-G02(B)	10	G1/4	6.5	27.5	53	20	17	17
CVPL10-G03(B)		G3/8	7.5	29.5	53	20	17	20
CVPL10-G04(B)		G1/2	10	32	53	20	17	24
CVPL12-G03(B)	12	G3/8	7.5	30	56.5	23	20	20
CVPL12-G04(B)	12	G1/2	10	32.5	56.5	23	20	24

CVPSF、CVPFS-R Series

CVPSF、CVPFS-R Series

Model	R	Rc	L1	L2	L3
From external thread to internal thread
CVPSF G01-G01	R1/8	Rc1/8	8	8	26.5	12
CVPSF G02-G02	R1/4	Rc1/4	10	10	33.5	17
CVPSF G03-G03	R3/8	Rc3/8	11	11	38	20
CVPSF G04-G04	R1/2	Rc1/2	14	14	43	24
From internal thread to external thread
CVPSF G01-G01	R1/8	Rc1/8	8	8	26.5	12
CVPSF G02-G02	R1/4	Rc1/4	10	10	33.5	17
CVPSF G03-G03	R3/8	Rc3/8	11	11	38	20
CVPSF G04-G04	R1/2	Rc1/2	14	14	43	24

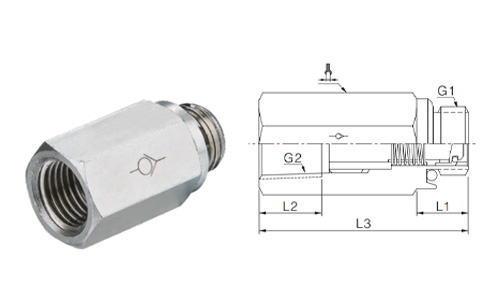

CVPSF、CVPFS-G Series

CVPSF、CVPFS-G Series

Model	G1	G2	L1	L2	L3
From external thread to internal thread
CVPSF G01-G01	G1/8	G1/8	5.5	8	26.5	12
CVPSF G02-G02	G1/4	G1/4	6.5	10	33.5	17
CVPSF G03-G03	G3/8	G3/8	7.5	11	38	20
CVPSF G04-G04	G1/2	G1/2	10	14	43	24
From internal thread to external thread
CVPSF G01-G01	G1/8	G1/8	5.5	8	26.5	12
CVPSF G02-G02	G1/4	G1/4	6.5	10	33.5	17
CVPSF G03-G03	G3/8	G3/8	7.5	11	38	20
CVPSF G04-G04	G1/2	G1/2	10	14	43	24
