HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves
Home » Products » AIR LINE ACCESSORY » A Series Tube Connector » HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves

Related Products

PRODUCT DETAIL

HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves
HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves
HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves
HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves

loading

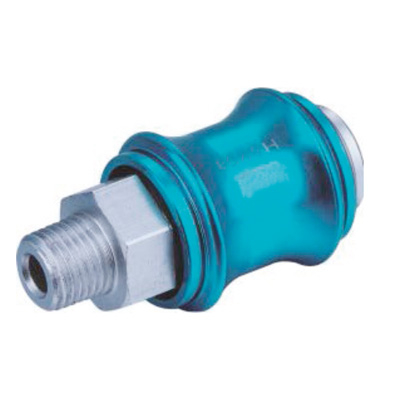

HSV-FS、HSV-SF、HSV-SS、HSV-FF、Series Slide Valves

Share to:
sharethis sharing button
1. Control the opening and closing of air pressure of pneumatic device.
2. When the valve is closed, the residual air pressure in the output end (equipment) will be automatically discharged to protect the pipeline and instrument of the equipment and ensure the safety during maintenance.
Availability:
Inquire Add to Basket

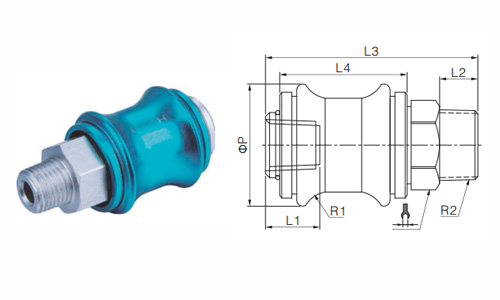

HSV-FS Series

HSV-FS Series


Model

R1/R2

L1/L2

L3

L4

ФP

六角图标

HSV01 FS

R1/8

10

49

27

24

15

HSV02 FS

R1/4

11

58

32.5

30

19

HSV03 FS

R3/8

13

68.5

39

35.5

22

HSV04 FS

R1/2

15

78

44

40

25

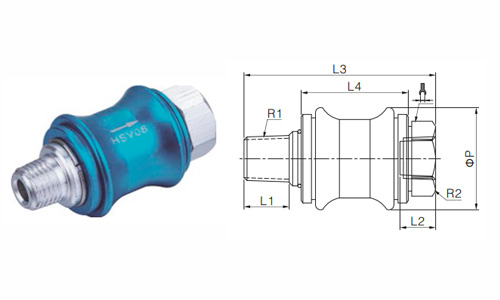

HSV-SF Series

HSV-SF Series


Model

R1/R2

L1/L2

L3

L4

ФP

六角图标

HSV01 SF

R1/8

10

49

27

24

15

HSV02 SF

R1/4

11

58

32.5

30

19

HSV03 SF

R3/8

13

68.5

39

35.5

22

HSV04 SF

R1/2

15

78

44

40

25

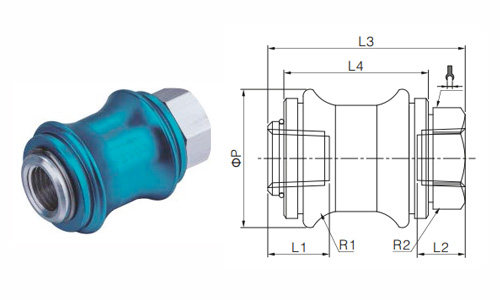

HSV-FF Series

HSV-FF Series


Model

R1/R2

L1/L2

L3

L4

ФP

六角图标

HSV01 FF

R1/8

10

40

27

24

15

HSV02 FF

R1/4

11

47

32.5

30

19

HSV03 FF

R3/8

13

55.5

39

35.5

22

HSV04 FF

R1/2

15

62

44

40

25

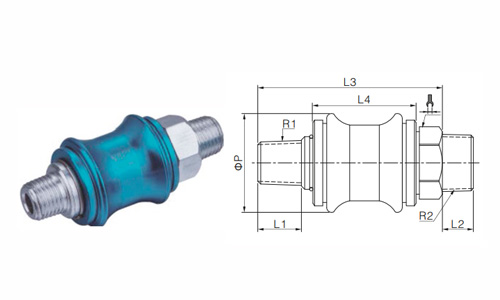

HSV-SS Series

HSV-SS Series

Model

R1/R2

L1/L2

L3

L4

ФP

六角图标六角图标

HSV01 SS

R1/8

10

40

27

24

15

HSV02 SS

R1/4

11

47

32.5

30

19

HSV03 SS

R3/8

13

55.5

39

35.5

22

HSV04 SS

R1/2

15

62

44

40

25
