SC、SCDC、SS、ZSC、SCF、DSC Series Speed Controllers

SC、SCDC、SS、ZSC、SCF、DSC Series Speed Controllers

1. Speed controller of the actuator.
2. Nickel plated copper body can prevent corrosion and pollution.
3. All R and NPT thread sealants act as seals.
4. Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

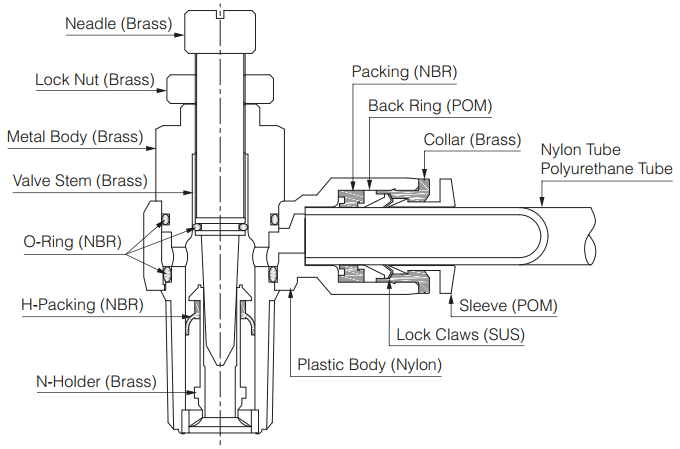

Schematic diagram of structure：

微信图片_20211014131926

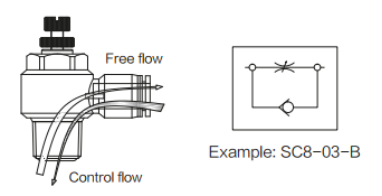

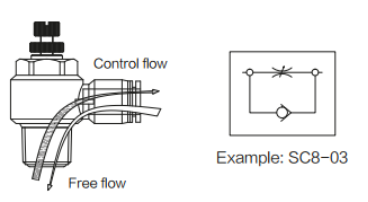

Symbol

微信图片_20211014132107

Specifications：

Using fluids	Air, water(conditional)
Working pressure range	0~1.0MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	0~60℃

Ordering code(example)

SC8-01

1. Exhaust throttle control

Control the air entering from the threaded end, and the air entering

from the joint end from the threaded end, and the outflow is not

controlled.

2. Intake throttle control

The air entering from the joint end is controlled, and the air entering

from the threaded end and flowing out from the joint end are not

controlled.

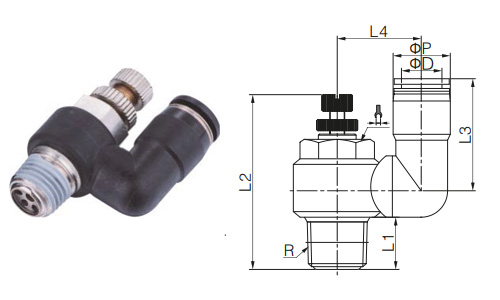

SS-R Series

Model	ФD	R	L1	L2		L3	L4	ФP
Model	ФD	R	L1	MIN	MAX	L3	L4	ФP
SS4-M5	4	M5	3.5	29	31.5	17	10	9	8
SS6-01	6	R1/8	7.5	35	41	18	13	11	12
SS6-02	6	R1/4	10.5	40.5	46	18	15	11	14
SS8-01	8	R1/8	7.5	35	41	25.5	15.5	14.5	12
SS8-02	8	R1/4	10.5	40.5	46	25.5	17	14.5	14
SS10-02	10	R1/4	10.5	40.5	46	27.5	20.5	18.5	14
SS10-03	10	R3/8	11.5	46.5	52	27.5	22	18.5	19
SS12-02	12	R1/4	10.5	40.5	46	29.5	22	21	14
SS12-03	12	R3/8	11.5	46.5	52	29.5	23	21	19

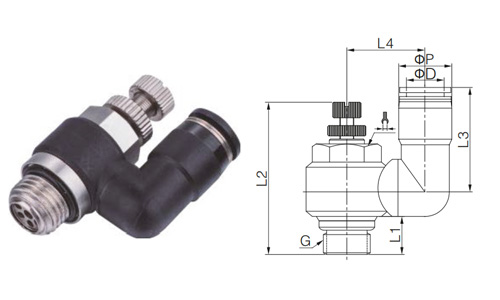

SS-G Series

SS-G Series

Model	ФD	G	L1	L2		L3	L4	ФP
Model	ФD	G	L1	MIN	MAX	L3	L4	ФP
SS6-G01	6	G1/8	5.5	35	41	18	13	11	12
SS6-G02	6	G1/4	8.5	40.5	46	18	15	11	14
SS8-G01	8	G1/8	5.5	35	41	25.5	15.5	14.5	12
SS8-G02	8	G1/4	8.5	40.5	46	25.5	17	14.5	14
SS10-G02	10	G1/4	8.5	40.5	46	27.5	20.5	18.5	14
SS10-G03	10	G3/8	9.5	46.5	52	27.5	22	18.5	19
SS12-G02	12	G1/4	8.5	40.5	46	29.5	22	21	14
SS12-G03	12	G3/8	9.5	46.5	52	29.5	23	21	19

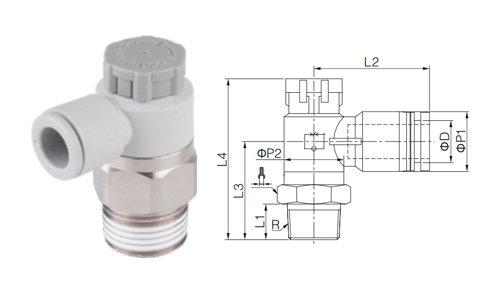

ZSC Series

ZSC Series

Model	ФD	R	L1	L2	L3		L4	ФP1	ФP2
Model	ФD	R	L1	L2	MIN	MAX	L4	ФP1	ФP2
ZSC4-M5	4	M5	3.5	16	28	29	19	9	9	9
ZSC4-01	4	R1/8	7.5	20	35.5	37	24.5	9	13	13
ZSC6-M5	6	M5	3.5	19.5	28	29	19	11	9	9
ZSC6-01		R1/8	7.5	22.5	35.5	37	24.5	13	13	13
ZSC6-02		R1/4	10	24	39	40.5	26.5	13	17	17
ZSC8-01	8	R1/8	7.5	24.5	35.5	37	24.5	14.5	13	13
ZSC8-02		R1/4	10	26	39	40.5	26.5	14.5	17	17
ZSC8-03		R3/8	11	26	42.5	44	29	14.5	19	19
ZSC10-02	10	R1/4	10	28	39	40.5	26.5	18.5	17	17
ZSC10-03		R3/8	11	29	42.5	44	29	18.5	19	19
ZSC10-04		R1/2	14	32	50.5	52	35.5	18.5	24	24
ZSC12-03	12	R3/8	11	29	42.5	44	29	21	19	19
ZSC12-04	12	R1/2	14	34	50.5	52	35.5	21	24	24

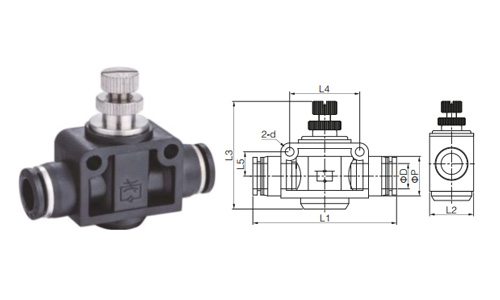

SCF Series

SCF Series

Model	ФD	L1	L2	L3		L4	L5	ФP	ФD
Model	ФD	L1	L2	MIN	MAX	L4	L5	ФP	ФD
SCF4	4	40	11.5	27	29.5	14	6.5	11	3.2
SCF6	6	47	15	39	44.5	20	8.5	13	4.2
SCF8	8	52	18	42.5	47.5	22	9.5	14.5	4.2
SCF10	10	63.5	21	46.5	52.5	26	11	18.5	4.2
SCF12	12	74	28	54	59	32	14	21	4.2
SCF5/32	5/32	40	11.5	27	29.5	14	6.5	11	3.2
SCF3/16	3/16	40	11.5	27	29.5	14	6.5	11	3.2
SCF1/4	1/4	47	15	39	44.5	20	8.5	13	4.2
SCF5/16	5/16	52	18	42.5	47.5	22	9.5	14.5	4.2
SCF3/8	3/8	63.5	21	46.5	52.5	26	11	18.5	4.2
SCF1/2	1/2	74	28	54	59	32	14	21	4.2

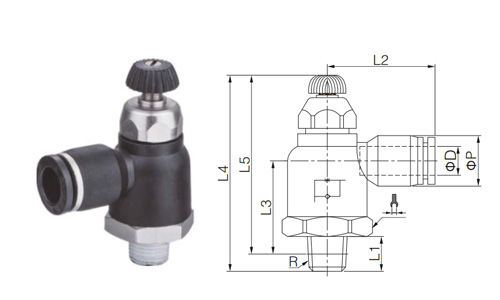

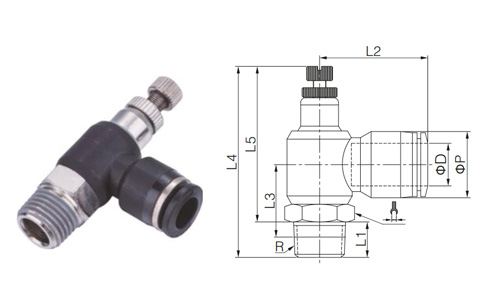

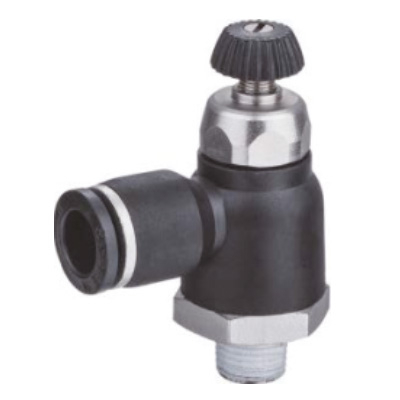

DSC-I Series

DSC-I Series

Model	ФD		R		L1		L2	L3

DSC8-01-I	8		R1/8		8		27.5	20.5
DSC8-02-I			R1/4		11		27.5	21.5
DSC8-03-I			R3/8		11.5		27.5	21.5
Model	L4			L5			ФP
	MIN	MAX		MIN		MAX
DSC8-01-I	47.5	52		43.5		48	14.5	19
DSC8-02-I	50.5	55		44.5		49	14.5	19
DSC8-03-I	52	56.5		45.5		50	14.5	19
