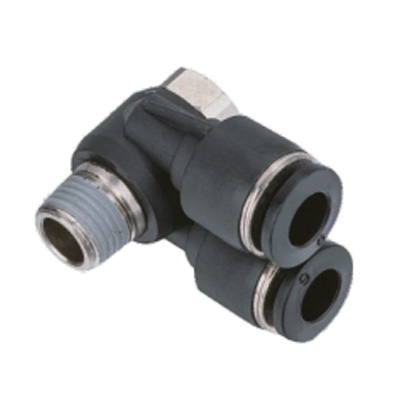

PA 、PH series pneumatic quick plug rotary three-way four-way joint

PA 、PH series pneumatic quick plug rotary three-way four-way joint

Product feature：
Quick plug pneumatic pipe joints are used in pneumatic pipe systems.
A wide variety of fittings can be used in all kinds of tracheal systems.
Even after installation, the direction of the pipe can be freely changed.
The nickel-plated copper body is resistant to corrosion and contamination.
All R and NPT thread adhesives act as seals.
Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

Specifications：

Use medium	Air, water
Pressure range	0~1.2MPa
Vacuum pressure	-100Kpa(10Torr)
Working temperature	-10°~60℃

Ordering code

PA Series

PA Series

Model	ФD	R	L1	L2	L3	L4	L5	ФP
PA4-M5	4	M5	4	22.5	17	13	11	11	8
PA6-01	6	R1/8	7	24	24	20	13	13	12
PA8-01	8	R1/8	7	26	24	20	14.5	14.5	12
PA8-02	8	R1/4	9.5	28	26.5	20.5	14.5	14.5	14
PA10-02	10	R1/4	9.5	31	26.5	20.5	18.5	18.5	14
PA10-03	10	R3/8	10.5	33	32	25.5	18.5	18.5	19
PA12-03	12	R3/8	10.5	34	32	25.5	21	21	19
PA12-04	12	R1/2	14	36.5	39	31	21	21	24
PA6-G01	6	G1/8	5	24	23.5	18.5	13	13	12
PA8-G01	8	G1/8	5	26	23.5	18.5	14.5	14.5	12
PA8-G02	8	G1/4	7.5	28	27	19.5	14.5	14.5	14
PA10-G02	10	G1/4	7.5	31	27	19.5	18.5	18.5	14
PA10-G03	10	G3/8	7.5	33	32	24.5	18.5	18.5	19
PA12-G03	12	G3/8	7.5	34	32	24.5	21	21	19
PA12-G04	12	G1/2	10	36.5	39	29	21	21	24

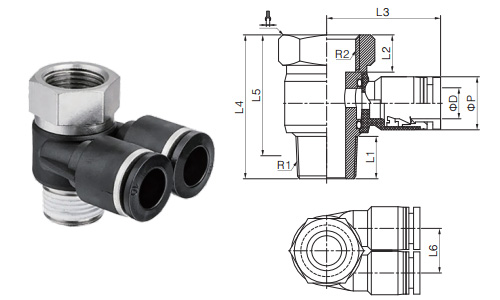

PAF Series

PAF Series

Model	ФD	R	L1	L2	L3	L4	L5	L6	ФP
PAF4-M5	4	M5	4	5	22.5	20	16	11	11	8
PAF6-01		R1/8	7	7	24	28	24	13	13	14
PAF8-01	6	R1/8	7	7	26	28	24	14.5	14.5	14
PAF8-02	6	R1/4	9.5	9.5	28	33	27	14.5	14.5	17
PAF10-02	8	R3/8	9.5	9.5	31	33	27	18.5	18.5	17
PAF10-03	8	R3/8	10.5	10.5	33	39	32.5	18.5	18.5	21
PAF12-03	10	R3/8	10.5	10.5	34	39	32.5	21	21	21
PAF12-04	10	R1/2	14	14	36.5	46.5	38.5	21	21	24
PAF6-G01	12	G1/8	5	7	24	27.5	22.5	13	13	14
PAF8-G01	6	G1/8	5	7	26	27.5	22.5	14.5	14.5	14
PAF8-G02	6	G1/4	7	9.5	28	33	26	14.5	14.5	17
PAF10-G02	8	G1/4	7	9.5	31	33	26	18.5	18.5	17
PAF10-G03	8	G3/8	7.5	10.5	33	39	31.5	18.5	18.5	21
PAF12-G03	10	G3/8	7.5	10.5	34	39	31.5	21	21	21
PAF12-G04	10	G1/2	10	14	36.5	46.5	36.5	21	21	21

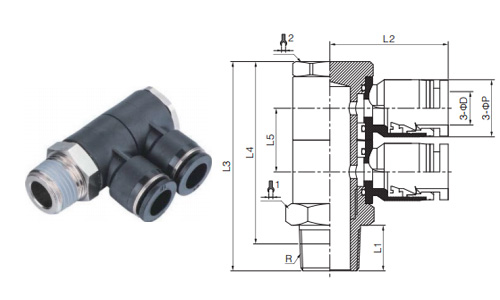

PHW-R Series

PHW-R Series

Model	ФD	R	L1	L2	L3	L4	L5	ФP
PHW4-01	4	R1/8	8	23.5	43	39	13.5	13	14	14
PHW4-02	4	R1/4	11	23.5	46	40	13.5	13	14	14
PHW6-01	6	R1/8	8	23.5	43	39	13.5	13	14	14
PHW6-02		R1/4	11	23.5	46	40	13.5	13	14	14
PHW6-03		R3/8	12	23.5	48	41.5	13.5	13	17	14
PHW8-01	8	R1/8	8	27.5	47	43	15	14.5	17	17
PHW8-02		R1/4	11	27.5	50	44	15	14.5	17	17
PHW8-03		R3/8	12	27.5	51	44.5	15	14.5	17	17
PHW8-04		R1/2	15	27.5	55	47	15	14.5	21	17
PHW10-02	10	R1/4	11	32	58	52	18.5	18.5	21	21
PHW10-03		R3/8	12	32	59	52.5	18.5	18.5	21	21
PHW10-04		R1/2	15	32	62	54	18.5	18.5	21	21
PHW12-02	12	R1/4	11	35	64.5	58.5	21.5	21	24	24
PHW12-03		R3/8	12	35	65.5	59	21.5	21	24	24
PHW12-04		R1/2	15	35	68.5	60.5	21.5	21	24	24

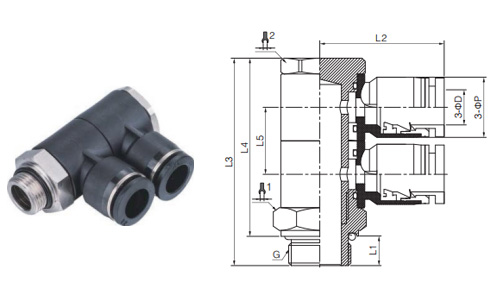

PHW-G Series

PHW-G Series

Model	ФD	G	L1	L2	L3	L4	L5	ФP
PHW4-G01	4	G1/8	5.5	23.5	42	36.5	13.5	13	14	14
PHW4-G02	4	G1/4	6.5	23.5	43	36.5	13.5	13	17	14
PHW6-G01	6	G1/8	5.5	23.5	42	36.5	13.5	13	14	14
PHW6-G02		G1/4	6.5	23.5	43	36.5	13.5	13	17	14
PHW6-G03		G3/8	7.5	23.5	45	37.5	13.5	13	20	14
PHW8-G01	8	G1/8	5.5	27.5	46	40.5	15	14.5	17	17
PHW8-G02		G1/4	6.5	27.5	47	40.5	15	14.5	17	17
PHW8-G03		G3/8	7.5	27.5	48	40.5	15	14.5	20	17
PHW8-G04		G1/2	10	27.5	51.5	41.5	15	14.5	24	17
PHW10-G02	10	G1/4	6.5	32	55	48.5	18.5	18.5	21	21
PHW10-G03		G3/8	7.5	32	56	48.5	18.5	18.5	21	21
PHW10-G04		G1/2	10	32	58.5	48.5	18.5	18.5	24	21
PHW12-G02	12	G1/4	6.5	35	61.5	55	21.5	21	24	24
PHW12-G03		G3/8	7.5	35	62.5	55	21.5	21	24	24
PHW12-G04		G1/2	10	35	65	55	21.5	21	24	24

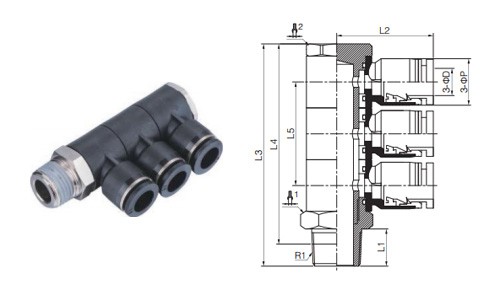

PHT-R Series

PHT-R Series

Model	ФD	R	L1	L2	L3	L4	L5	ФP
PHT4-01	4	R1/8	8	23.5	56.5	52.5	13.5	13	14	14
PHT4-02	4	R1/4	11	23.5	59.5	53.5	13.5	13	14	14
PHT6-01	6	R1/8	8	23.5	56.5	52.5	13.5	13	14	14
PHT6-02		R1/4	11	23.5	59.5	53.5	13.5	13	14	14
PHT6-03		R3/8	12	23.5	61.5	55	13.5	13	17	14
PHT8-01	8	R1/8	8	27.5	62	58	15	14.5	17	17
PHT8-02		R1/4	11	27.5	65	59	15	14.5	17	17
PHT8-03		R3/8	12	27.5	66	59.5	15	14.5	17	17
PHT8-04		R1/2	15	27.5	70	62	15	14.5	21	17
PHT10-02	10	R1/4	11	32	76.5	70.5	18.5	18.5	21	21
PHT10-03		R3/8	12	32	77.5	71	18.5	18.5	21	21
PHT10-04		R1/2	15	32	80.5	72.5	18.5	18.5	21	21
PHT12-02	12	R1/4	11	35	86	80	21.5	21	24	24
PHT12-03		R3/8	12	35	87	80.5	21.5	21	24	24
PHT12-04		R1/2	15	35	90	82	21.5	21	24	24

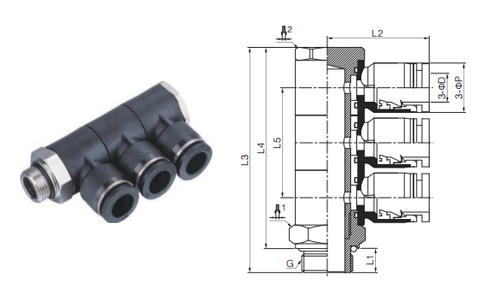

PHT-G Series

PHT-G Series

Model	ФD	R	L1	L2	L3	L4	L5	ФP
PHT4-G01	4	G1/8	5.5	23.5	55.5	50	13.5	13	14	14
PHT4-G02	4	G1/4	6.5	23.5	56.5	50	13.5	13	17	14
PHT6-G01	6	G1/8	5.5	23.5	55.5	50	13.5	13	14	14
PHT6-G02		G1/4	6.5	23.5	56.5	50	13.5	13	17	14
PHT6-G03		G3/8	7.5	23.5	58.5	51	13.5	13	20	14
PHT8-G01	8	G1/8	5.5	27.5	61	55.5	15	14.5	17	17
PHT8-G02		G1/4	6.5	27.5	62	55.5	15	14.5	17	17
PHT8-G03		G3/8	7.5	27.5	63	55.5	15	14.5	20	17
PHT8-G04		G1/2	10	27.5	66.5	56.5	15	14.5	24	17
PHT10-G02	10	G1/4	6.5	32	73.5	67	18.5	18.5	21	21
PHT10-G03		G3/8	7.5	32	74.5	67	18.5	18.5	21	21
PHT10-G04		G1/2	10	32	77	67	18.5	18.5	24	21
PHT12-G02	12	G1/4	6.5	35	83	76.5	21.5	21	24	24
PHT12-G03		G3/8	7.5	35	84	76.5	21.5	21	24	24
PHT12-G04		G1/2	10	35	86.5	76.5	21.5	21	24	24
