CVPC、CVPU、CVPFF Series Stop Fittings

1. If you input from one direction, the air will circulate; if you input from the opposite direction, the air will not circulate.
2. It can ensure that the output side pressure does not change.

Availability:



Inquire Add to Basket

Product Description

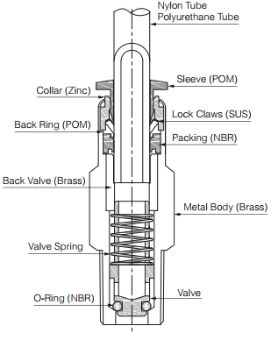

Schematic diagram of structure：

CVPC、CVPU、CVPFF Series Stop Fittings

Symbol

微信图片_20211014110502

Specifications：

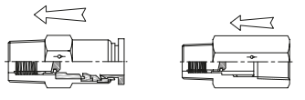

CVPC/CVPF/CVPL	CVPC/CVPF/CVPL-B
Flow from external thread to pipe or internal thread	Flow from pipe or internal thread to external thread

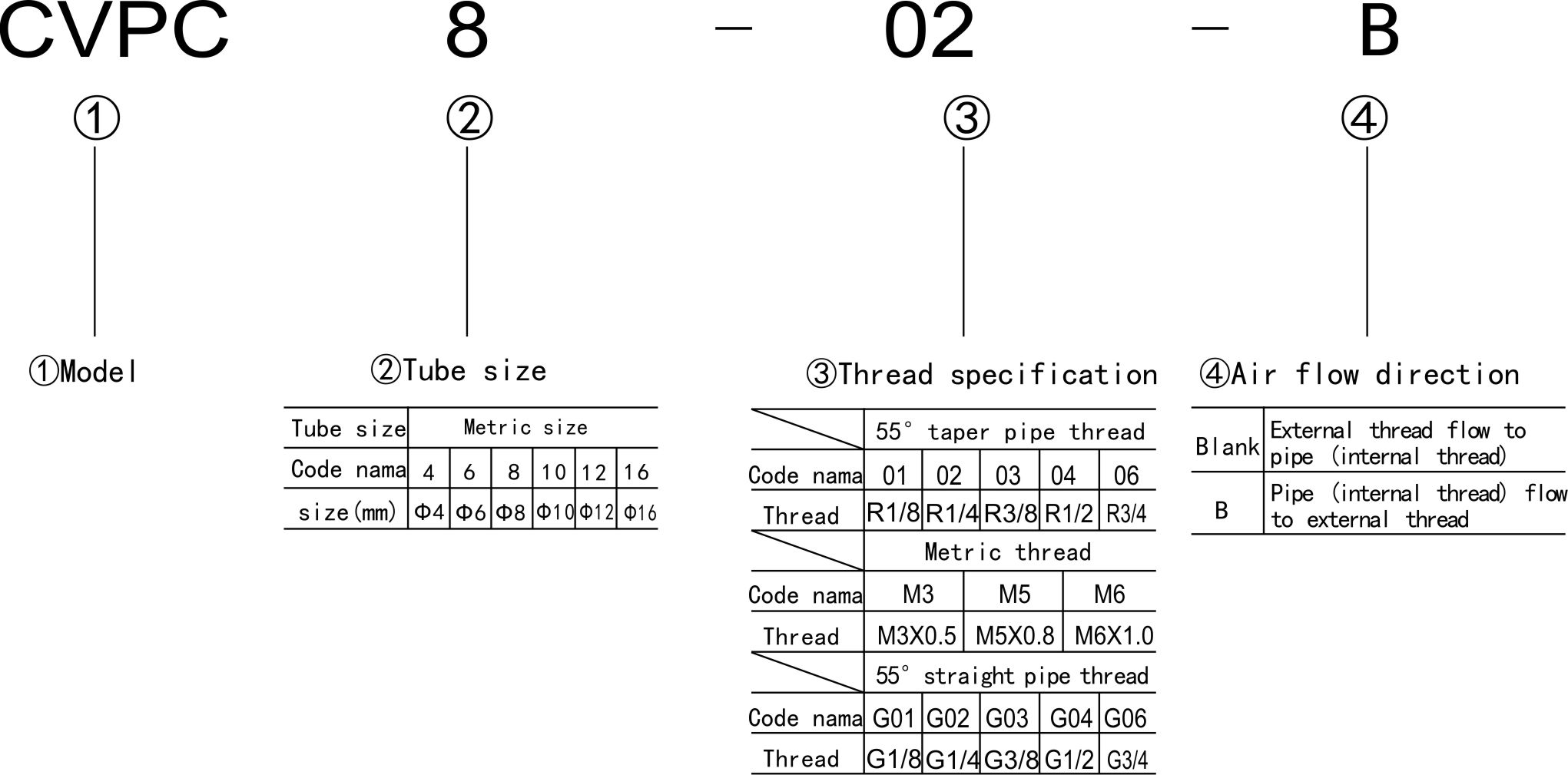

Ordering code(example)

CVPC 8-02-B

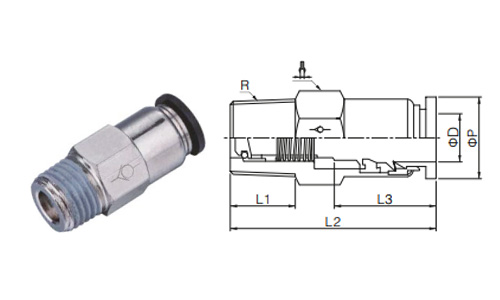

CVPC-R Series

CVPC-R Series

Model	ФD	R	L1	L2	L3	ФP
CVPC4-M5(B)	4	M5	3.5	18.5	15	10	12
CVPC4-M6(B)		M6	4	19	15	10	12
CVPC4-01(B)		R1/8	7.5	21	15	10	12
CVPC6-01(B)	6	R1/8	7.5	22	16	12	12
CVPC6-02(B)	6	R1/4	10	25	16	12	14
CVPC8-01(B)	8	R1/8	7.5	25	18	14	14
CVPC8-02(B)		R1/4	10	27.5	18	14	14
CVPC8-03(B)		R3/8	10.5	28.5	18	14	17
CVPC10-02(B)	10	R1/4	10	30	20	17	17
CVPC10-03(B)		R3/8	10.5	30.5	20	17	17
CVPC10-04(B)		R1/2	13.5	34	20	17	21
CVPC12-03(B)	12	R3/8	10.5	34	23	20	17
CVPC12-04(B)	12	R1/2	13.5	34.5	23	20	21

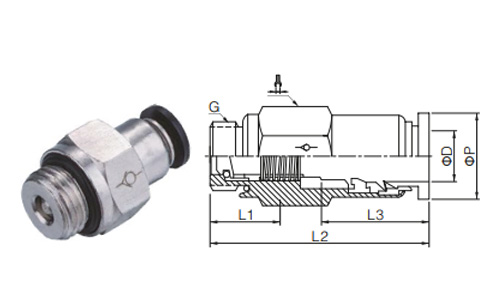

CVPC-G Series

CVPC-G Series

Model	ФD	G	L1	L2	L3	ФP
CVPC4-G01(B)	4	G1/8	5.5	28	15	10	14
CVPC6-G01(B)	6	G1/8	5.5	30	16	12	14
CVPC6-G02(B)	6	G1/4	6.5	30	16	12	17
CVPC8-G01(B)	8	G1/8	5.5	33	18	14	14
CVPC8-G02(B)		G1/4	6.5	35	18	14	17
CVPC8-G03(B)		G3/8	7.5	35	18	14	20
CVPC10-G02(B)	10	G1/4	6.5	41	20	17	17
CVPC10-G03(B)		G3/8	7.5	41	20	17	20
CVPC10-G04(B)		G1/2	10	41	20	17	24
CVPC12-G03(B)	12	G3/8	7.5	44.5	23	20	20
CVPC12-G04(B)	12	G1/2	10	44.5	23	20	24

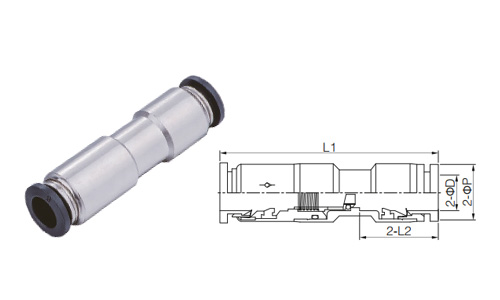

CVVPU Series

CVPU Series

Model	ФD	L1	L2	ФP
CVPU4	4	43	15	10
CVPU6	6	46	16	12
CVPU8	8	53	18	14
CVPU10	10	61.5	20	17
CVPU12	12	67	23	20.5

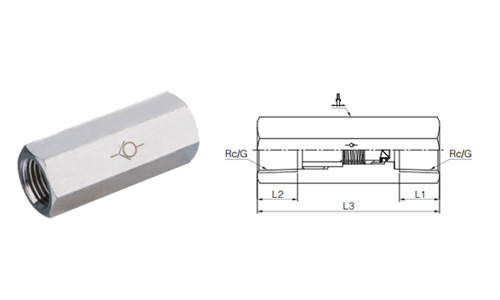

CVPFF Series

CVPFF Series

Model	Rc/G	L1/L2	L3
CVPC4-G01(B)	Rc1/8	8	35	12
CVPC6-G01(B)	Rc1/4	10	44.5	17
CVPC6-G02(B)	Rc3/8	11	50	20
CVPC8-G01(B)	Rc1/2	14	57	24
CVPC8-G02(B)	G1/8	8	35	12
CVPC8-G03(B)	G1/4	10	44.5	17
CVPC10-G02(B)	G3/8	11	50	20
CVPC10-G03(B)	G1/2	14	57	24
