PL series pneumatic quick insert thread right Angle joint

Share to:
sharethis sharing button
Product feature:
Quick plug pneumatic pipe joints are used in pneumatic pipe systems.
A wide variety of fittings can be used in all kinds of tracheal systems.
Even after installation, the direction of the pipe can be freely changed.
The nickel-plated copper body is resistant to corrosion and contamination.
All R and NPT thread adhesives act as seals.
Standard O-rings are used for all straight threads.
Availability:

Schematic diagram of structure




Specifications

Use medium

Air, water

Pressure range

0~1.2MPa

Vacuum pressure

-100Kpa(10Torr)

Working temperature

-10°~60℃



Ordering code:

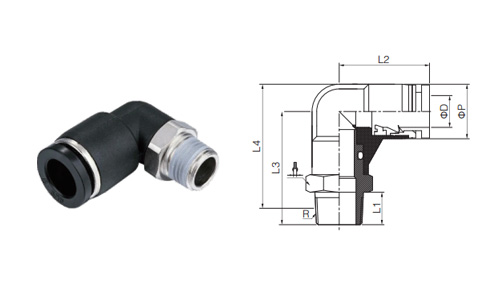

PL-R Series

PL-R Series

Model

ФD

R

L1

L2

L3

L4

ФP

 六角图标

PL4-M5





4

M5

3.5

18.5

18.5

20.5

11

23

PL4-M6

M6

4

18.5

19

20.5

11

23

PL4-01

R1/8

7.5

18.5

21

22.5

11

23

PL4-02

R1/4

10

18.5

24

23.5

11

25

PL4-03

R3/8

10.5

18.5

25

24

11

28

PL4-M5-II



4

M5

3.5

18.5

18.5

20.5

11

20

PL4-M6-II

M6

4

18.5

19

20.5

11

20

PL4-01-II

R1/8

7.5

18.5

21

22.5

11

20

PL4-M3-III



4

M3

3

17

16.5

19

11

8

PL4-M5-III

M5

3.5

17

17

19

11

8

PL4-M6-III

M6

4

17

17.5

19

11

8

PL6-M5







6

M5

3.5

19.5

19.5

22.5

13

12

PL6-M6

M6

4

19.5

20

22.5

13

12

PL6-01

R1/8

7.5

19.5

22

24.5

13

12

PL6-02

R1/4

10

19.5

25

25.5

13

14

PL6-03

R3/8

10.5

19.5

26

26

13

17

PL6-04

R1/2

13.5

19.5

29.5

27.5

13

21

PL6-M3-III



6

M3

3

17.5

17.5

21

13

8

PL6-M5-III

M5

3.5

17.5

18

21

13

8

PL6-M6-III

M6

4

17.5

18.5

21

13

8

PL8-01





8

R1/8

7.5

23

25

28.5

14.5

14

PL8-02

R1/4

10

23

27.5

29

14.5

14

PL8-03

R3/8

10.5

23

28.5

29

14.5

17

PL8-04

R1/2

13.5

23

32

31

14.5

21

PL10-01





10

R1/8

7.5

27

27.5

32.5

18.5

17

PL10-02

R1/4

10

27

30

33

18.5

17

PL10-03

R3/8

10.5

27

30.5

33

18.5

17

PL10-04

R1/2

13.5

27

34

35

18.5

21

PL10-06

R3/4

15

27

36.5

36

18.5

27

PL12-01







12

R1/8

7.5

29.5

28

34.5

21

17

PL12-02

R1/4

10

29.5

30.5

35

21

17

PL12-03

R3/8

10.5

29.5

31

35

21

17

PL12-04

R1/2

13.5

29.5

34.5

36.5

21

21

PL12-06

R3/4

15

29.5

37

38

21

27

PL14-02





14

R1/4

10

30

35.5

41

23

19

PL14-03

R3/8

11

30

37.5

43

23

19

PL14-04

R1/2

14

30

40

43

23

21

PL14-06

R3/4

15

30

42

44

23

27

PL16-02





16

R1/4

10

31.5

36.5

43.5

26

21

PL16-03

R3/8

11

31.5

39

45

26

21

PL16-04

R1/2

14

31.5

41.5

46

26

21

PL16-06

R3/4

15

31.5

43.5

47

26

27

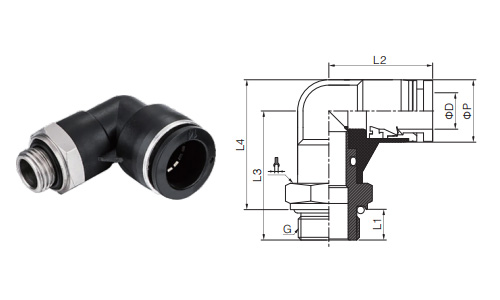

PL-G Series

PL-G Series

Model

ФD

G

L1

L2

L3

L4

ФP

六角图标

PL4-G01



4

G1/8

5.5

18.5

21

21

11

14

PL4-G02

G1/4

6.5

18.5

22

21

11

17

PL4-G03

G3/8

7.5

18.5

24

22

11

20

PL6-G01



6

G1/8

5.5

19.5

22

23

13

14

PL6-G02

G1/4

6.5

19.5

23

23

13

17

PL6-G03

G3/8

7.5

19.5

25

24

13

20

PL8-G01





8

G1/8

5.5

23

24.5

26

14.5

14

PL8-G02

G1/4

6.5

23

25.5

26

14.5

17

PL8-G03

G3/8

7.5

23

27.5

27

14.5

20

PL8-G04

G1/2

10

23

30

27

14.5

24

PL10-G01





10

G1/8

5.5

27

26.5

30

18.5

17

PL10-G02

G1/4

6.5

27

27.5

30

18.5

17

PL10-G03

G3/8

7.5

27

29.5

31

18.5

20

PL10-G04

G1/2

10

27

32

31

18.5

24

PL12-G01





12

G1/8

5.5

29.5

27

32

21

17

PL12-G02

G1/4

6.5

29.5

28

32

21

17

PL12-G03

G3/8

7.5

29.5

30

33

21

20

PL12-G04

G1/2

10

29.5

32.5

33

21

24

PL14-G02



14

G1/4

6.5

30

34

39

23

19

PL14-G03

G3/8

7.5

30

35

39

23

20

PL14-G04

G1/2

10

30

37.5

39

23

24

PL16-G02



16

G1/4

6.5

31.5

35.5

41.5

26

21

PL16-G03

G3/8

7.5

31.5

36.5

41.5

26

21

PL16-G04

G1/2

10

31.5

39

41.5

26

24

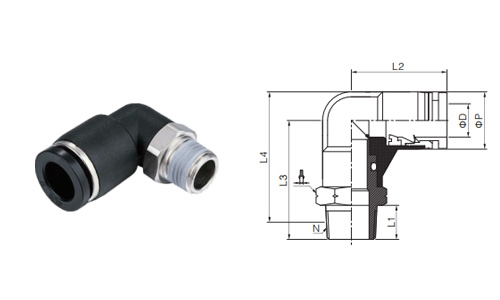

PL-N Series

PL-N Series

Model

ФD

N

L1

L2

L3

L4

ФP

 六角图标

PL5/32-U10



5/32

UNF10-32

3.5

18.5

18.5

20.5

11

7/16

PL5/32-N01

NPT1/8

7.5

18.5

21

22.5

11

7/16

PL5/32-N02

NPT1/4

10

18.5

24

23.5

11

9/16

PL3/16-U10



3/16

UNF10-32

3.5

18.5

18.5

20.5

11

7/16

PL3/16-N01

NPT1/8

7.5

18.5

21

22.5

11

7/16

PL3/16-N02

NPT1/4

10

18.5

24

23.5

11

9/16

PL1/4-U10





1/4

UNF10-32

3.5

19.5

19.5

22.5

13

7/16

PL1/4-N01

NPT1/8

7.5

19.5

22

24.5

13

7/16

PL1/4-N02

NPT1/4

10

19.5

25

25.5

13

9/16

PL1/4-N03

NPT3/8

10.5

19.5

26

26

13

11/16

PL5/16-N01





5/16

NPT1/8

7.5

23

25

28.5

14.5

9/16

PL5/16-N02

NPT1/4

10

23

27.5

29

14.5

9/16

PL5/16-N03

NPT3/8

10.5

23

28.5

29.5

14.5

11/16

PL5/16-N04

NPT1/2

13.5

23

32

31

14.5

7/8

PL3/8-N01





3/8

NPT1/8

7.5

27

27.5

32.5

18.5

11/16

PL3/8-N02

NPT1/4

10

27

30

33

18.5

11/16

PL3/8-N03

NPT3/8

10.5

27

30.5

33.5

18.5

11/16

PL3/8-N04

NPT1/2

13.5

27

31

35

18.5

7/8

PL1/2-N01





1/2

NPT1/8

7.5

29.5

28

34.5

21

11/16

PL1/2-N02

NPT1/4

10

29.5

30.5

35

21

11/16

PL1/2-N03

NPT3/8

10.5

29.5

31

35.5

21

11/16

PL1/2-N04

NPT1/2

13.5

29.5

34.5

36.5

21

7/8

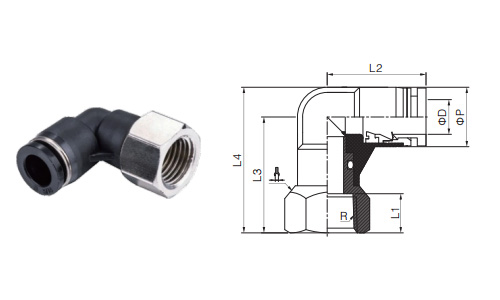

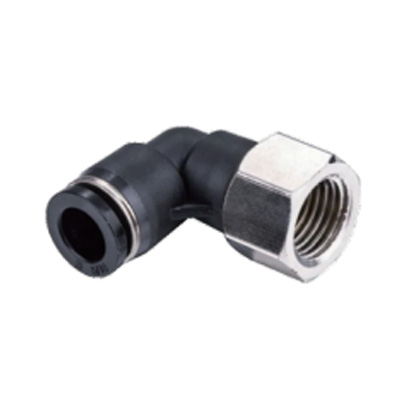

PLF-R Series

PLF-R Series

Model

ФD

R

L1

L2

L3

L4

ФP

六角图标

PLF4-M5





4

M5

5

18.5

17

22.5

11

12

PLF4-M6

M6

5

18.5

17

22.5

11

12

PLF4-01

R1/8

8.5

18.5

20

25.5

11

14

PLF4-02

R1/4

11

18.5

23

28.5

11

17

PLF6-M5







6

M5

5

19.5

18

24.5

13

12

PLF6-M6

M6

5

19.5

18

24.5

13

12

PLF6-01

R1/8

8.5

19.5

21

27.5

13

14

PLF6-02

R1/4

11

19.5

24

30.5

13

17

PLF6-03

R3/8

11.5

19.5

25.5

32

13

20

PLF8-01





8

R1/8

8.5

23

23.5

30.5

14.5

14

PLF8-02

R1/4

11

23

26.5

33.5

14.5

17

PLF8-03

R3/8

11.5

23

28

35

14.5

20

PLF8-04

R1/2

14

23

31.5

38.5

14.5

24

PLF10-01





10

R1/8

8.5

27

25.5

34.5

18.5

17

PLF10-02

R1/4

11

27

28.5

37.5

18.5

17

PLF10-03

R3/8

11.5

27

29

38

18.5

20

PLF10-04

R1/2

14

27

33.5

42.5

18.5

24

PLF12-01





12

R1/8

8.5

29.5

26

36.5

21

17

PLF12-02

R1/4

11

29.5

29

39.5

21

17

PLF12-03

R3/8

11.5

29.5

29.5

40

21

20

PLF12-04

R1/2

14

29.5

34

44.5

21

24

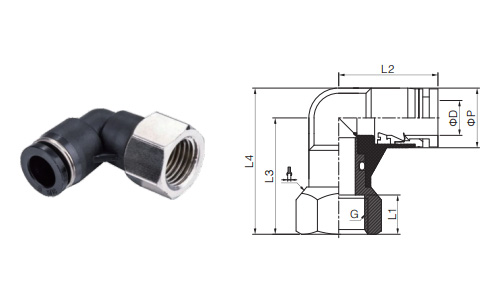

PLF-G Series

PLF-G Series

Model

ФD

G

L1

L2

L3

L4

ФP

六角图标

PLF4-G01



4

G1/8

8.5

18.5

20

25.5

11

14

PLF4-G02

G1/4

11

18.5

23

28.5

11

17

PLF6-G01



6

G1/8

8.5

19.5

21

27.5

13

14

PLF6-G02

G1/4

11

19.5

24

30.5

13

17

PLF6-G03

G3/8

11.5

19.5

25.5

32

13

20

PLF8-G01





8

G1/8

8.5

23

23.5

30.5

14.5

14

PLF8-G02

G1/4

11

23

26.5

33.5

14.5

17

PLF8-G03

G3/8

11.5

23

28

35

14.5

20

PLF8-G04

G1/2

14

23

31.5

38.5

14.5

24

PLF10-G01





10

G1/8

8.5

27

25.5

34.5

18.5

17

PLF10-G02

G1/4

11

27

28.5

37.5

18.5

17

PLF10-G03

G3/8

11.5

27

29

38

18.5

20

PLF10-G04

G1/2

14

27

33.5

42.5

21

24

PLF12-G01





12

G1/8

8.5

29.5

26

36.5

21

17

PLF12-G02

G1/4

11

29.5

29

39.5

21

17

PLF12-G03

G3/8

11.5

29.5

29.5

40

21

20

PLF12-G04

G1/2

14

29.5

34

44.5

21

24




PLM Series

PLM Series

Model

ФD

M

L1

L2

L3

L4

ФP

六角图标

PLM4

4

M12X1.0

18.5

28

5

3.5

11

14

PLM6

6

M14X1.0

19.5

31

5.5

4

13

17

PLM8

8

M16X1.0

23

35

5.5

4.5

14.5

19

PLM10

10

M18X1.0

27

40

7

5

18.5

21

PLM12

12

M22X1.0

29.5

43.5

9

5

21

27

PLM5/32

5/32

M12X1.0

18.5

28

5

3.5

11

14

PLM1/4

1/4

M14X1.0

19.5

31

5.5

4

13

17

PLM5/16

5/16

M16X1.0

23

35

5.5

4.5

14.5

19

PLM3/8

3/8

M18X1.0

27

40

7

5

18.5

21

PLM1/2

1/2

M22X1.0

29.5

43.5

9

5

21

27

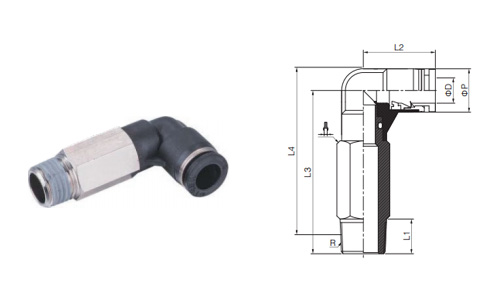

PLL-R Series

PLL-R Series

Model

ФD

R

L1

L2

L3

L4

ФP

 六角图标

PLL4-M5





4

M5

3.5

18.5

30.5

32.5

11

12

PLL4-M6

M6

4

18.5

31

32.5

11

12

PLL4-01

R1/8

7.5

18.5

33

34.5

11

12

PLL4-02

R1/4

10

18.5

36

35.5

11

14

PLL6-M5







6

M5

3.5

19.5

33.5

36.5

13

12

PLL6-M6

M6

4

19.5

34

36.5

13

12

PLL6-01

R1/8

7.5

19.5

36

38.5

13

12

PLL6-02

R1/4

10

19.5

39

39.5

13

14

PLL6-03

R3/8

10.5

19.5

40

40

13

17

PLL6-04

R1/2

13.5

19.5

43.5

41.5

13

21

PLL8-01





8

R1/8

7.5

23

40.5

44

14.5

14

PLL8-02

R1/4

10

23

43

44.5

14.5

14

PLL8-03

R3/8

10.5

23

44

45

14.5

17

PLL8-04

R1/2

13.5

23

47.5

46.5

14.5

21

PLL10-01





10

R1/8

7.5

27

47

52

18.5

17

PLL10-02

R1/4

10

27

49.5

52.5

18.5

17

PLL10-03

R3/8

10.5

27

50

53

18.5

17

PLL10-04

R1/2

13.5

27

53.5

54.5

18.5

21

PLL12-01







12

R1/8

7.5

29.5

50

56.5

21

17

PLL12-02

R1/4

10

29.5

52.5

57

21

17

PLL12-03

R3/8

10.5

29.5

53

57

21

17

PLL12-04

R1/2

13.5

29.5

56.5

59

21

21

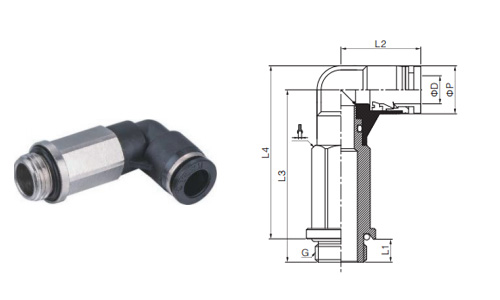

PLL-G Series

PLL-G Series

Model

ФD

G

L1

L2

L3

L4

ФP

六角图标

PLL4-G01

4

G1/8

5.5

18.5

33

33

11

12

PLL4-G02

G1/4

6.5

18.5

34

33

11

12

PLL6-G01



6

G1/8

5.5

19.5

36

37

13

12

PL6-G02

G1/4

6.5

19.5

37

37

13

12

PL6-G03

G3/8

7.5

19.5

39

38

13

16

PL8-G01





8

G1/8

5.5

23

40

41.5

14.5

14

PL8-G02

G1/4

6.5

23

41

41.5

14.5

14

PL8-G03

G3/8

7.5

23

43

42.5

14.5

16

PL8-G04

G1/2

10

23

45.5

42.5

14.5

19

PL10-G01





10

G1/8

5.5

27

46

49.5

18.5

17

PL10-G02

G1/4

6.5

27

47

49.5

18.5

17

PL10-G03

G3/8

7.5

27

49

50.5

18.5

17

PL10-G04

G1/2

10

27

51.5

50.5

18.5

19

PL12-G01





12

G1/8

5.5

29.5

49

54

21

17

PL12-G02

G1/4

6.5

29.5

50

54

21

17

PL12-G03

G3/8

7.5

29.5

52

55

21

17

PL12-G04

G1/2

10

29.5

54.5

55

21

19
