SC、SCDC Series Speed Controllers

1. Speed controller of the actuator.
2. Nickel plated copper body can prevent corrosion and pollution.
3. All R and NPT thread sealants act as seals.
4. Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

微信图片_20211014131926

Symbol

微信图片_20211014132107

Specifications：

Using fluids	Air, water(conditional)
Working pressure range	0~1.0MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	0~60℃

Ordering code(example)

SC8-01

1. Exhaust throttle control

Control the air entering from the threaded end, and the air entering

from the joint end from the threaded end, and the outflow is not

controlled.

2. Intake throttle control

The air entering from the joint end is controlled, and the air entering

from the threaded end and flowing out from the joint end are not

controlled.

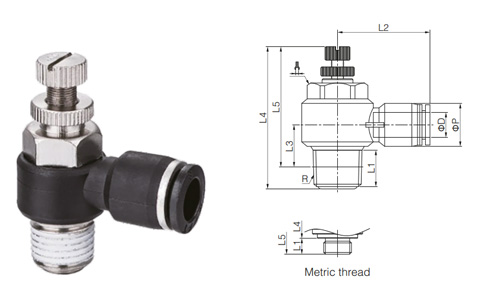

SC Series

SC Series

Model	ФD	R	L1	L2	L3	L4		L5		ФP
Model	ФD	R	L1	L2	L3	MIN	MAX	MIN	MAX	ФP
SC4-M3	4	M3X0.5	3	19.5	7.5	28.5	31.5	25.5	28.5	11	8
SC4-M5		M5X0.8	3.5	19.5	7.5	29	32	25.5	28.5	11	8
SC4-M6		M6X1.0	4	19.5	7.5	29.5	32.5	25.5	28.5	11	8
SC4-M3*		M3X0.5	3	19.5	11	32	35	29	32	11	8
SC4-M5*		M5X0.8	3.5	19.5	11	32.5	35.5	29	32	11	8
SC4-M6*		M6X1.0	4	19.5	11	33	36	29	32	11	8
SC4-01		R1/8	7.5	22.5	10.5	35	40	31	36	13	12
SC4-02		R1/4	10.5	24.5	12.5	41	46.5	35	40.5	13	14
SC6-M3	6	M3X0.5	3	21.5	8.5	28.5	31.5	25.5	28.5	13	8
SC6-M5		M5X0.8	3.5	21.5	8.5	29	32	25.5	28.5	13	8
SC6-M6		M6X1.0	4	21.5	8.5	29.5	32.5	25.5	28.5	13	8
SC6-M5*		M5X0.8	3.5	21.5	11	32.5	35.5	29	32	13	8
SC6-M6*		M6X1.0	4	21.5	11	33	36	29	32	13	8
SC6-01		R1/8	7.5	22.5	10.5	35	40	31	36	13	12
SC6-02		R1/4	10.5	24.5	12.5	41	46.5	35	40.5	13	14
SC6-03		R3/8	11.5	26.5	13.5	46.5	52	40	45.5	13	19
SC6-04		R1/2	15	32	18	54	60	46	52	14.5	24
SC8-M5*	8	M5X0.8	3.5	24.5	10	32.5	35.5	29	32	14.5	8
SC8-M6*		M6X1.0	4	24.5	10	33	36	29	32	14.5	8
SC8-01		R1/8	7.5	25	11.5	35	40	31	36	14.5	12
SC8-02		R1/4	10.5	28	13	41	46.5	35	40.5	14.5	14
SC8-03		R3/8	11.5	29	14.5	46.5	52	40	45.5	14.5	19
SC8-04		R1/2	15	32	18	54	60	46	52	14.5	24
SC10-01	10	R1/8	7.5	30.5	13.5	35	40	31	36	18.5	12
SC10-02		R1/4	10.5	32.5	15	41	46.5	35	40.5	18.5	14
SC10-03		R3/8	11.5	33	16.5	46.5	52	40	45.5	18.5	19
SC10-04		R1/2	15	36	18	54	60	46	52	18.5	24
SC12-01	12	R1/8	7.5	33	15	38	43	34	39	21	14
SC12-02		R1/4	10.5	33	16.5	41	46.5	35	40.5	21	14
SC12-03		R3/8	11.5	35	18	46.5	52	40	45.5	21	19
SC12-04		R1/2	15	36	19.5	54	60	46	52	21	24
SC14-04	14	R1/2	15	39	22	54	61	46	53	26	24
SC16-04	16	R1/2	15	39	22	54	61	46	43	26	24

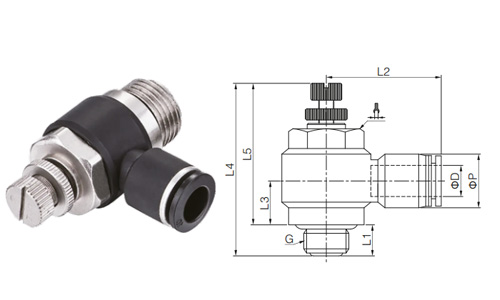

SC-G Series

SC-G Series

Model	ФD	G	L1	L2	L3	L4		L5		ФP
Model	ФD	G	L1	L2	L3	MIN	MAX	MIN	MAX	ФP
SC4-G01	4	G1/8	5.5	22.5	9	35	40	29.5	34.5	13	12
SC4-G02	4	G1/4	8.5	24.5	10	41	46.5	32.5	38	13	14
SC6-G01	6	G1/8	5.5	22.5	9	35	40	29.5	34.5	13	12
SC6-G02		G1/4	8.5	24.5	10	41	46.5	32.5	38	13	14
SC6-G03		G3/8	9.5	26.5	11	46.5	52	37	42.5	13	19
SC6-G04		G1/2	12	32	14.5	54	60	42	48	14.5	24
SC8-G01	8	G1/8	5.5	25	10	35	40	29.5	34.5	14.5	12
SC8-G02		G1/4	8.5	28	10.5	41	46.5	32.5	38	14.5	14
SC8-G03		G3/8	9.5	29	11.5	46.5	52	37	42.5	14.5	19
SC8-G04		G1/2	12	32	14.5	54	50	42	48	14.5	24
SC10-G01	10	G1/8	5.5	30.5	12	35	40	29.5	34.5	18.5	12
SC10-G02		G1/4	8.5	32.5	12.5	41	46.5	32.5	38	18.5	14
SC10-G03		G3/8	9.5	33	13.5	46.5	52	37	42.5	18.5	19
SC10-G04		G1/2	12	36	14.5	54	60	42	48	18.5	24
SC12-G02	12	G1/4	8.5	33	14	41	46.5	32.5	38	21	14
SC12-G03		G3/8	9.5	35	15	46.5	52	37	42.5	21	19
SC12-G04		G1/2	12	36	16	54	60	42	48	21	24
SC14-G04	14	G1/2	12	39	18	55	61	43	49	26	24
SC16-G04	16	G1/2	12	39	18	55	61	43	49	26	24

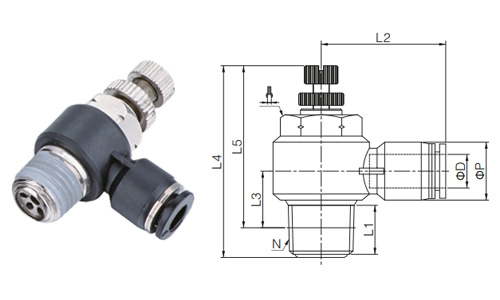

SC-N Series

SC-N Seires

Model	ФD	N	L1	L2	L3	L4		L5		ФP
Model	ФD	N	L1	L2	L3	MIN	MAX	MIN	MAX	ФP
SC5/32-U10	5/32	10-32UNF	3.5	19.5	7.5	29	32	25.5	28.5	11	8
SC5/32-N01		NPT1/8	7.5	22.5	10.5	35	40	31	36	13	12
SC5/32-N02		NPT1/4	10.5	24.5	12.5	41	46.5	35	40.5	13	14
SC1/4-U10	1/4	10-32UNF	3.5	21.5	8.5	29	32	25.5	28.5	13	8
SC1/4-N01		NPT1/8	7.5	22.5	10.5	35	40	31	36	13	12
SC1/4-N02		NPT1/4	10.5	24.5	12.5	41	46.5	35	40.5	13	14
SC1/4-N03		NPT3/8	11.5	26.5	14	16.5	52	40	45.5	13	19
SC5/16-N01	5/16	NPT1/8	7.5	25	11.5	35	40	31	36	14.5	12
SC5/16-N02		NPT1/4	10.5	28	13	41	46.5	35	40.5	14.5	14
SC5/16-N03		NPT3/8	11.5	29	14.5	46.5	52	40	45.5	14.5	19
SC5/16-N04		NPT1/2	15	32	18	54	60	46	52	14.5	24
SC3/8-N01	3/8	NPT1/8	7.5	30.5	13.5	35	40	31	36	18.5	12
SC3/8-N02		NPT1/4	10.5	32.5	15	41	46.5	35	40.5	18.5	14
SC3/8-N03		NPT3/8	11.5	33	16.5	46.5	52	40	45.5	18.5	19
SC3/8-N04		NPT1/2	15	36	18	54	60	46	52	18.5	24
SC1/2-N02	1/2	NPT1/4	10.5	33	16.5	41	46.5	35	40.5	21	14
SC1/2-N03		NPT3/8	11.5	35	18	46.5	52	40	46.5	21	19
SC1/2-N04		NPT1/2	15	36	19.5	54	60	46	52	21	24

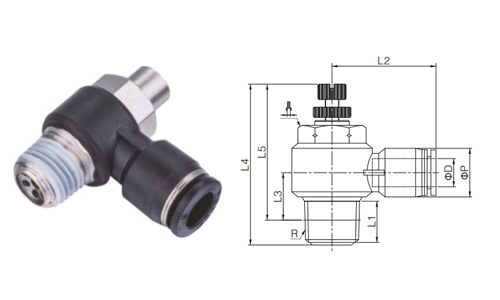

SCDC-R Series

SCDC-R Series

Model	ФD	R	L1	L2	L3	L4		L5		ФP
Model	ФD	R	L1	L2	L3	MIN	MAX	MIN	MAX	ФP
SCDC4-M5	4	M5X0.8	3.5	19.5	7.5	23.5	24.5	20	21	11	8
SCDC4-01		R1/8	7.5	22.5	10	31.5	32.5	27.5	28.5	13	12
SCDC4-03		R1/4	10.5	24.5	12.5	38	39	32	33	13	14
SCDC6-M5	6	M5X0.8	3.5	21.5	8.5	23.5	24.5	20	21	13	8
SCDC6-01		R1/8	7.5	22.5	10	31.5	32.5	27.5	28.5	13	12
SCDC6-02		R1/4	10.5	24.5	12.5	38	39	32	33	13	14
SCDC6-03		R3/8	11.5	26.5	14	43	44	36.5	37.5	13	19
SCDC6-04		R1/2	15	32	18	50	51	42	43	14.5	24
SCDC8-01	8	R1/8	7.5	25	11.5	31.5	32.5	27.5	28.5	14.5	12
SCDC8-02		R1/4	10.5	28	13	38	39	32	33	14.5	14
SCDC8-03		R3/8	11.5	29	14.5	43	44	36.5	37.5	14.5	19
SCDC8-04		R1/2	15	32	18	50	51	42	43	14.5	24
SCDC10-01	10	R1/8	7.5	30.5	13.5	31.5	32.5	27.5	28.5	18.5	12
SCDC10-02		R1/4	10.5	32.5	15	38	39	32	33	18.5	14
SCDC10-03		R3/8	11.5	33	16.5	43	44	36.5	37.5	18.5	19
SCDC10-04		R1/2	15	36	18	50	51	42	43	18.5	24
SCDC12-02	12	R1/4	10.5	33	16.5	38	39	32	33	21	14
SCDC12-03		R3/8	11.5	35	18	43	44	36.5	37.5	21	19
SCDC12-04		R1/2	15	36	19.5	50	51	42	43	21	24

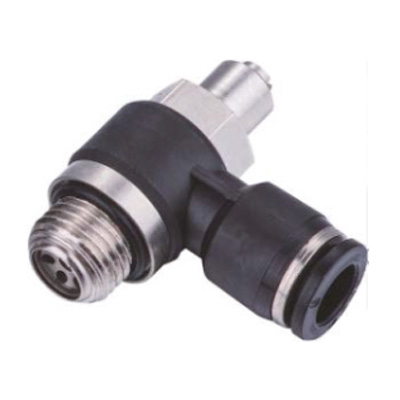

SCDC-G Series

SCDC-G Series

Model	ФD	G	L1	L2	L3	L4		L5		ФP
Model	ФD	G	L1	L2	L3	MIN	MAX	MIN	MAX	ФP
SCDC4-G01	4	G1/8	5.5	22.5	10	31.5	32.5	26	27	13	12
SCDC4-G02	4	G1/4	8.5	24.5	12.5	38	39	29.5	30.5	13	14
SCDC6-G01	6	G1/8	5.5	22.5	10	31.5	32.5	26	27	13	12
SCDC6-G02		G1/4	8.5	24.5	12.5	38	39	29.5	30.5	13	14
SCDC6-G03		G3/8	9.5	26.5	14	43	44	33.5	34.5	13	19
SCDC6-G04		G1/2	12	32	18	50	51	38	39	14.5	24
SCDC8-G01	8	G1/8	5.5	25	11.5	31.5	32.5	26	27	14.5	12
SCDC8-G02		G1/4	8.5	28	13	38	39	39.5	30.5	14.5	14
SCDC8-G03		G3/8	9.5	29	14.5	43	44	33.5	34.5	14.5	19
SCDC8-G04		G1/2	12	32	18	50	51	38	39	14.5	24
SCDC10-G01	10	G1/8	5.5	30.5	13.5	31.5	32.5	26	27	18.5	12
SCDC10-G02		G1/4	8.5	32.5	15	38	39	29.5	30.5	18.5	14
SCDC10-G03		G3/8	9.5	33	16.5	43	44	33.5	34.5	18.5	19
SCDC10-G04		G1/2	12	36	18	50	51	38	39	18.5	24
SCDC12-G02	12	G1/4	8.5	33	16.5	38	39	29.5	30.5	21	14
SCDC12-G03		G3/8	9.5	35	18	43	44	33.5	34.5	21	19
SCDC12-G04		G1/2	12	36	19.5	50	51	38	39	21	24
