PGJ, PLJ、PYJ、PKJ、 Series pneumatic intubation joints

Share to:
sharethis sharing button
Product feature：
Quick plug pneumatic pipe joints are used in pneumatic pipe systems.
A wide variety of fittings can be used in all kinds of tracheal systems.
Even after installation, the direction of the pipe can be freely changed.
The nickel-plated copper body is resistant to corrosion and contamination.
All R and NPT thread adhesives act as seals.
Standard O-rings are used for all straight threads.
Availability:
Inquire Add to Basket

Schematic diagram of structure：



Specifications：

Use medium

Air, water(conditional)

Working pressure range

0~1.2MPa

Use vacuum pressure

-100Kpa(10Torr)

Working temperature range

-10°~60℃



Ordering code:

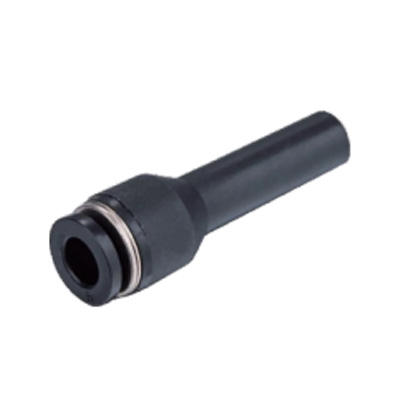

PGJ Series

PGJ Series

Model

ФD1

ФD2

L1

L2

ФP

PGJ6-4

6

4

38.5

22

11

PGJ8-4

8

4

40

25

11

PGJ8-6

8

6

41

25

13

PGJ10-6

10

6

41

26.5

13

PGJ10-8

10

8

45.5

26.5

14.5

PGJ12-6

12

6

40

26.5

13

PGJ12-8

12

8

43

26.5

14.5

PGJ12-10

12

10

51

26.5

18.5

PGJ1/4-5/32

1/4

5/32

38.5

22

11

PGJ5/16-5/32

5/16

5/32

40

25

11

PGJ5/16-1/4

5/16

1/4

41

25

13

PGJ3/8-1/4

3/8

1/4

41

26.5

13

PGJ3/8-5/16

3/8

5/16

45.5

26.5

14.5

PGJ1/2-1/4

1/2

1/4

40

26.5

13

PGJ1/2-5/16

1/2

5/16

43

26.5

14.5

PGJ1/2-3/8

1/2

3/8

51

26.5

18.5

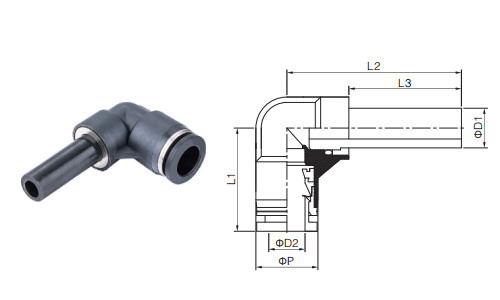

PLJ Series

PLJ Series

Model

ФD1

ФD2

L1

L2

L3

ФP

PLJ4

4

4

18.5

28.5

18.5

11

PLJ6-4

6

4

18.5

29

19

11

PLJ6

6

6

19.5

30

19

13

PLJ8-6

8

6

22.5

35.5

22

14.5

PLJ8

8

8

23

35.5

22

14.5

PLJ10-8

10

8

26.5

39

23.5

18.5

PLJ10

10

10

27

39

23.5

18.5

PLJ12-10

12

10

27

42

26.5

18.5

PLJ12

12

12

29.5

42.5

26.5

21

PLJ5/32

5/32

5/32

18.5

28.5

18.5

11

PLJ1/4-5/32

1/4

5/32

18.5

29

19

11

PLJ1/4

1/4

1/4

19.5

30

19

13

PLJ5/16-1/4

5/16

1/4

22.5

35.5

22

14.5

PLJ5/16

5/16

5/16

23

35.5

22

14.5

PLJ3/8-5/16

3/8

5/16

26.5

39

23.5

18.5

PLJ3/8

3/8

3/8

27

39

23.5

18.5

PLJ1/2-3/8

1/2

3/8

27

42

26.5

18.5

PLJ1/2

1/2

1/2

29.5

42.5

26.5

21

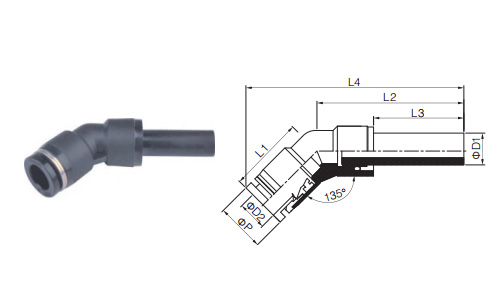

PLJ135° Series

PLJ 135° Series

Model

ФD1

ФD2

ФP

L1

L2

L3

L4

PLJ135° 4

4

4

11

16.5

29

18.5

44

PLJ135° 6-4

6

4

11

16.5

29.5

19

44.5

PLJ135° 6

6

6

13

17.5

32

19

48.5

PLJ135° 8-6

8

6

14.5

20

38

22

56

PLJ135° 8

8

8

14.5

21

38

22

57.5

PLJ135° 10-8

10

8

18.5

23

42

23.5

63

PLJ135° 10

10

10

18.5

24

42

23.5

64.5

PLJ135° 12-10

12

10

18.5

24

45

26.5

67.5

PLJ135° 12

12

12

21

26

47

26.5

72

PLJ135° 5/32

5/32

5/32

11

16.5

29

18.5

44

PLJ135° 1/4-5/32

1/4

5/32

11

16.5

29.5

19

44.5

PLJ135° 1/4

1/4

1/4

13

17.5

32

19

48.5

PLJ135° 5/16-1/4

5/16

1/4

14.5

20

38

22

56

PLJ135° 5/16

5/16

5/16

14.5

21

38

22

57.5

PLJ135° 3/8-5/16

3/8

5/16

18.5

23

42

23.5

63

PLJ135° 3/8

3/8

3/8

18.5

24

42

23.5

64.5

PLJ135° 1/2-3/8

1/2

3/8

18.5

24

45

26.5

67.5

PLJ135°1/2

1/2

1/2

21

26

47

26.5

72

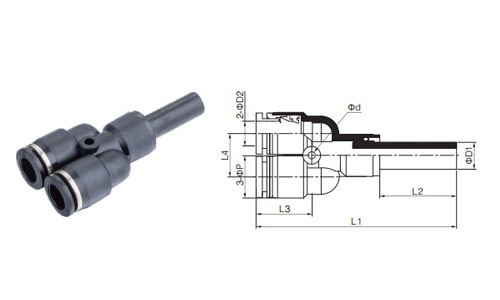

PYJ Series

PYJ Series

Model

ФD1

ФD2

L1

L2

L3

L4

ФP

Фd

PYJ4

4

4

48.5

18.5

14

11

11

3.2

PYJ6-4

6

4

49.5

19

14

11

11

3.2

PYJ6

6

6

52.5

19

15

13

13

3.2

PYJ8-6

8

6

61

22

18

14.5

14.5

4.2

PYJ8

8

8

61.5

22

18.5

14.5

14.5

4.2

PYJ10-8

10

8

67.5

23.5

20.5

18

18.5

4.2

PYJ10

10

10

68

23.5

21

18

18.5

4.2

PYJ12-10

12

10

71

26.5

21

18

18.5

4.2

PYJ12

12

12

76

26.5

22

21

21

4.2

PYJ5/32

5/32

5/32

48.5

18.5

14

11

11

3.2

PYJ1/4-5/32

1/4

5/32

49.5

19

14

11

11

3.2

PYJ1/4

1/4

1/4

52.5

19

15

13

13

4.2

PYJ5/16-1/4

5/16

1/4

61

22

18

14.5

14.5

3.2

PYJ5/16

5/16

5/16

61.5

22

18.5

14.5

14.5

4.2

PYJ3/8-5/16

3/8

5/16

67.5

23.5

20.5

18

18.5

4.2

PYJ3/8

3/8

3/8

68

23.5

21

18

18.5

4.2

PYJ1/2-3/8

1/2

3/8

71

26.5

21

18

18.5

4.2

PYJ1/2

1/2

1/2

76

26.5

22

21

21

4.2

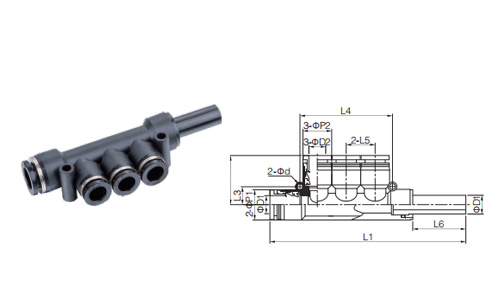

PKJ Series

PKJ Series

Model

ФD1

ФD2

ФP1

ФP2

L1

L2

L3

L4

L5

L6

Фd

PKJ4

4

4

13

11

72.5

19

8

37.5

11

18.5

3.2

PKJ6-4

6

4

13

11

74.5

19

8

37.5

11

19

3.2

PKJ6

6

6

14.5

13

83.5

23

8.5

42

13

19

3.2

PKJ8-4

8

4

14.5

13

87.5

22

8.5

42

13

22

3.2

PKJ8-6

8

6

14.5

13

87.5

23

8.5

42

13

22

3.2

PKJ8

8

8

18.5

14.5

95.59

25

11

47.5

14.5

22

4.2

PKJ10-6

10

6

18.5

14.5

97.5

24

11

47.5

14.5

23.5

4.2

PKJ10-8

10

8

18.5

14.5

97.5

25

11

47.5

14.5

23.5

4.2

PKJ10

10

10

21

18.5

110

29.5

12.5

60

18.5

23.5

4.2

PKJ12-6

12

6

21

18.5

115

28

12.5

60

18.5

26.5

4.2

PKJ12-8

12

8

21

18.5

115

29

12.5

60

18.5

26.5

4.2

PKJ12-10

12

10

21

18.5

115

29.5

12.5

60

18.5

26.5

4.2

PKJ12

12

12

21

21

121

29.5

13

68.5

21

26.5

4.2
