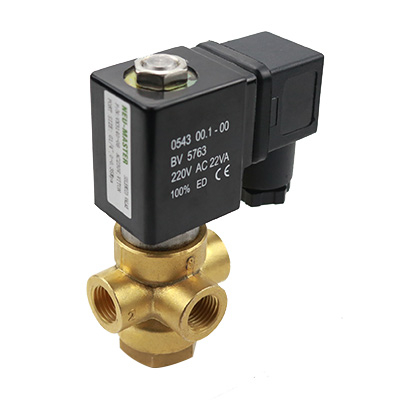

VX Series 3 Way Solenoid Valve

●VX31/32/33 3 Way Solenoid Valve /3 Way Solenoid Valve 1/8" /3 Way Solenoid Valve 1/4" /3 Way Solenoid Valve 12v /3
Way Solenoid Valve 24v
●Medium: Water;;Air ;Neutral Gas;Air;Steam
●Acting Type: Direct Acting
●Seal Material: EPDM;VITON -5∽150℃ ;NBR-5∽80℃
●Port Size :1/8";1/4", ZG ,PT, NPT are available

Availability:



Inquire Add to Basket

Product Description

VX31/32/33 3 Way Solenoid Valve /3 Way Solenoid Valve 1/8" /3 Way Solenoid Valve 1/4" /3 Way Solenoid Valve 12v /3 Way Solenoid Valve 24v

●VX31/32/33 3 Way Solenoid Valve /3 Way Solenoid Valve 1/8" /3 Way Solenoid Valve 1/4" /3 Way Solenoid Valve 12v /3

Way Solenoid Valve 24v

●Medium: Water;;Air ;Neutral Gas;Air;Steam

●Acting Type: Direct Acting

●Seal Material: EPDM;VITON -5∽150℃ ;NBR-5∽80℃

●Port Size :1/8";1/4", ZG ,PT, NPT are available

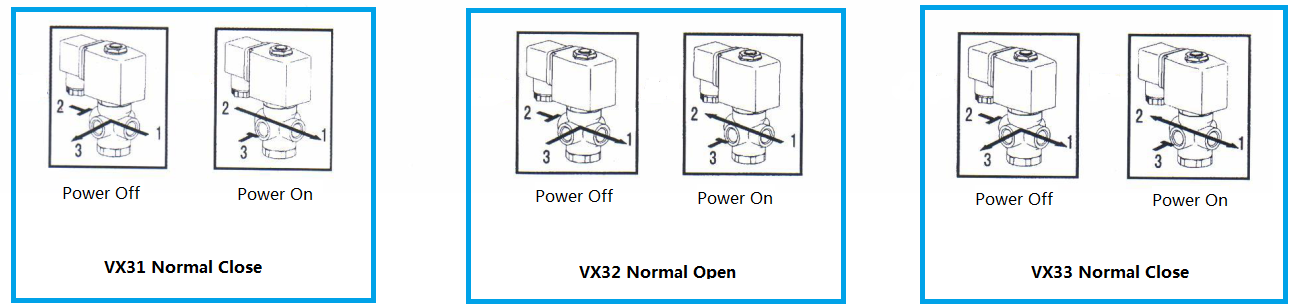

3 Way Solenoid Valve Symbol:

VX33-3-Way-Solenoid-Valve-Symbol

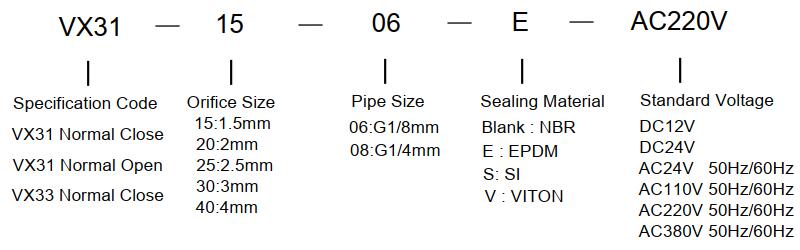

3 Way Solenoid Valve Code:

VX31-3-Way-Solenoid-Valve-Ordering-code

Solenoid Operated Valve Feature:

1.Equal to SMC VX31 Series solenoid operated valve

2. conformity managed in accordance with standards:

ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.

3 Way Solenoid Valve Specification:

Solenoid Model	Orifice Size	Cv Value	Port Size	Working Pressure(Kgs/c㎡)		Medium Temperature	Body Material
Solenoid Model	Orifice Size	Cv Value	Port Size	AC	DC	Medium Temperature	Body Material
VX31	1.5	0.07	1/4" Or 1/8"	13	11	NBR:-5∽85℃ EPDM:-5∽150℃ VITON:-10∽150℃	BRASS
	2.0	0.14		11	9
	2.5	0.21		9	7
	3.0	0.25		6	4
	4.0	0.35		3.5	2
VX32	1.5	0.07		13	11
	2.0	0.14		11	9
	2.5	0.21		9	7
	3.0	0.25		6	4
	4.0	0.35		3.5	2
VX33	1.5	0.07		7	5
	2.0	0.14		5	4
	2.5	0.21		4	3
	3.0	0.25		2.5	2
	4.0	0.35		1.7	0.8

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the 3 Way Solenoid Valve, delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: 3 Way Solenoid Valve, 3 Way Solenoid Valve 1/8", 3 Way Solenoid Valve 1/4", 3 Way Solenoid Valve 12v, 3 Way Solenoid Valve 24v are for the liquid flow control.
