Model: KL523-08;KL523-10;KL523-15;KL523-20;KL523-25
NEU-MASTER
KL523-08;KL523-10;KL523-15;KL523-20;KL523-25
Availability: | |
---|---|

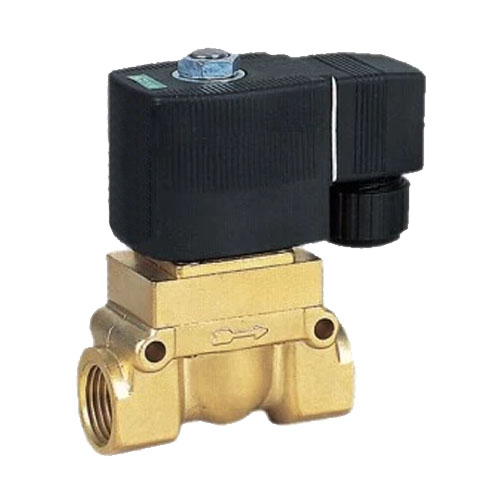

KL523 Sereis High Temperature High Pressure Electromagnetic Valve / Electromagnetic Valve 1/2" / Electromagnetic Valve 3/4" / Electromagnetic Valve 1" ●Model:KL523 Sereis High Temperature High Pressure Electromagnetic Valve / Electromagnetic Valve 1/2" / Electromagnetic Valve 3/4" / Electromagnetic Valve 1" ●Medium: Water;Oil(Below 50 CST);Air ;Neutral Gas ●Acting Type: Direct Acting ●Seal Material: VITON 0∽180℃ ●Port Size :1/4",3/8";1/2";3/4";1" ZG ,PT, NPT are available Electromagnetic Valve Catalog:

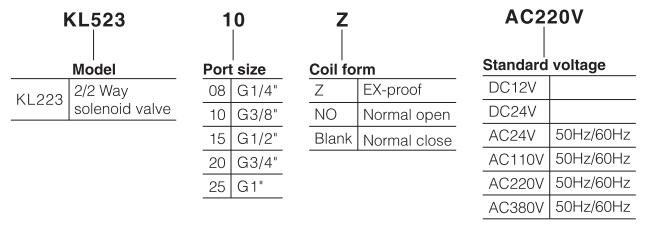

Electromagnetic Valve Symbol: Electromagnetic Valve Ordering Code: |
Electromagnetic Valve Feature:
Media temperature up to 90℃
Operating pressure up to 5Mpa
Ideal electromagnetic two ways valve for the medium wh viscosity≤1㎡/s; including water,gas,acetylene,liqudfied gas
Coil:Encapsulation with thermoset plastics .Protection grade IP65. Ambient temperature:-20∽50℃
Pilot operated ,PTFE seal, high reliability
The Electromagnetic Valve Specification:
Electromagnetic Valve Model | KL5231008 | KL5231010 | KL5231015 | KL5231020 | KL5231025 | |
Pipe Thread | 1/4" | 3/8" | 1/2" | 3/4" | 1" | |
Orifice Size (mm) | 13 | 25 | ||||
Operating Pressure Mpa | 0.3∽5.0Mpa | 0.3∽3.5Mpa | ||||
Ambient Temperature | -20∽55℃ | |||||
Medium Temperature | 0∽180℃ | |||||
Frequency (Hz) | ≥1 | ≥0.55 | ||||
Kv Value | 3.6 | 11 | ||||
Coil Power Consumption | AC(VA) | 14 Protection Degree: IP65 | ||||
DC(W) | 8 Protection Degree: IP65 | |||||
Voltage | AC :50Hz 24V 36V 110V 220V DC: 24V 12V |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electricmagnetic Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Electric Solenoid Valves, Electric Solenoid Valves 1/4", Electric Solenoid Valve 1/2", Electric Solenoid Valves 1", Electric Solenoid Valves 2" are for the liquid flow control.
