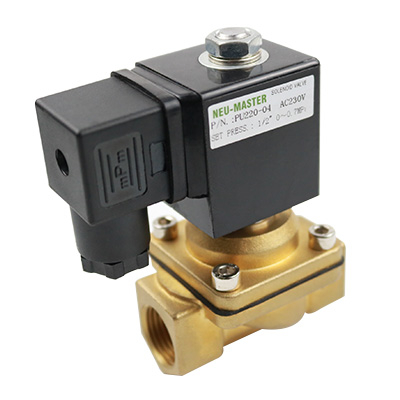

PU220 Series Electric Valves / Electric Water Valve / Electric Solenoid Valve ●Model:PU220-01;PU220-02;PU220-03;PU220-04;PU220-06;PU220-08 ●Medium: Water;Oil(Below 50 CST);Air ●Acting Type: Direct Acting; ●CV Value:0.10;0.18;1.00;4.00;8.6;11 ●Operate Pressure:1.0 Mpa;10Bar;140Psi ●Seal Material: EPDM or Viton for -5∽150℃ ; NBR for -5∽80℃ ●Port Size :1/8",1/4";3/8";1/2";3/4";1" ZG ,PT, NPT are available Electric Valves Catalog:

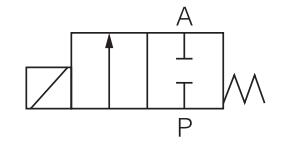

Electric Solenoid Valve Symbol:

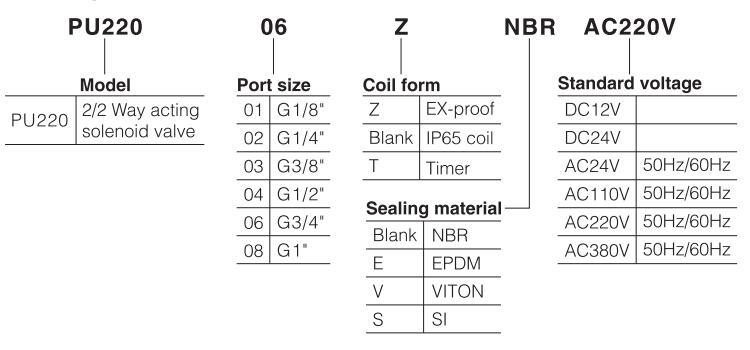

Electric Water Solenoid Valve Ordering Code:
|
Electric Valve Feature:
Normally closed (N/C)electric solenoid valve is constructed with a durable brass body, two way inlet and outlet ports with female threaded (NPTor G ) connections, and heat and oil resistant Viton gasket.
Voltage range + or - 10%. 18 Watt power rating.
Semi-direct lift valve operates from 0 PSI to a maximum pressure of 145 PSI (0 MPa to 1.0 MPa). Operational pressure range for water: 0 to 101 PSI; for oil: 0 to 72 PSI; for air or gases: 0 to 101 PSI.
Operational temperature range is 14 to 248 degrees Fahrenheit; -10 to +120 degrees Celsius. Suitable for outdoor use; not for use underwater.
Suitable for use with hot or cold water, gases, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve. In cases where this is necessary, it is recommended user install a computer fan to keep valve cool.
Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems or to control flow of propane gas. This solenoid valve serves as an excellent propane regulator.
conformity managed in accordance with standards:
ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.
The Electric Valve Specification:
| Electric Valve Model | PU220-01 | PU220-02 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Fliud | Air ;Water;Oil; | |||||
| Acting | Direct Acting | |||||
| Type | Normally Closed | |||||
| Orifice Size | 16 | 16 | 20 | 25 | 35 | 40 |
| Cv Value | 0.1 | 0.18 | 1.0 | 4.0 | 8.6 | 11 |
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" |
| Viscosity Limit | Under 50CST | |||||
Operating Pressure Range kg/c㎡ | AC: 0∽8.5 DC: 0∽7.0 | AC: 0∽8.5 DC: 0∽7.0 | AC: 0∽10 DC: 0∽7.0 | AC: 0∽8.5 DC: 0∽7.0 | AC: 0∽8.5 DC: 0∽6.0 | AC: 0∽7.0 DC: 0∽5.0 |
| Max Pressure Resistance | 1.0Mpa | |||||
| Material Body | Brass | |||||
| Voltage Range | ±10% | |||||
| Seal Material | EPDM,Viton for -5∽150℃ ; NBR for -5∽80℃ | |||||
| Material of oil seal | NBR;EPDM;VITON | |||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the High Pressure Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Electric Valve, Electric Water Valve, Electric Solenoid Valve, Electric Valves, electromagnetic valve, electromagnet valve are for the liquid flow control.
