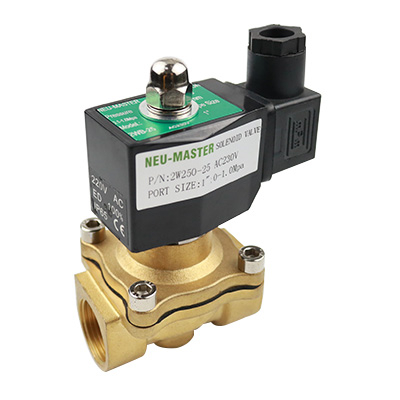

2W250-25 Water Solenoid Valve / Water Solenoid Valve 12v / Water Solenoid Valve 24v/ Water Solenoid Valve 110v / Water Solenoid Valve 120v / Water Solenoid Valve 240v(2/2Way) ●Solenoid Model:2W160-10;2W160-15;2W200-20;2W250-25;2W350-35;2W400-40;2W500-50 ●Medium: Water;Oil;Air ●Acting Type: Direct Acting; ●CV Value:4.8;4.8;12;24;29;48 ●Operate Pressure:Air 0-1.0Mpa ;Water 0-0.7Mpa; Oil: 0-0.9Mpa ●Seal Material: Viton for -5∽150℃ ; NBR for -5∽80℃ ●Port Size :3/8",1/2";3/4";1";1-1/4";1-1/2";2" ZG ,PT, NPT are available Water Solenoid Valve Catalog:
Water Solenoid Valve Symbol:
Water Solenoid Valve 12v Ordering Code:
|
Water Solenoid Valve 12v Feature:
2W Series High Pressure Valve
Directing acting and normal closed type 2/2 ways High pressure air solenoid valve .Its high sensitivity allows it to change direction quickly
The structure is compact and working for high pressure medium.
The valve body is made by brass or stainless steel which is heat resistance and the coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
360° rotary solenoid coil
The square power connector: possible positioning every 90°
This valve has to be mounted as indicated on the drawing
Water Solenoid Valve 12v Specification:
| Water Solenoid Valve | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| High Pressure Fliud | Air ;Water;Oil | ||||||
| Acting | Direct Acting | ||||||
| Type | Normally Closed/Normally Open | ||||||
| Orifice Size | 16 | 16 | 20 | 25 | 35 | 40 | 50 |
| Cv Value | 4.8 | 4.8 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | G3/8" | G1/2" | G3/4" | G1" | G1-1/4" | G1-1/2" | 2" |
| Viscosity Limit | Under 20CST | ||||||
| Pressure Range | Air 0-1.0Mpa ;Water 0-0.7Mpa; Oil: 0-0.9Mpa | ||||||
| Max Pressure Resistance | 1.0Mpa (Normally Open Solenoid Valve Max Pressure 0.8Mpa) | ||||||
| Material Body | Brass or stainless steel | ||||||
| Voltage Range | ±10% | ||||||
| Seal Material | Viton for -5∽150℃ ; NBR for -5∽80℃ | ||||||
| Material of oil seal | NBR;EPDM;VITON | ||||||
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Water Solenoid Valve 12v , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: high pressure solenoid valve, High pressure air valve, pressure solenoid valve, High pressure air solenoid valve, high pressure solenoid are for the liquid flow control.
