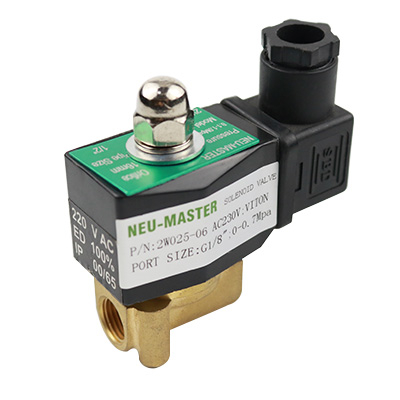

2W-025 Series Electric Valve / Electric Water Valve / Electric Solenoid Valve(2/2Way) ●Model:2W025-06;2W025-08;2W040-10 ●Medium: Water;Oil;Air ●Acting Type: Direct Acting; ●CV Value:2W025-06;2W025-08 0.23;2W040-10 0.6 ●Proof Pressure:1.0Mpa ●Seal Material: Viton; ●Port Size :1/8";1/4";3/8",G ,PT, NPT are available Electric Valve Catalog:

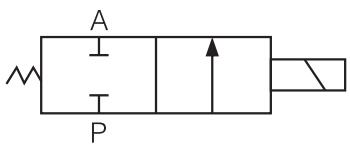

Solenoid Valve Symbol:

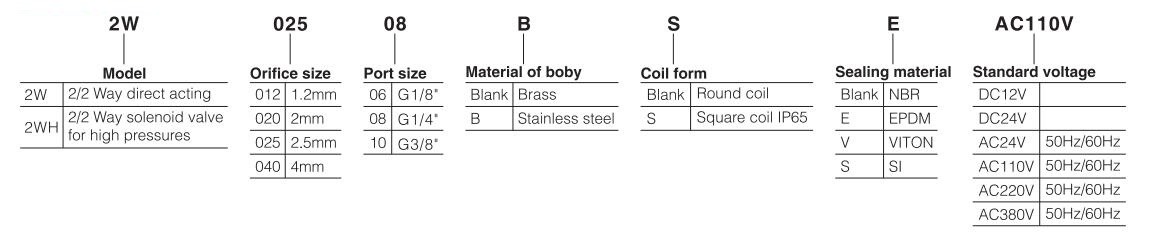

Electric Water Valve Ordering Code:
|
The Electric Valve Feature:
2W025 Series Electric Valve
Directing acting and normal closed type 2/2 ways Electric water valve.Its high sensitivity allows it to change direction quickly
The structure is compact and small
The valve body is made by brass or stainless steel which is heat resistance and the coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
360° rotary solenoid coil
The square power connector: possible positioning every 90°
This valve has to be mounted as indicated on the drawing
The Water Solenoid Valve Specification:
| Electric Valve Model | 2W025-06 Electric Valve | 2W025-08 Electric Valve | 2W040-10 Electric Valve |
| Fliud | Air ;Water;Oil | ||
| Acting | Direct Acting | ||
| Type | Normally Closed | ||
| Orifice Size | 2.5 | 2.5 | 13 |
| Cv Value | 0.23 | 0.23 | 0.6 |
| Port Size | 1/8" | 1/4" | 3/8" |
| Viscosity Limit | Under 20CST | ||
| Pressure Range | 0-0.7 Mpa | ||
| Proof Pressure | 1.0Mpa | ||
| Material Body | Brass or stainless steel | ||
| Seal Material | Viton for -5∽150℃ ; NBR for -5∽80℃ | ||
| Material of oil seal | NBR;EPDM;VITON | ||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric water solenoid valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: electric valve, water solenoid valve, two way solenoid valve, 2 way solenoid valve, electric solenoid valve, electric water valve, electromagnet valve, steam solenoid valve, Magnetic valve, liquid solenoid valve are for the liquid flow control.
