2V Series Water Solenoid Valve / Two Way Electric Valve(2/2Way) Model:2V025-06;2V025-08;2V130-10;2V130-15;2V250-20;2V250-25 (Two Ways Valve) Medium: Water;Oil;Air Acting Type:2V025-06;2V025-08 Electric Direct Acting;2V130-10;2V130-15;2V250-20;2V250-25 Solenoid Piloted Acting CV Value:0.23;0.25;6.2;6.2;13;13 Proof Pressure:1.5Mpa; Electric Valve Voltage: AC220;AC110V;DC24V;AC24V;DC12V For Water Solenoid Valve Seal: Viton; NBR Valve Port Size :1/8";1/4";3/8";1/2";3/4"1" ,G ,PT, NPT are available . Electric Valve Catalog:

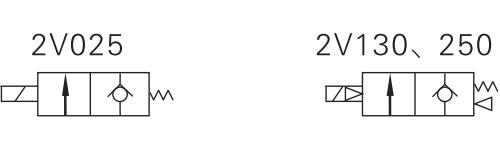

Solenoid Valve Symbol:

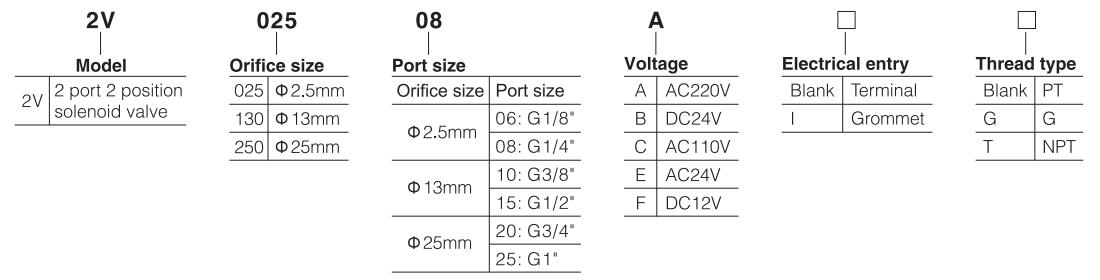

Solenoid Valve Ordering Code:
|
The Electric Valve Feature:

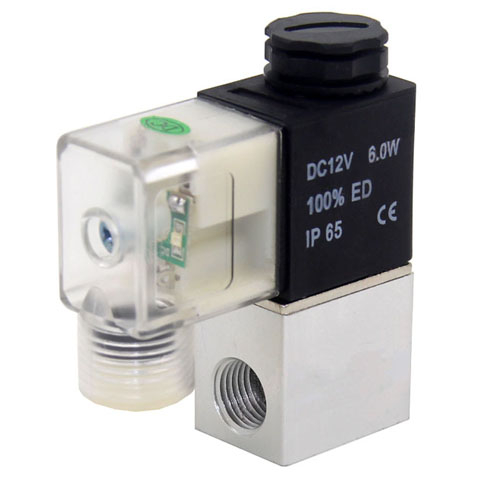

2V025 Series two way solenoid valve
Directing acting and normal closed type 2/2 ways solenoid valve.Its high sensitivity allows it to change direction quickly
The structure is compact and small
The valve body is made by brass which is heat resistance and the coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
2V130 and 250 Series Electric Valve
This is 2/2 ways diaphragm piloted solenoid valve has low energy consumption and large air flow .
The starting pressure is low and the operational differential pressure is ≤0.05Mpa
The valve body is made by brass which is heat resistance and the coil confroms to class B classification.The seals are made of NBR (Or Viton)
The Water Solenoid Valve Specification:
| Electric Valve Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
| Fliud | Air ;Water;Oil | |||||
| Acting | Direct Acting | Internally Piloted Acting | ||||
| Type | Normally Closed | |||||
| Orifice Size | 2.5 | 2.5 | 13 | 13 | 25 | 25 |
| Cv Value | 0.23 | 0.25 | 6.2 | 6.2 | 13 | 13 |
| Port Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Viscosity Limit | Under 20CST | |||||
| Pressure Range | 0-1.0Mpa | 0.05-1.0Mpa | ||||
| Proof Pressure | 1.5Mpa | |||||
| Material Body | Brass with zinc plated | Brass | ||||
| Seal Material | Viton | NBR | ||||
| Min.Activating Time sec | 0.05Sec and below | |||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the water solenoid valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: electric valve, water solenoid valve, two way solenoid valve, 2 way solenoid valve, electric solenoid valve, electric water valve, electromagnet valve, steam solenoid valve, Magnetic valve, liquid solenoid valve are for the liquid flow control.
