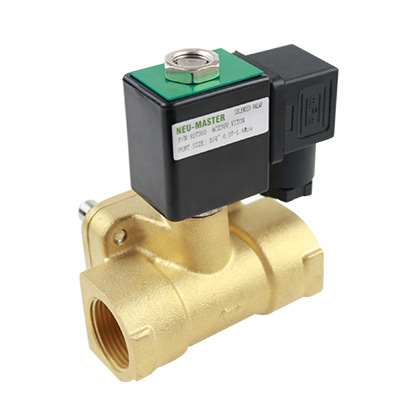

0927/0955 Series Electric Water Valve / Electric Water Valve 12v / Electric Water Valve 24v/ Electric Water Valve 110v / Electric Water Valve 120v / Electric Water Valve 240v (2/2Way) ●Model:0927 Series;0955 Series Electric Water Valve ●Medium: Water;Oil;Air ●Acting Type: Pilot operated; ●Operate Pressure:0.03-16 Bar ●Seal Material: Viton for -5∽150℃ ; NBR for -5∽80℃ ●Port Size :1/4";3/8",1/2";3/4";1";1-1/4";1-1/2";2" ZG ,PT, NPT are available ●Voltage:AC220V;AC240V;AC110V;AC24V;DC24V;DC12V Electric water Valve Catalog:
Electric water Valve Symbol:
|
Electric Water Valve Feature:
0927 Series;0955 Series Electric Water Valve
Directing acting and normal closed type 2/2 ways Electric Water Valve .Its high sensitivity allows it to change direction quickly
The valve body is made by brass which is heat resistance and the coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
360° rotarysolenoid coil
The square power connector: possible positioning every 90°
This valve has to be mounted as indicated on the drawing

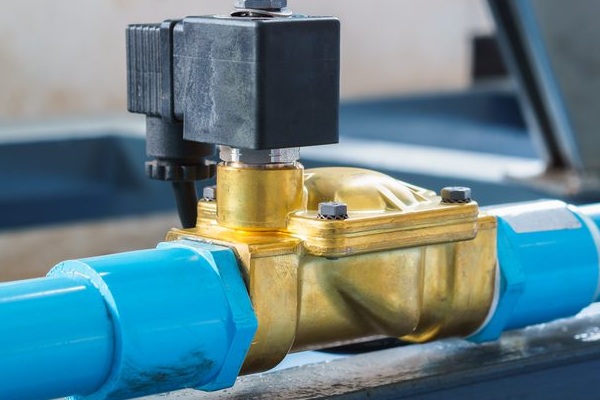

The installation of the 0927 Series;0955 Series Electric Water Valve
Electric Water Valve Specification:
| Model | Orifice Size | Operating Pressure | Operating Temperature | Effective Section(㎡) | Voltage | Pipe Size |
| 0927000 | 8 | 0.07-1.6Mpa | Viton for -5∽150℃ ; NBR for -5∽80℃ | 20 | AC220V AC240V AC110V AC24V DC24V DC12V | 1/4" |
| 0955105 | ||||||
| 0927100 | 10 | 40 | 3/8" | |||
| 0955205 | ||||||
| 0927200 | 12 | 60 | 1/2” | |||
| 0955305 | ||||||
| 0927300 | 20 | 110 | 3/4” | |||
| 0955405 | ||||||
| 0955400 | 25 | 190 | 1" | |||
| 0955505 | ||||||
| 0955500 | 32 | 0.1-1.6Mpa | 300 | 1-1/4" | ||
| 0955605 | ||||||
| 0955600 | 40 | 400 | 1-1/2" | |||
| 0955705 | ||||||
| 0955700 | 50 | 500 | 2" | |||
| 0955805 |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Electric Water Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: electric water vavle, electric water vavle 12v, electric water vavle 24v, electric water vavle 120v, electric water vavle 240v are for the liquid flow control.
