2P Series Electric Valve /Two Way Solenoid Valve / Electric Water Valve(2/2Way) Model:2P025-06;2P025-08; Medium: Water;Oil;Air Acting Type:2V025-06;2V025-08 Electric Solenoid Direct Acting CV Value:0.23; Proof Pressure:1.05Mpa Seal Material: Viton Port Size :1/8";1/4",G ,PT, NPT are available Electric Valve Catalog:

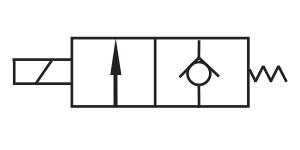

Electric Water Valve Symbol:

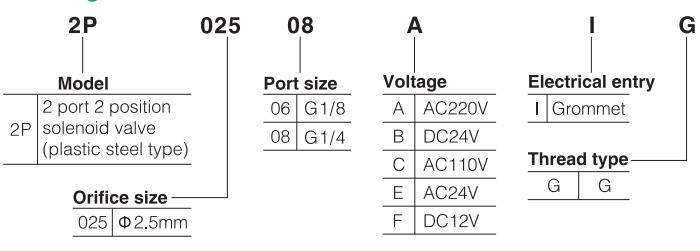

Solenoid Valve Ordering Code:
|
The Electric Valve Feature:
2P025 Series two way solenoid valve:
Directing acting and normal closed type 2/2 ways solenoid valve.Its high sensitivity allows it to change direction quickly
The structure is compact and light weight , it is easy to install and dismantle.
The valve body is made by Nylon 66.The coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
The protection calss of the coil is IP65, and the electrical entry is grommet.
The Water Solenoid Valve Specification:
| Electric Water Valve Model | 2V025-06 | 2V025-08 |
| Fliud | Air ;Water;Oil | |
| Acting | Solenoid Control -Direct Acting | |
| Type | Normally Closed | |
| Orifice Size | 2.5 | |
| Cv Value | 0.23 | |
| Port Size | 1/8" | 1/4" |
| Viscosity Limit | Under 20CST | |
| Pressure Range | 0-0.7Mpa | |
| Proof Pressure | 1.05Mpa | |
| Material Body | Nylon 66 | |
| Seal Material | Viton | |
| Min.Activating Time sec | 0.05Sec and below | |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the electric water valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: electric valve, water solenoid valve, two way solenoid valve, 2 way solenoid valve, electric solenoid valve, electric water valve, electromagnet valve, steam solenoid valve, Magnetic valve, liquid solenoid valve are for the liquid flow control.
