Model:2WBF Series Water Solenoid Valve / Water Solenoid Valve 12v / Water Solenoid Valve 24v/ Water Solenoid Valve 110v / Water Solenoid Valve 120v / Water Solenoid Valve 240v(2/2Way)
NEU-MASTER
2WBF160-10;2WBF160-15;2WBF200-20;2WBF250-25;2WBF350-35;2WBF400-40;2WBF500-50
Availability: | |
---|---|

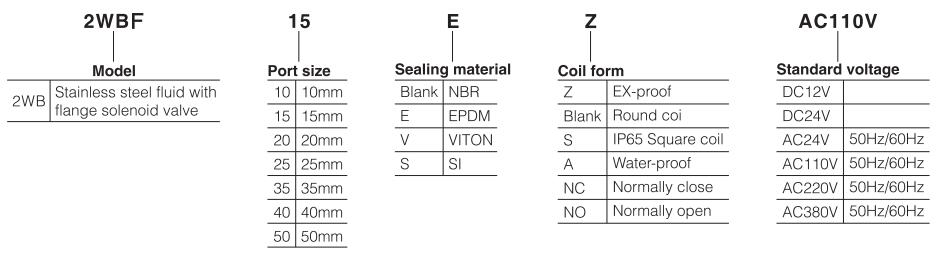

2WBF Series Stainless Steel Flange Solenoid Valve / Flange Water Solenoid Valve 12v / Flange Water Solenoid Valve 24v/ Flange Water Solenoid Valve 110v-220v / Flange Water Solenoid Valve 120v-240v ●Stainless Steel Flange Solenoid Model:2WBf160-10;2WBf160-15;2WBf200-20; 2WBf250-25;2WBf350-35;2WBf400-40;2WBf500-50 ●Medium: Water;Oil;Air;Week Acid;Alkali Liquid ●Acting Type: Direct Acting; ●CV Value:4.8;4.8;12;24;29;48 ●Operate Pressure:Air 0-1.0Mpa ;Water 0-0.7Mpa; Oil: 0-0.9Mpa ●Seal Material: Viton for -5∽150℃ ; NBR for -5∽80℃ ●Flange Connection Stainless Steel Flange Water Solenoid Valve Catalog: 2WBF Series Stainless steel water solenoid valve.pdf Stainless Steel Flange Water Solenoid Valve Symbol: Stainless Steel Water Solenoid Valve Ordering Code: |
Water Solenoid Valve Feature:

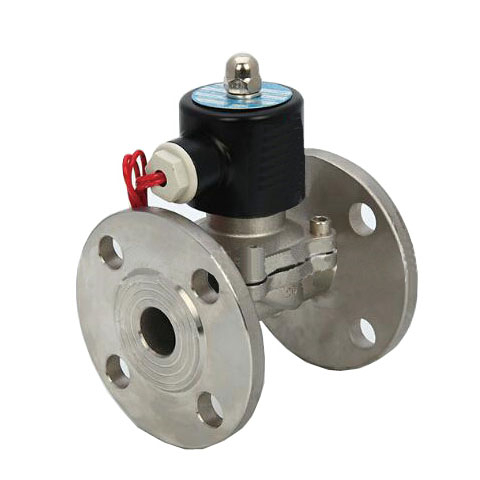

2WBF Series Stainless Steel Flange Solenoid Water Valve
Directing acting and normal closed type 2/2 ways Stainless steel flange solenoid valve .Normally Open, normally Closed type for choosing.
The valve body is made by stainless steel which is heat resistance and the coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
360° rotarysolenoid coil
The square power connector: possible positioning every 90°
This valve has to be mounted as indicated on the drawing
The Stainless Steel Flange Solenoid Valve Specification:
Stainless Steel Solenoid Valve | 2WBF160-10 | 2WBF160-15 | 2WBF200-20 | 2WBF250-25 | 2WBF350-35 | 2WBF400-40 | 2WBF500-50 |
Fliud | Air ;Water;Oil;Week Acid;Alkali Liquid | ||||||
Acting | Direct Acting | ||||||
Type | Normally Closed/Normally Open | ||||||
Orifice Size | 16 | 16 | 20 | 25 | 35 | 40 | 50 |
Cv Value | 4.8 | 4.8 | 4.8 | 12 | 24 | 29 | 48 |
Port Size | G3/8" | G1/2" | G3/4" | G1" | G1-1/4" | G1-1/2" | 2" |
Viscosity Limit | Under 20CST | ||||||
Pressure Range | Air 0-1.0Mpa ;Water 0-0.7Mpa; Oil: 0-0.9Mpa | ||||||
Max Pressure Resistance | 1.0Mpa (Normally Open Solenoid Valve Max Pressure 0.8Mpa) | ||||||
Material Body | stainless steel | ||||||
Voltage Range | ±10% AC380V;AC230V;AC220V;AC110V;AC24V; DC24V;DC12V ;Special Voltage Please Contact With Us | ||||||
Seal Material | EPDM,Viton for -5∽150℃ ; NBR for -5∽80℃ | ||||||
Material of oil seal | NBR;EPDM;VITON |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the The Stainless Steel Flange Solenoid Valve, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Stainless steel Flange Solenoid valve, water solenoid valve 12v, water solenoid valve 24v, water solenoid valve 120v, water solenoid valve 240v, Flange solenoid valve are for the liquid flow control.
