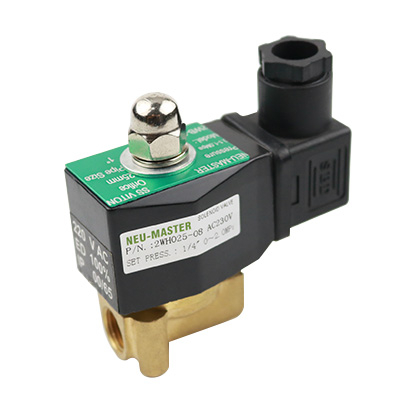

2WH-012 Series High Pressure Solenoid Valve / High Pressure Air Valve (2/2Way) ●High Pressure Model:2WH012-06;2WH012-08;2WH020-10 ●Medium: Water;Oil;Air ●Acting Type: Direct Acting; ●CV Value:2WH012-06;2WH012-08:0.05 ; 2WH020-10 :0.15 ●Proof Pressure:3.5Mpa ;Operating pressure:0-2.0Mpa ●Seal Material: Viton for -5∽150℃ ; NBR for -5∽80℃ ●Port Size :1/8";1/4";3/8",G ,PT, NPT are available High Pressure Air Valve Catalog:
Solenoid Valve Symbol:

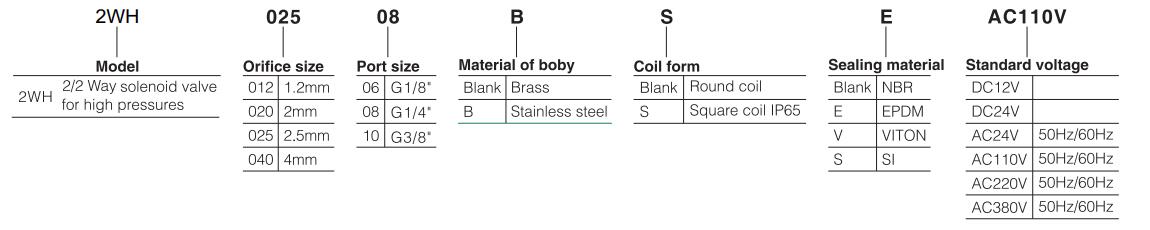

High Pressure Solenoid Valve Ordering Code:
|
High Pressure Solenoid Valve Feature:
2W012 Series High Pressure Valve
Directing acting and normal closed type 2/2 ways High pressure air solenoid valve .Its high sensitivity allows it to change direction quickly
The structure is compact and working for high pressure medium.
The valve body is made by brass or stainless steel which is heat resistance and the coil confroms to class B classification.The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
360° rotary solenoid coil
The square power connector: possible positioning every 90°
This valve has to be mounted as indicated on the drawing
The High Pressure Solenoid Valve Specification:
| High Pressure Model | 2W012-06 | 2W012-08 | 2W012-10 |
| High Pressure Fliud | Air ;Water;Oil | ||
| Acting | Direct Acting | ||
| Type | Normally Closed | ||
| Orifice Size | 1.2 | 2 | |
| Cv Value | 0.05 | 0.15 | |
| Port Size | 1/8" | 1/4" | 3/8" |
| Viscosity Limit | Under 20CST | ||
| Pressure Range | 0-2.0Mpa | ||
| Proof Pressure | 3.5Mpa | ||
| Material Body | Brass or stainless steel | ||
| Seal Material | Viton for -5∽150℃ ; NBR for -5∽80℃ | ||
| Material of oil seal | NBR;EPDM;VITON | ||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the High Pressure Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: high pressure solenoid valve, High pressure air valve, pressure solenoid valve, High pressure air solenoid valve, high pressure solenoid are for the liquid flow control.
