Model:PU225-03;PU225-04;PU225-06;PU225-08;PU220-12;PU220-14
NEU-MASTER
PU225-03;PU225-04;PU225-06;PU225-08;PU220-12;PU220-14
Availability: | |
---|---|

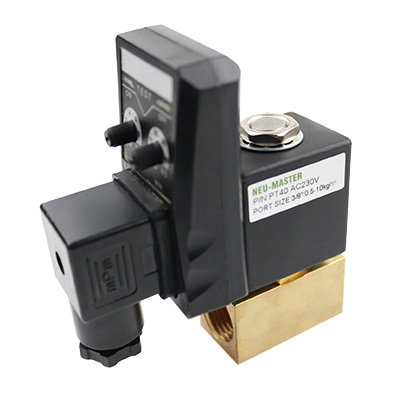

PT Series Electric Drain Valve 1/4" 3/8" 1/2" DC12V-DC240V; AC12V-AC380V 50/60HZ ●Model:P16 PT40 PT80 1/4" 3/8' 1/2" ●Acting Type: 2/2 Way directing acting type ●Max Operate Pressure:16bar;40bar;80bar ●Operating temperature: 2℃-55℃ ●Protecting degree:IP65 NEMA4 ●The Voltage:24-240 VDC;12-380VAC 50/60HZ ●Insulation :Thermal group H (200℃ ) PT electronic drain valve two ways fliud control valve.pdf |
● One kind of model suits all applications, simple installment, completely automatic, exempts maintains
● Interval time and discharge time can be adjustable and have test buttons
● Pressure 16Bar, 40Bar, 80Bar. Many kinds of voltages and connections to be chose
● Entire stainless steel valve, explosion-proof valve to be chose
● CE authentication, protection rank IP65, insulation grade H level
● 5.0mm large latus rectum direct-acting valve, fl uorine rubber seal
● Match ball valve fi lter, fi ssion with drain valve, assumed L structure
● External dimensions: 112×44×90mm, weight 600g
PT general electron drain valve match analogous circuit solid state electron timer with the solenoid valve to realize discharging the condensed water of compressed pneumatic system at fixed time automatically. RPT electron drain valve widely be applied in compressed pneumatic system parts like filter, separator, dryer machine, gas tank, water drop foot and so on. Discharge time and interval time can be carried on adjustment according to different requirements.
● High quality, low cost
● One kind of model suits all applications, simple installment, completely automatic, exempts maintains
● Interval time and discharge time can be adjustable and have test buttons
● Pressure 16Bar, 40Bar, 80Bar. Many kinds of voltages and connections to be chose
● Entire stainless steel valve, explosion-proof valve to be chose
● CE authentication, protection rank IP65, insulation grade H level
● 5.0mm large latus rectum direct-acting valve, fl uorine rubber seal
● Match ball valve filter, fission with drain valve, assumed L structure
● External dimensions: 112×44×90mm, weight 600g
Timer | PT-A |
Interval Time (off) | 0.5 to 45 minutes ,adjustable |
Discharge Time(on) | 0.5 to 10 Seconds ,adjustable |
Manual Test Switch | Micro Switch |
Supply Voltage | 24-240 VDC;12-380VAC 50/60HZ |
Current Consumption | 4mA Maximum |
Environmental Protection | IP65;NEMA4 |
Operating Temperature | -40℃∽+60℃ |
Housing Material | ABS Plastic |
Connection | DIN43650-A/ISO4400 |
Indicators | 1 LED (Yellow),indicating ON/OFF |
Design Standard | VDE 01 10C |
The Electric Drain Valve Specification:
Electric Drain Valve | PT16 | PT40 | PT80 |
Fliud | Water | ||
Acting | 2/2 Way directing acting type | ||
Min/Max Ambient Temperature | 2℃/55℃ | ||
Orifice Size | 5.0mm | ||
Max Medium Temperature | 90℃ | ||
Port Size | 1/8";1/4";3/8"1/2" | ||
Viscosity Limit | Under 50CST | ||
Operating Pressure Range kg/c㎡ | 0.5-10kg/c㎡ | ||
Max Pressure Resistance | 16bar;40bar;80bar | ||
Material Body | Brass | ||
Seal Material | Viton |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the electric Drain valve, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Electric Valve, Electric Water Valve, Electric Solenoid Valve, Electric Valves, electromagnetic valve, electromagnet valve are for the liquid flow control.
