KL22310 Series Diaphragm Magnetic Valve

Name: KL22310 Series Diaphragm Magnetic Valve
Brand: NEU-MASTER
Rating: 5.0 (15 reviews)

●Model:KL2231010/15/20/25/32/40/50 Diaphragm Magnetic Valve / Magnetic Valve 3/8" / Magnetic Valve 1/2" / Magnetic Valve 3/4"/ Magnetic Valve 1"/ Magnetic Valve 1-1/4"/ Magnetic Valve 1-1/2"/ Magnetic Valve 2"
●Medium: Water;Oil(Below 50 CST);Air ;Neutral Gas
●Acting Type: Acting Type: 3/8" to 2" Diaphragm
●Seal Material: NBR for -5∽90℃
●Port Size :3/8";1/2";3/4";1" ,1-1/4",1-1/2",2" ZG ,PT, NPT are available

Model:
Model: KL2231001/02/03/04
Brand:
NEU-MASTER
Code:
KL2231001/02/03/04:1/8";1/4"

Availability:



Inquire Add to Basket

Product Description

KL2231010/15/20/25/32/40/50 Diaphragm Magnetic Valve / Magnetic Valve 3/8" / Magnetic Valve 1/2" / Magnetic Valve 3/4"/ Magnetic Valve 1"/Magnetic Valve 2"

●Model:KL2231010/15/20/25/32/40/50 Diaphragm Magnetic Valve / Magnetic Valve 3/8" / Magnetic Valve 1/2" / Magnetic Valve 3/4"/ Magnetic Valve 1"/ Magnetic Valve 1-1/4"/ Magnetic Valve 1-1/2"/ Magnetic Valve 2"

●Medium: Water;Oil(Below 50 CST);Air ;Neutral Gas

●Acting Type: Acting Type: 3/8" to 2" Diaphragm

●Seal Material: NBR for -5∽90℃

●Port Size :3/8";1/2";3/4";1" ,1-1/4",1-1/2",2" ZG ,PT, NPT are available

Magnetic Valve Catalog:

KL223 Series two ways fliud control magnetic valve.pdf

Magnetic Valve Symbol:

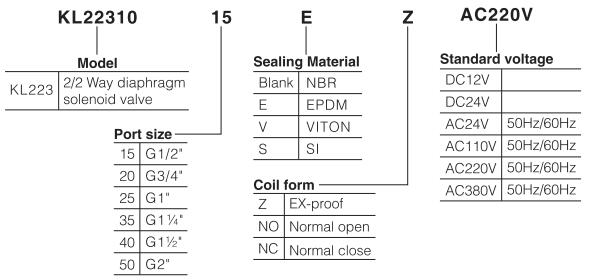

Magnetic Valve Ordering Code:

KL2231010-50-diaphragm-magnetic-Valve-12v-magnetic-Valve-24v-magnetic-Valve-120v-ordering-code

Magnetic Valve Feature:

Media temperature up to 90℃
Suitable for gas, water,oil,weak acid and alkali.
Waterhammer-free design,low noise.
Smooth running,high flow rate
High reliability,long service life
Replace of the solenoid can make the valve explosion-proof .

7. conformity managed in accordance with standards:

ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001.

The Electric Solenoid Valve Specification:

Electric Solenoid Valve Model		KL2231010	KL2231015	KL2231020	KL2231025	KL2231032	KL2231040	KL2231050
Pipe Thread		3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice Size (mm)		13	13	20	25	40		50
Operating Pressure Mpa		0.03∽1.0Mpa				0.07∽1.6Mpa
Ambient Temperature		-10∽55℃
Medium Temperature		-10∽90℃
Frequency (Hz)		≥1		≥0.5		≥0.33
Kv Value		3.6		8.3	11	25	30	40
Coil Power Consumption	AC(VA)	14 Protection Degree: IP65
	DC(W)	8 Protection Degree: IP65
Voltage		AC :50Hz 24V 36V 110V 220V DC 24V 12V

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the lead time of the Electric Solenoid Valve , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note: Electric Solenoid Valves, Electric Solenoid Valves 1/4", Electric Solenoid Valve 1/2", Electric Solenoid Valves 1", Electric Solenoid Valves 2" are for the liquid flow control.
