US(2L)Series Steam Solenoid Valve / High temperature solenoid valve / Steam Solenoid Valve 24v / Steam Solenoid Valve 120v /Steam Solenoid Valve 240v(2/2 Way) ●SolenoidModel:US-15;US-20;US-25;US-35;US-40;US-50 ●Medium: Water;Oil;Air ●Acting Type: Pilot Operated; ●CV Value:4.8;4.8;12;24;29;48 ●Operate Pressure:Air;Water;Steam0.1-1.5Mpa ●Seal Material: Viton for -5∽185℃ ; ●Port Size :1/2";3/4";1";1-1/4";1-1/2";2" ZG ,PT, NPT are available Water Solenoid Valve Catalog:
Water Solenoid Valve Symbol:

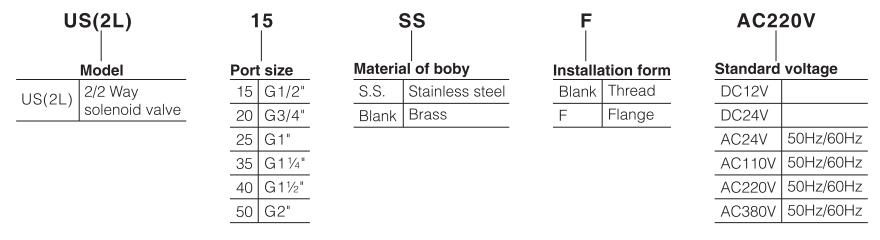

Water Solenoid Valve Ordering Code:
|
Water Solenoid Valve Feature:

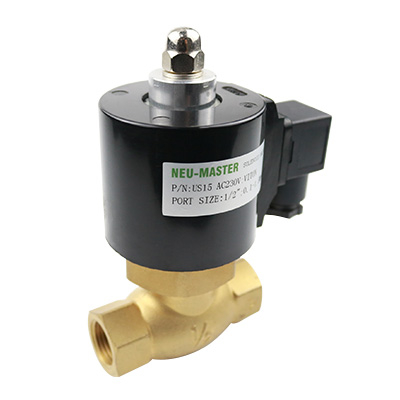

US Series High Pressure Steam Solenoid Valve
Pilot operated and normal closed type 2/2 ways High pressure steam solenoid valve .Its high sensitivity allows it to change direction quickly
The valve body is made by brass which is heat resistance and the coil confroms to class B classification Or IP65 .The seals are made of fluorine rubber(Vtion) which is suitable for several types of working medium.
360° rotary solenoid coil
The square power connector: possible positioning every 90°
This valve has to be mounted as indicated on the drawing
The High Pressure Steam Solenoid Valve Specification:
| Steam Solenoid Valve | US-15 | US-20 | US-25 | US-35 | US-40 | US-50 |
| High Pressure Fliud | Air ;Water;Steam | |||||
| Acting | Pilot Operated | |||||
| Type | Normally Closed | |||||
| Orifice Size | 4.7 | 4.7 | 22 | 30 | 30 | 50 |
| Cv Value | 4.8 | 4.8 | 12 | 20 | 20 | 48 |
| Port Size | G1/2" | G3/4" | G1" | G1-1/4" | G1-1/2" | G2" |
| Viscosity Limit | Under 20CST | |||||
| Pressure Range | Air;Water ;Steam 0.1-1.5Mpa (1Mpa=14Bar=140Psi) | |||||
| Max Pressure Resistance | 1.0Mpa (Normally Open Solenoid Valve Max Pressure 0.8Mpa) | |||||
| Material Body | Brass or stainless steel | |||||
| Voltage Range | ±10% | |||||
| Seal Material | Viton for -5∽150℃ ; NBR for -5∽80℃ | |||||
| Material of oil seal | NBR;EPDM;VITON | |||||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Steam Solenoid Valve , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Steam solenoid valve, High temperature solenoid valve, Steam solenoid valve 24v, Steam solenoid valve 120v, Steam solenoid valve 240v are for the liquid flow control.
