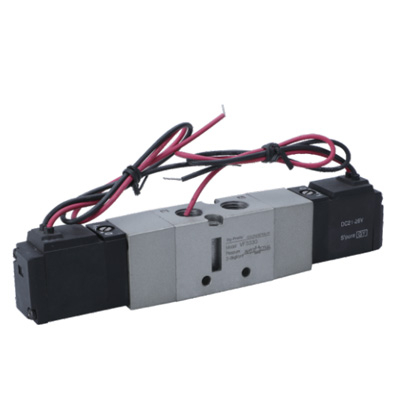

V5000 Series SMC Solenoid Valve 5/2way 5/3way 12VDC/24VDC/220VAC/110VAC
Why Chose the VF5000 Series solenoid valve ?
1. Pilot-oriented mode: Internal pilot or external pilot. Equivalent with SMC VF5000 Series Solenoid Valve
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication to the electric Solenoid Valve.
6. It is available to form integrated valve group with the base to save installation space.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional
VF3000-VF5000 Series Smc Standard Solenoid Valve.pdf
VF5000 Smc Solenoid Valve Symbol:
2bit: Two position , the valve piston will move between two poles .
3bit: Three positon, the valve piston will move between three position .Middle and two poles .

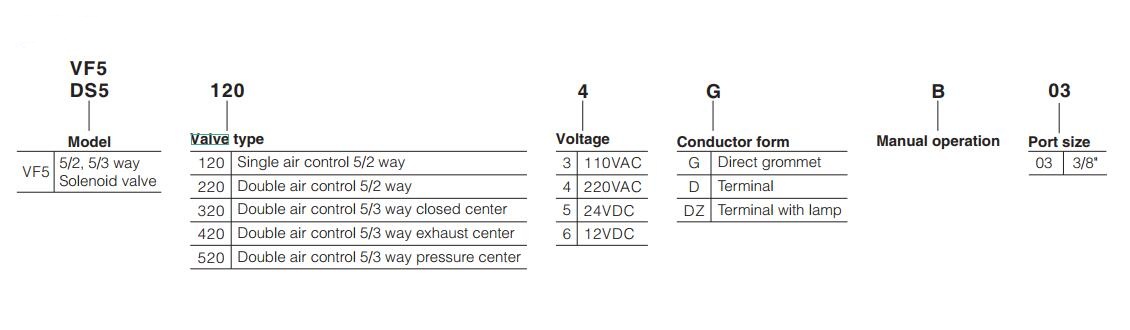

Smc Solenoid Valve Order Code:
Smc Standard Solenoid Valve Specification:
Smc Pneumatic solenoid Valve Fluid | Air |
Environment and fluid temperature | high 50℃ |
lubrication | Not required |
Manual operation | Screwdriver lock type |
Shock / vibration resistance | 30G/5G(8.3~2000Hz) |
Seal up | Dust prevention |
SMC solenoid valve mode | Direct grommet(G), Terminal(D) | |
Standard voltage | AC: 110V, 220V(50Hz) DC: 12V, 24V | |
Allowable voltage variation range | Rated voltage: -15%~+10% | |
Insulation overvoltage | B class or same class | |
Power consumption | AC | start-up: 5.6VA, Continued 3.4VA |
DC | 1.8W/2W(With indicator light) | |
Surge suppressor | AC: Varistor, DC: Diode | |
Indicator light Of Electric Actuator Valve | AC: Neon lamp, DC: light-emitting diode | |
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
Where the solenoid air valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) . One VF3000-130 is enough to control a double acting air cylinder.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
The weight of the smc solenoid valve VF5000 series:
Air Solenoid Valve VF5000-130: 0.38Kgs ; VF5000-230: 0.45Kgs ; VF5000-330: 0.53Kgs;VF5000-430: 0.53Kgs;VF5000-530: 0.53Kgs
Is the sample for free ?
Yes
Certification: ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Smc solenoid Valve, Pneumatic Solenoid Valve, Pneumatic Valve, Pneumatic Solenoid, 24v solenoid valve are all for control the air direction for the air tools , air cylinders.
