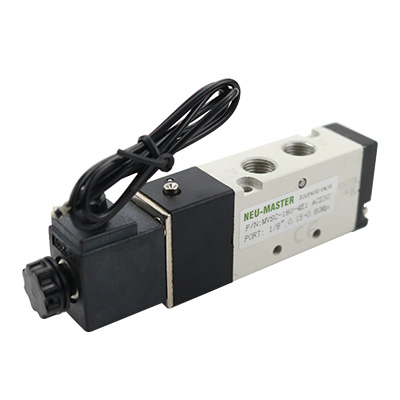

MVSD180 Series Pneumatic Solenoid Valve 4Ways Voltage 12VDC/24VDC/220VAC/110VAC
Why Chose the Mindman standard Pneumatic Solenoid Valve ?
1. Pilot-oriented mode: Internal pilot or external pilot. Equivalent with MindMan MVSD-180 Series Pneumatic Solenoid Valve
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication to the electric Solenoid Valve.
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional , bigger flow rate than other standard air solenoid valve if with the same pipe size.
MVSD180 Series Pneumatic Solenoid Valve Catalog.pdf
MVSD-180 Air Solenoid Valve Symbol:
Pneumatic Solenoid Valve 3 ways : The valve piston will move between two poles .
Pneumatic Solenoid Valve 4 ways: 4E2-The valve piston will move between two poles .
4E2/4E2P/4E2R - The valve piston will move in three position.

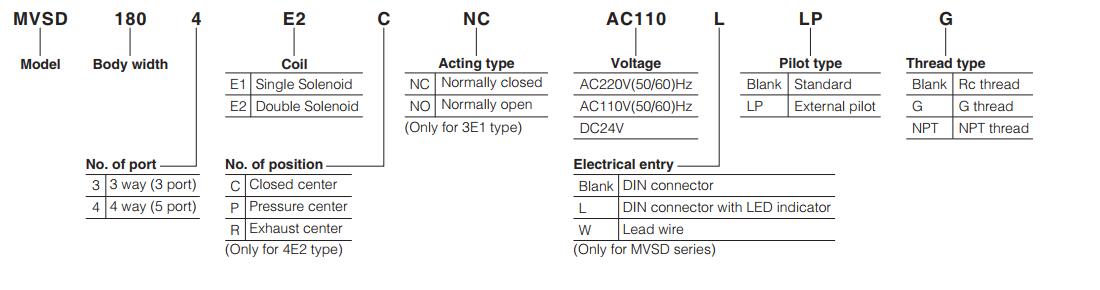

MVSD-180 Pneumatic Solenoid Valve Order Code:
The Pneumatic Solenoid Valve Specification:
Model Pneumatic Solenoid Valve | 3E1 | 3E2 | 4E1 | 4E2 | 4E2C.P.R |
Bore No. | 6A | ||||
Port size | Rc1/8 | ||||
No. of port | 3 | 5 | |||
No. of position | 2 | 3 | |||
Medium | Air | ||||
Operating perssure range | 0.15~0.8MPa | 0.2~0.7MPa | |||
Operating pressue (LP) | 0~0.8MPa | 0~0.7MPa | |||
External pilot pressure (LP) | 0.15~0.8MPa | 0.2~0.7MPa | |||
Proof pressure | 1MPa | ||||
Effective orifice | 15mm2 | 12mm2 | 9mm2 | ||
Ambient temperature | -5~+50℃ (No freezing) | ||||
Reponse time | 30ms | ||||
Voltage | AC110V, 220V(50/60)Hz, DC24V,12V Solenoid Valve | ||||
Power consumption | AC=3.7/3.1VA, DC=3W | ||||
Available voltage range | ±10% | ||||
Insulation class | F Class | ||||
Weight | 120g | 172g | 124g | 176g | 190g |
The NPT thread port , PT thread port,G thread port .
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
Where the pneumatic solenoid valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
MVSC180-3E1 For controlling the single acting cylinder.
MVSC180-3E2 For controlling the single acting cylinder.
Normally we don't use the 3E1 to control the double acting cylinder . As two sets solenoid valve to be needed . That will increase the cost , and waste the space .
4E1,4E2,4E2C/P/R are perfectly for controling the doubule acting air cylinder
What's kind of thread we could supply ?
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
The weight of the Pneumatic Solenoid Valve :
MVSD180-3E1: 0.12Kgs ; MVSD180-3E2: 0.172Kgs ; MVSD180-4E1: 0.124Kgs;MVSD180-4E2: 0.176Kgs;MVSD180-4E2C/P/R: 0.19Kgs
Is the sample for free ?
Yes
Certification: ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air solenoid Valve, Pneumatic Solenoid Valve, Pneumatic Valve, Pneumatic Solenoid, 24v solenoid valve are all for control the air direction for the air tools , air cylinders.
