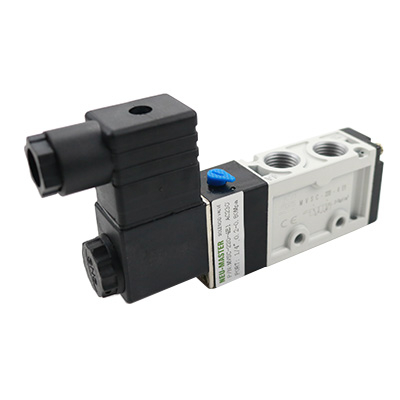

MVSC220 Series Pneumatic Pilot Valve 5/2Way 5/3Way 12VDC 24VDC 220VAC 110VAC
Why Chose the Mindman standard Pneumatic Pilot Valve ?
1. Pilot-oriented mode: Internal pilot or external pilot. Equivalent with MindMan MVSC-220 Series Pneumatic Pilot Valve
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication to the electric Solenoid Valve.
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional .
8. bigger flow rate than other standard air solenoid valve if with the same pipe size.
MVSC220 Series Pneumatic Pilot Valve Catalog.pdf
MVSC220 Series Pneumatic Pilot Valve Symbol:
Pneumatic Pilot Valve 3 ways : The valve piston will move between two poles .
Pneumatic Pilot Valve 4 ways: 4E2-The valve piston will move between two poles .
4E2/4E2P/4E2R - The valve piston will move in three position.

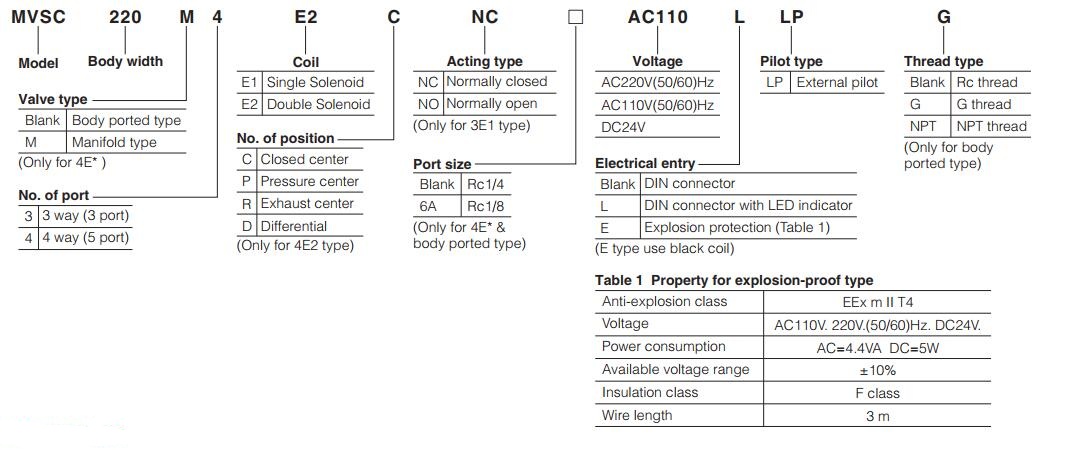

MVSC220 Series Pneumatic Pilot Valve Order Code:
MVSC220 Series Pneumatic Pilot Valve Specification:
Model Pneumatic Pilot Valve | 3E1 | 3E2 | 4E1 | 4E2 | 4E2C.P.R |
Bore No. | 8A | 6A,8A | |||
Port size | Rc1/4 | Rc1/8,Rc1/4 | |||
No. of port | 3 | 5 | |||
No. of position | 2 | 3 | |||
Medium | Air | ||||
Operating perssure range | 0.2~0.8MPa | 0.3~0.8MPa | |||
Operating pressue (LP) | 0~0.8MPa | ||||
External pilot pressure (LP) | 0.2~0.8MPa | 0.3~0.8MPa | |||
Proof pressure | 1MPa | ||||
Effective orifice | 18mm2 | 16mm2 | |||
Ambient temperature | -5~+50℃ (No freezing) | ||||
Reponse time | 30ms | 40ms | |||
Voltage | AC110V, 220V(50/60)Hz, DC24V 12V Solenoid Valve | ||||
Power consumption | AC=4.8/4.4VA, 6/4.9VA DC=2W | ||||
Available voltage range | ±10% | ||||
Insulation class | F Class | ||||
Weight | 203g | 296g | 184g | 292g | 338g |
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
The NPT thread port , PT thread port,G thread port .
Where the solenoid air valve were used ? (Appliliance)
Normally it were used to control the air cylinder(Pneumatic cylinder) .
MVSC220-3E1 For controlling the single acting cylinder.
MVSC220-3E2 For controlling the single acting cylinder.
Normally we don't use the 3E1 to control the double acting cylinder . As two sets solenoid valve to be needed . That will increase the cost , and waste the space .
4E1,4E2,4E2C/P/R are perfectly for controling the doubule acting air cylinder .
What's kind of thread we could supply ?
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
The weight of the Pneumatic Pilot Valve :
MVSC220-3E1: 0.203Kgs ; MVSC220-3E2: 0.296Kgs ; MVSC220-4E1: 0.184Kgs;MVSC220-4E2: 0.292Kgs;MVSC220-4E2C/P/R: 0.328Kgs
Is the sample for free ?
Yes , if one sample . Not include the Express fees.
Certification: ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air solenoid Valve, Pneumatic Pilot Valve, Pneumatic Valve, Pneumatic Solenoid, 24v solenoid valve are all for control the air direction for the air tools , air cylinders.
