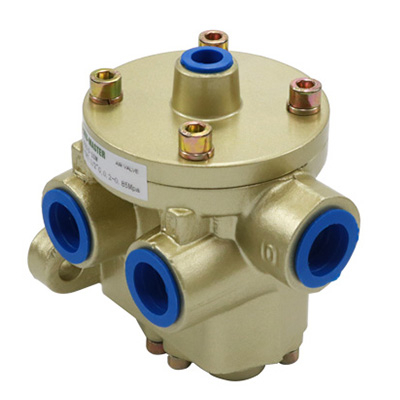

K25-JK-W Series Heavy Duty Cut-Off Pneumatic Air Valve (5/2way)
Thread Diameter : 1/4";1/8; 3/8",1/2" 3/4",1",1-1/4",1-1/2"
Operating Pressure : 0.2-0.8MPa
Material : Metal, Plastic;Color : As Picture Shown
Solenoid Air Valve Type: 5 port 2 position
K25JK-WUXI-Series Heavy Duty Air Valve.pdf

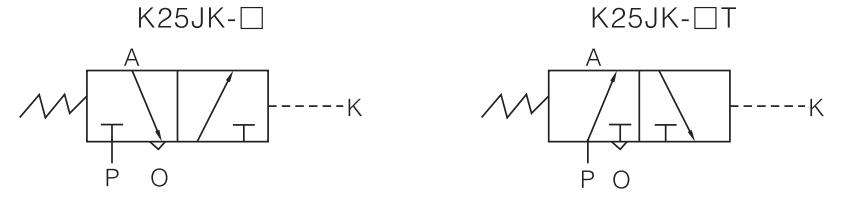

Heavy Duty air Valve Product Symbol:

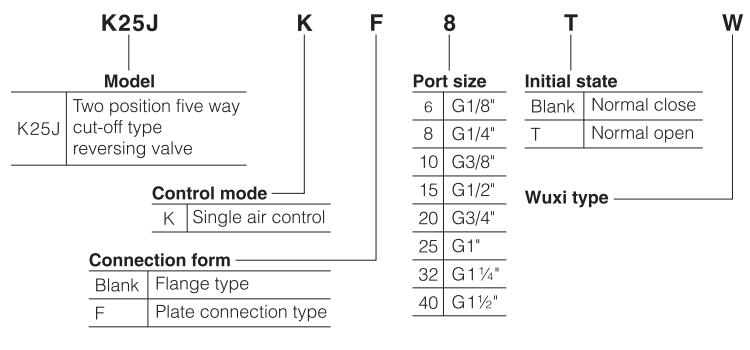

Heavy Duty air Valve Ordering Code:
Heavy Duty air Valve Specification:
Model Heavy Duty Air Valve Huge Flow Rate | K25J-6W | K25J-8W | K25J-10W | K25J-15W | K25J-20W | K25J-25W | K25J-32W | K25J-40W |
| Normal Diameter(mm) | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 |
| CV Value | 10 | 20 | 35 | 60 | 120 | 190 | 300 | 400 |
| Max Work Pressure | 1.0Mpa | |||||||
| Minimum Control Pressure | 0.3Mpa | |||||||
| Commutation Time | 0.04 | 0.06 | 0.1 | 0.15 | 0.2 | |||
| Commutation Frequency(Hz) | 1/30 | |||||||
| Service Life | 〉1500000 Circles | |||||||
Where the Heavy Duty High Heavy Duty Air Valve were used ?
Normally it were used to control the air cylinder(Pneumatic cylinder) .
Usage:
1. Before installing, be sure the Directional Control Valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P: is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time of the Heavy Duty Air Valve, delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Valve sample for free ?
Yes .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Heavy Duty air Valve, high flow air control valve, High Flow Air solenoid Valve, Air Pilot Valve, Heavy duty Pneumatic Valve are all for control the air direction for the air tools , air cylinders.
