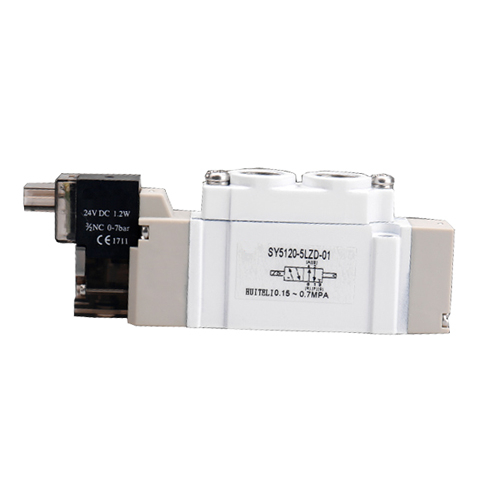

SY3000/5000/7000/9000 Series SMC Standard Solenoid Valve
SY3120/SY5120/SY7120/SY9120 Single solenoid control 5ways/2Position
SY3220/SY5220/SY7220/SY9220 Double solenoid control 5ways/2Position
SY3320/SY5320/SY7320/SY9320 Double solenoid control 5ways/3Position Close Center .
SY3320/SY5320/SY7320/SY9320 Double solenoid control 5ways/3Position Exhaust Center . .
SY3320/SY5320/SY7320/SY9320 Double solenoid control 5ways/3Position Pressure Center .
Voltage :AC220V;AC100V;DC24V;AC24V;DC12V
Operating Pressure : 0.1-0.7MPa
SY3000-SY9000 Series SMC Standard Solenoid Valve.pdf
Why Chose the SY3000-9000 Series SMC type solenoid valve ?
1. Pilot-oriented mode: Internal pilot or external pilot. Equivalent with SMC SYSeries Solenoid Valve
2. Structure in sliding column mode: good tightness and sensitive reaction.And low energy consumption.
3. Three position solenoid valves have three kinds of central function for your choice.
4. Internal hole adopts special processing technology which has little friction, low start pressure and long service life.
5. No need to add oil for lubrication to the electric Solenoid Valve.
6. It is available to form integrated valve group with the base to save installation space.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional
SY3000/5000/7000/9000 SMC Solenoid Valve Symbol:
2 position Single Electric Control | 2 position Double Electric Control | 3 position closed center Double Electric Control | 3 position exhaust center Double Electric Control | 3 position pressure center Double Electric Control |
|  |
|
|
|
Two position , the valve piston will move between two poles .
Three positon, the valve piston will move between three position .Middle and two poles .
SMC Solenoid Valves Order Code:
Smc Solenoid valve Model | Specifications | ||||
Functional digit | Response time(ms) | Effective sectional area mm2(Cv) | Pipe size Rc(PT) | Weight(g) Terminal | |
5Y3120-□△D-◇ | 2 position single electronic control | 12 or less | 2.88(0.16) |
* M5x0.8 C4 C6 | 51 |
5Y3220-□△D-◇ | 2 position double electric control | 10 or less | 2.88(0.16) | 68 | |
5Y3320-□△D-◇ | 3 position closed center | 15 or less | 2.34(0.13) | 71 | |
5Y3420-□△D-◇ | 3 position exhaust center | 15 or less | 2.34(0.13) | 71 | |
5Y3520-□△D-◇ | 3 position pressure center | 15 or less | 2.7(0.15) | 71 | |
5Y5120-□△D-◇ | 2 position single electronic control | 19 or less | 8.82(0.49) |
* 1/8 C4 C6 C8 | 70 |
5Y5220-□△D-◇ | 2 position double electric control | 18 or less | 8.82(0.49) | 88 | |
5Y5320-□△D-◇ | 3 position closed center | 32 or less | 8.1(0.45) | 93 | |
5Y5420-□△D-◇ | 3 position exhaust center | 32 or less | 7.38(0.41) | 93 | |
5Y5520-□△D-◇ | 3 position pressure center | 32 or less | 10.98(0.61) | 93 | |
5Y7120-□△D-◇ | 2 position single electronic control | 31 or less | 16.74(0.93) |
* 1/4 C8 C10 | 101 |
5Y7220-□△D-◇ | 2 position double electric control | 27 or less | 16.74(0.93) | 120 | |
5Y7320-□△D-◇ | 3 position closed center | 50 or less | 12.6(0.7) | 128 | |
5Y7420-□△D-◇ | 3 position exhaust center | 50 or less | 11.7(0.65) | 128 | |
5Y7520-□△D-◇ | 3 position pressure center | 50 or less | 17.46(0.97) | 128 | |
5Y9120-□△D-◇ | 2 position single electronic control | 35 or less | 34.2(1.9) |
* 3/8 C8 C10 C12 | 236 |
5Y9220-□△D-◇ | 2 position double electric control | 35 or less | 34.2(1.9) | 255 | |
5Y9320-□△D-◇ | 3 position closed center | 62 or less | 34.2(1.9) | 279 | |
5Y9420-□△D-◇ | 3 position exhaust center | 62 or less | 34.2(1.9) | 279 | |
5Y9520-□△D-◇ | 3 position pressure center | 62 or less | 39.6(2.2) | 279 | |
(Note) □-Representative voltage :3=110VAC ;4=220VAC ; 5=24VDC ;6=12VDC
△-Representative wiring mode :G=Grommet(Line length 300mm) ;
LZ=terminal (Line length 300mm.With indicator light and over voltage protection circuit)
L= terminal (Line length 300mm) ;
D= Grommet
◇-Representative pipe size M5=M5×0.8 Thread(SY3000 Use) C4=Φ4mm Quick change joint (SY3000·5000 Use)
01=Rc1/8 Thread(SY5000 Use) C6=Φ6mm Quick change joint(SY3000·5000 Use)
02=Rc1/4 Thread(SY7000 Use) C8=Φ8mm Quick change joint(SY5000·7000·9000 Use)
03=Rc3/8 Thread(SY9000 Use) C10=Φ10mm Quick change joint(SY7000·9000 Use)
C12=Φ12mm Quick change joint(SY7000·9000 Use)
* Corresponding aperture CV value
Smc Solenoid Valve Ordering example:
1)Ordering 5/2 way solenoid valve single electric control type,
Voltage:24VDC; Pipe Szie :M5; Grommet ; With tripod
Correct model: SY3120-5GD-M5 1pcs
2)Ordering 5/3 way solenoid valve exhaust center type,
Voltage:220VAC; Pipe Szie :Rc3/8"; Grommet ; With indicator light and over voltage protection circuit .
Correct model: SY9320-4LZD-03 1pcs
The Specification of the smc Solenoid valve:
Series SMC Solenoid Valve | SY3000 | SY5000 | SY7000 | SY9000 | |
Fluid | Air | ||||
Internal pilot Operating pressure range (Mpa) | 2 position single | 0.15~0.7 | |||
2 position double | 0.1~0.7 | ||||
3 position | 0.2~0.7 | ||||
Ambient and fluid temperature (°C) | -10 to 50 (No freezing) | ||||
Max. operating frequency (Hz) | 2 position single, double | 10Hz | 5Hz | 5Hz | 5Hz |
3 position | 3Hz | 3Hz | 3Hz | 3Hz | |
Manual override (Manual operation) | Bolt driver pressure lock type | ||||
Pilot exhaust method | Common exhaust type for main and pilot valve | ||||
Lubrication | Not required | ||||
Mounting orientation | Unrestricted | ||||
Impact/Vibration resistance (m/s2) | 150/30 | ||||
Enclosure | Dust proof | ||||
The Smc Solenoid Valve Specification:
Electrical entry | Grommet (G) L plug terminal (L) | ||
Coil rated voltage (V) | DC | 24, 12 | |
AC50/60Hz | 110, 220 | ||
Allowable voltage fluctuation | ±10% | ||
Power consumption (W) | DC | Standard | 0.35 (With indicator light: 0.4 DIN terminal with indicator light: 0.45) |
With power saving circuit | 0.1(With indicator light) | ||
Apparent power (VA)* | AC | 110V [115V] | 0.86 (With indicator light: 0.89) [0.94 (With indicator light: 0.97)] |
220V [230V] | 1.30 (With indicator light: 1.34) [1.42 (With indicator light: 1.46)] | ||
Surge voltage suppressor | Diode (Varistor is for DIN terminal and Non-polar type.) | ||
Indicator light | LED (AC of DIN connector is neon light.) | ||
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
The advantage of the SY Series smc solenoid valve ? (Appliliance)
Normally it were used to control the air cylinder(Pneumatic cylinder) . But different with 4V Series/VF Sereis solenoid valve ,
the SY series are more energy-saving , and with the compact valve body, so save space .
Other advantage is the voltage protection circuit .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 15 work days .
The weight of the SY series valve:
SY3120 :51g SY3220 :68g SY3320 :71g SY3420 :71g SY3520 :71g
SY5120 :70g SY5220 :88g SY5320 :93g SY5420 :93g SY5520 :93g
SY7120 :101g SY7220 :120g SY7320 :128g SY7420 :128g SY7520 :128g
SY9120 :236g SY9220 :255g SY9320 :279g SY9420 :279g SY9520 :279g
Is the sample for free ?
Yes , if one sample .
Certification: ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Smc solenoid Valve, Pneumatic Smc Solenoid Valve, Pneumatic Valve, Pneumatic Solenoid, 24v solenoid valve are all for control the air direction for the air tools , air cylinders.
